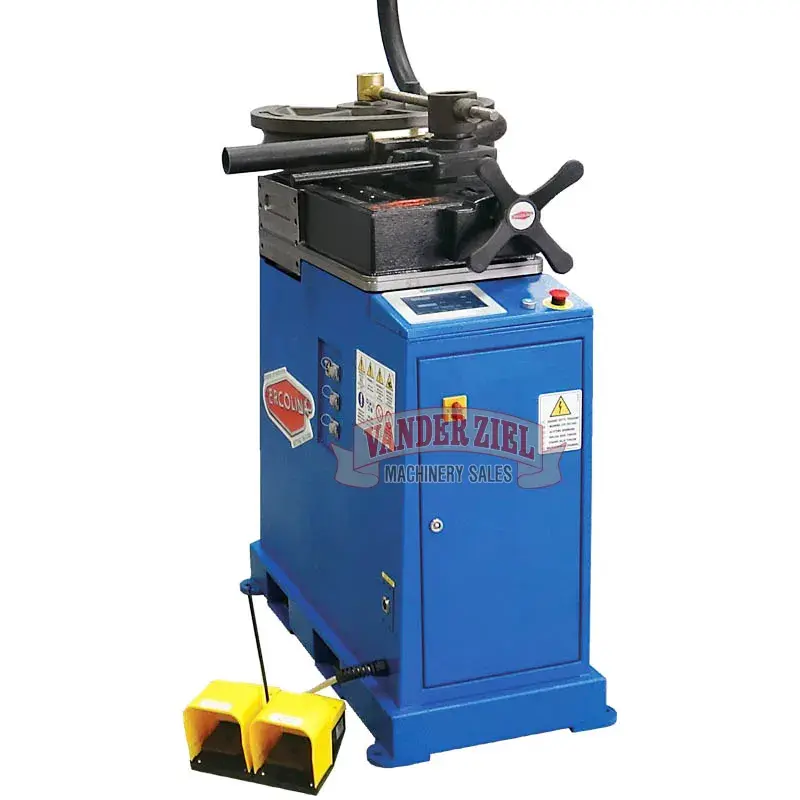

Ercolina TB80 Top Bender with 3" Tube or 2-1/2" Schedule 40 Pipe Capacity

TB80 Top Bender with 3" Tube or 2-1/2" Schedule 40 Pipe Capacity. Control offers Multiple Program Storage with Individual Bend Angle and Springback Memory, Variable Bend Speed
SKU #1425010
Ercolina's TB80 Top Bender is ideal for producing consistent quality bends in pipe, tube, squares, solids and other profiles with auto tune.
Key Features

Mild steel tube capacity 3"

Pipe capacity 2-1/2" Sch. 40 Grade B A53

Maximum CLR 16-1/2"

Bend to CLR as small as 2D

Touch screen control icon menu for easy access to auto and manual operating modes, programming (inch or metric), system diagnostics and multiple language capability

Quick-change tooling system with multiple radii available

Digital display of bend angle and bend speed

Bend any angle to 180° with independent material springback and speed compensation for each bend

Foot pedal control of bend and return functions

Swing away counterbending die vise for easy material handling

Counterbending die vise position monitored electronically for accuracy and repeatability

Heavy-duty steel gear case, right or left bend capable

No hydraulic components for quiet operation

Mandrel ready with optional accessory

Two axis positioning table for multiple and sequential bends available on special request

On screen machine diagnostics

All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.
