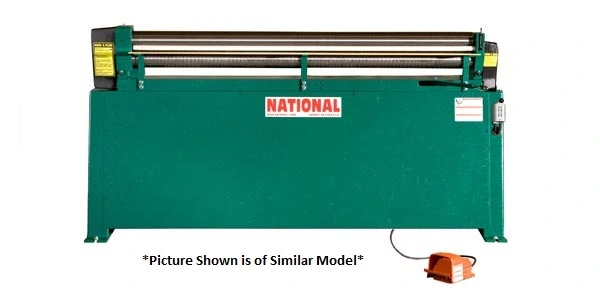

NEW NATIONAL NR-4816

National 4′ x 16 GA Power Initial Pinch Roll, Model NR-4816 – NEW

Model
NR-4816
Capacity
(Tensile Stregnth 55,000 lbs. @ rated capacity)
16 Gauge: 1.6mm
Maximum Forming Length
48 1/4”/1226mm
Diameter of Roll
3”/76mm
Minimum Forming Radius
1 1/2”/38mm
Wire Grooves (Optional)
3/8”, 1/2”, 5/8”/10mm, 13mm, 16mm
Roll Speed
18 rpm/14.13 sfpm
Motor: 110-220 Single PH
208-220-440 3 PH
1 hp
Floor Space (l x w x h)
64” x 37” x 44 1/2”
1626 x 940 x 1130mm
Shipping Weight
970 lbs/440 kgs
