NEW AKYAPAK AHS 15/08
Overview
Description

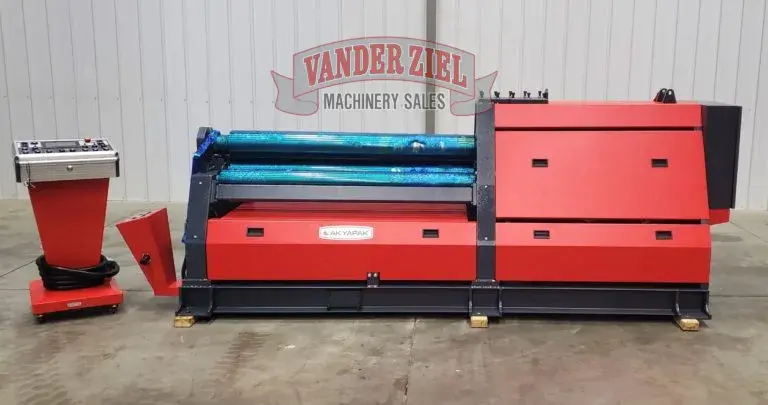

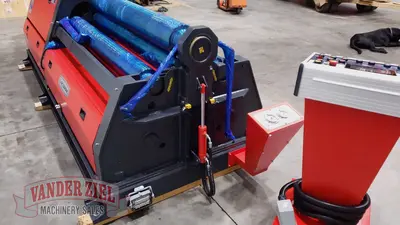

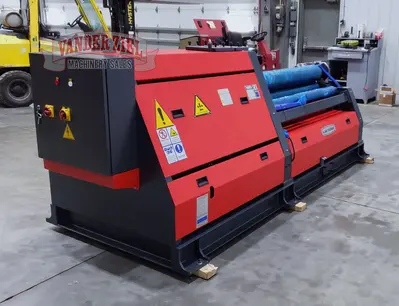

Akyapak 5′ x 3/8" Four Roll Hydraulic Plate Bending Roll, Model AHS 15/08 - NEW
Asset #17296N
460V
EQUIPPED WITH
AHS 15/08 Four-Roll Hydraulic Plate Rolling Machine,
Induction Hardened Rolls
Torsion Bar
Digital Display
Cone Bending Device
Two Speed Control
All rolls are made of special steel.
Machine body is steel construction. ( ST 52 )
All rollers mounted in bearing.
Separate control panel
Drop-end controlled from control panel in order to release easily bended metal sheet
Movement and parallelism adjustment of the rollers controlled from the control panel. (Ergonomic designed control panel which allows to control all the functions of the machine is independent from the machine.)
Central rolls are driven with hydraulic motor and reducer.
Electrical and hydraulic protection against overloads.
Hydraulic installation from world-wide known companies
Electrical installation from world-wide known companies
Suitable for "CE".
TECHNICAL SPECIFICATIONS - AHS 15/08
Working length Ft. 5'
Maximum thickness In
Pre-bending - 5/16"
Bending - 3/8"
Yield Point: 36,000 PSI
Number of rolls 4
Motor Power Hp 4
Min. diameter in - Ø TRD x 3
Top roll in - Ø 7.5"|
Pinch roll (Bottom) in - Ø 6.7"
Side roll in - Ø 5.9"
Length In 12'
Height In 3.4'
Width In 3.7'
Weight Ibs. 4,453
Included Accessories:
460 volts
OPTIONAL FEATURES
Variable speed of rotation
Material feeding table
Oil Cooler System
Central Support
Side Supports
