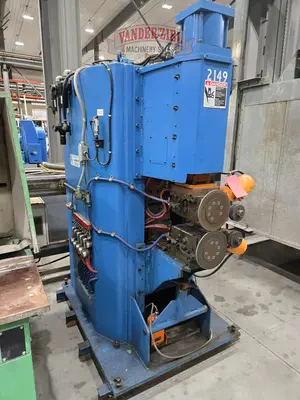

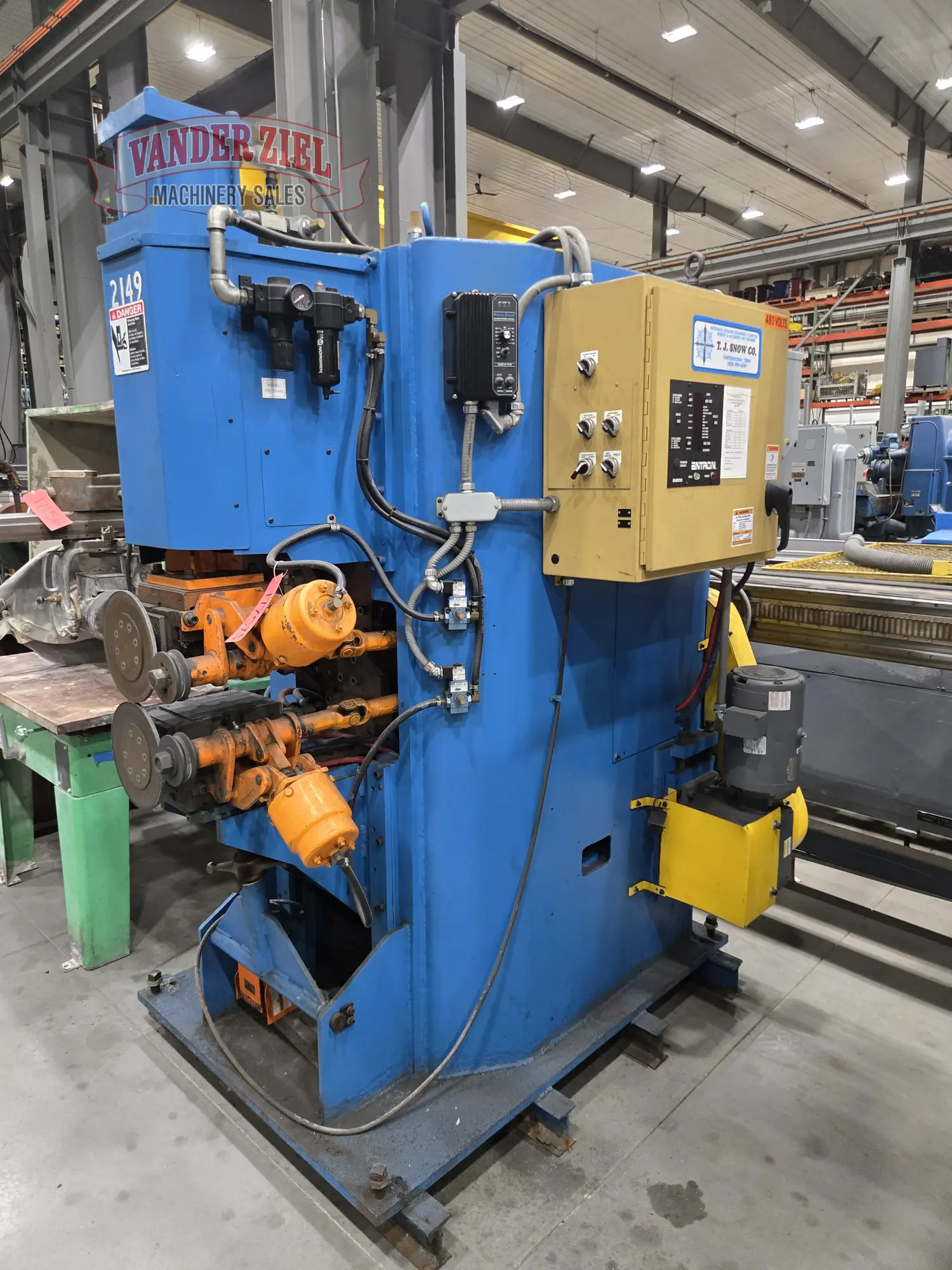

TJ Snow 300 KVA Seam Welder

TJ Snow 300 KVA Seam Welder
Asset 17759J
Serial #10UM1703

Specifications:
300 KVA at 50% Duty Cycle
Primary Voltage 480 Volts
Fuse Size 500 Amps
Secondary Volts 8.62 - 15.7
Wheel Size 9 1/4"
Cylinder sizes of (6" - 2,060 lbs. @ 80 psi) up to (12" - 9,000 lbs. @ 80 psi)
Throat Depth 19.5"
Min Water Flow 16 GPM @ 35 PSI
Control Entron EN100
Features
T. J. Snow designed and built weld heads
Oil filled silver contactor style with roller bearings and traditional wiper seal design
Internally water-cooled body and shaft
Knurl & belt drive options
Equipped with new microprocessor type programmable weld control
Preliminary Specifications - Subject to Verification
