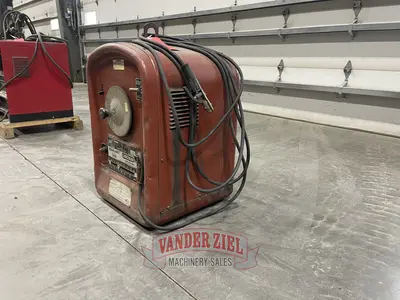

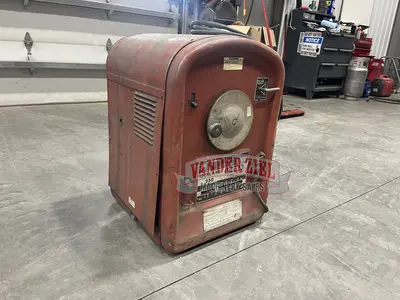

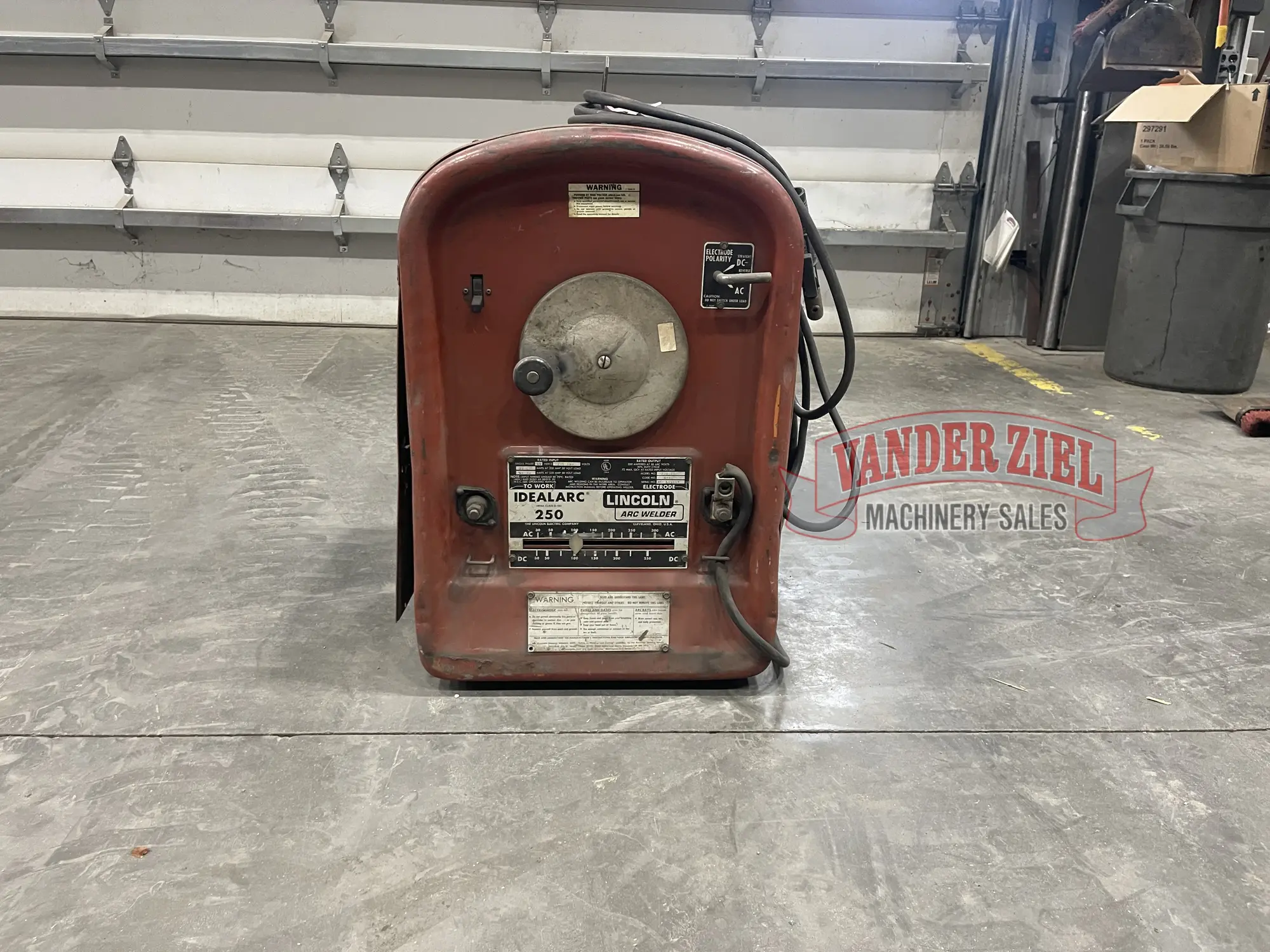

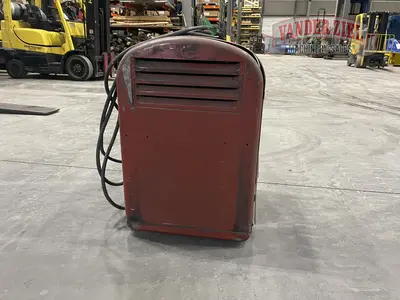

Lincoln Idealarc 250 Welder

Lincoln Idealarc 250 Welder
Asset 17479
Lincoln Electric IDEALARC® 250 -

Specifications

Manufacturer:

The Lincoln Electric Company, Cleveland, Ohio, U.S.A.
Model Number:

250-250
Code Number:

8445C
Serial Number:

AC-515609
NEMA Classification:

Class II (30)

Rated Output

250 Amperes at 30 Arc Volts

30% Duty Cycle

Open‑Circuit Voltage (OCV):

72 V max at rated input voltage

Rated Input (Single‑Phase, 60 Hz)

Input Voltage Range:

230 - 460 V
Input Current Requirements:

Output ConditionRequired Input Amperage
200 A @ 30 V load50-25 A (depending on input voltage)
250 A @ 30 V load66-33 A (depending on input voltage)

Input Wiring Requirement:

Wiring must be 75°C rated minimum

Must be sized according to NEC (as noted on label)

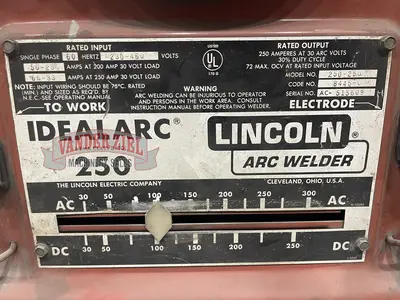

Front Panel Output Scale

(From the large AC/DC scale shown on the machine face)
AC Output Range:

Marked from ~30 A to 300 A

DC Output Range:

Marked from ~30 A to 250 A
