Serial # 3A-1LFN1IB

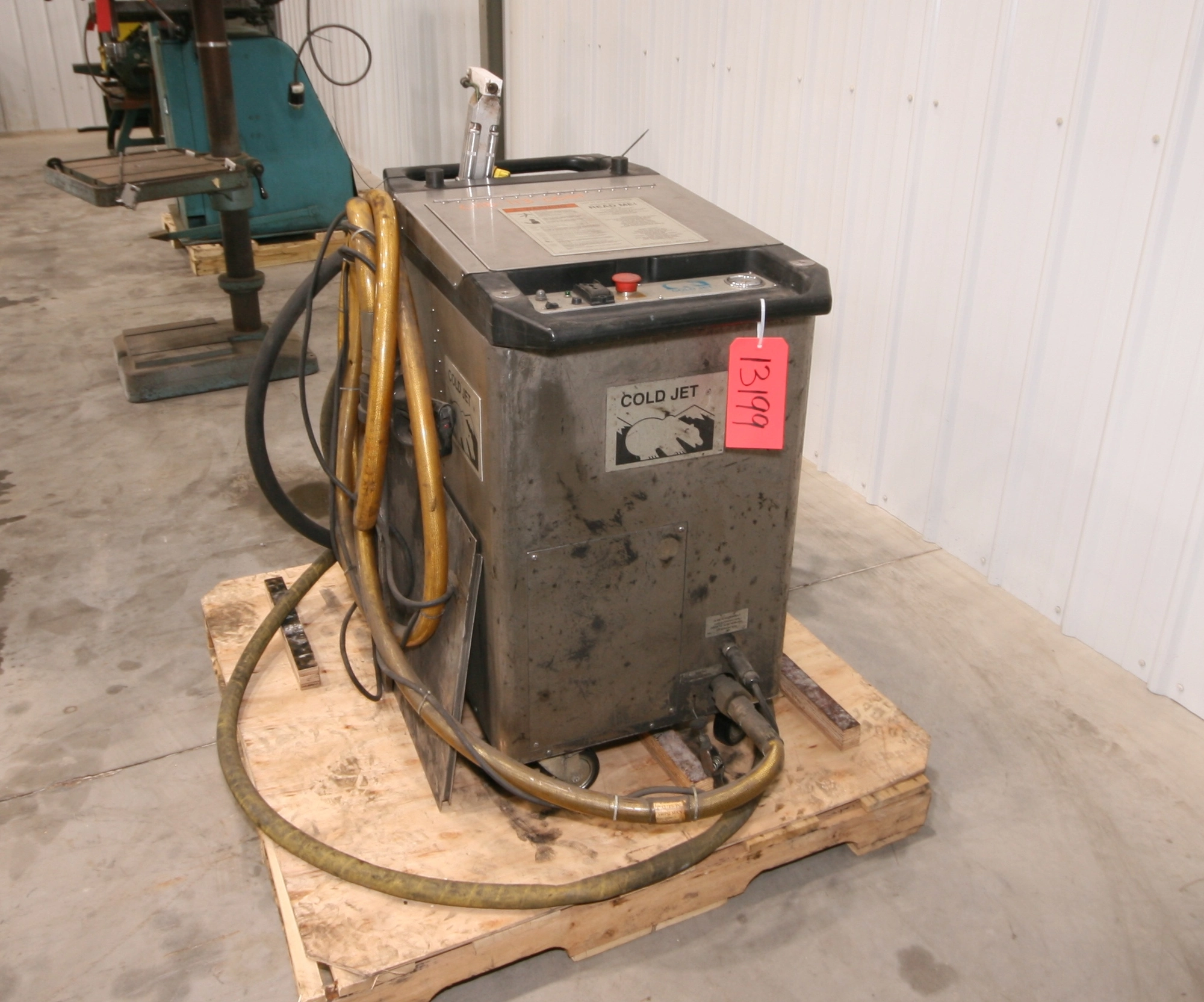

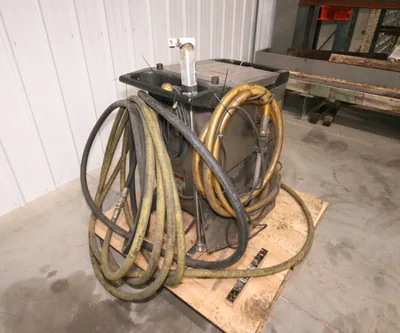

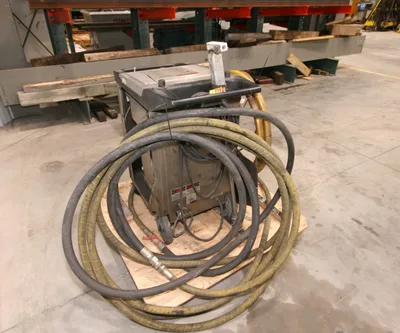

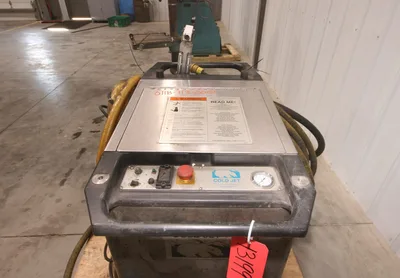

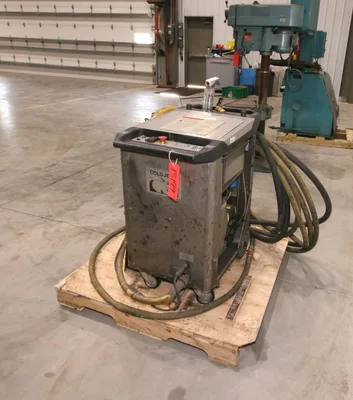

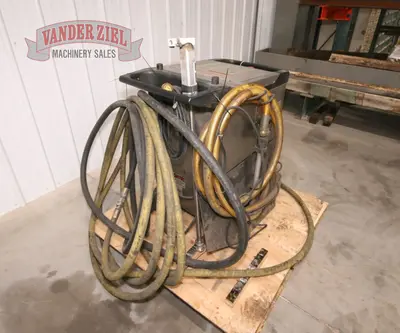

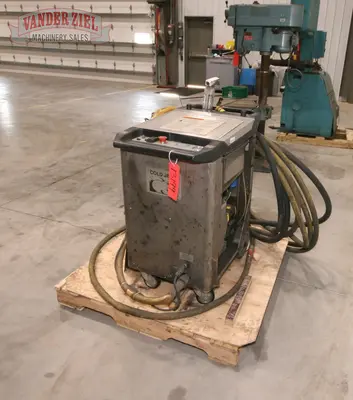

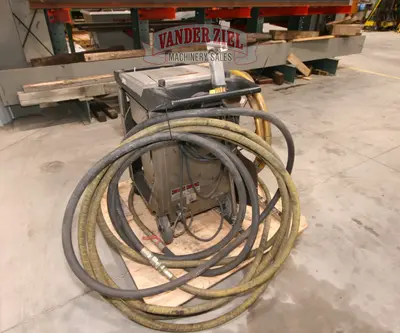

RDS 500 Cub Specifications:
Machine Weight – 250 lbs. (114 kg.)
Hopper Pellet Capacity – 65 lbs. (30 kg.)
Pellet Mass Delivery Rate – 0 to 410 lbs. per hour (0 to 3.1 kg. per minute)
Power Requirements – 100 Volts AC 1 ph (50/60 Hz) 15 Amps
120 Volts AC 1 ph (50/60 Hz) 15 Amps
220 Volts AC 1 ph (50/60 Hz) 8 Amps
Motor, Feeder Drive – .75 Hp. (.66 kw) permanent magnet DC, 1800 RPM
Control System – Relay & Timer Logic – 24 Volt DC Control Voltage
Lubrication, Feeder – Mobil SHC-624 Synthetic Oil
Air Pressure, Pellet Blasting – 60 to 120 psig
(80 PSI at the blast guage is optimum)
Air Flow, Pellet Blasting – 120 to 200 scfm
Short Circuit Interrupting Capacity: 300A
MFG Date 11/2000
Preliminary Specifications – Subject to verification
