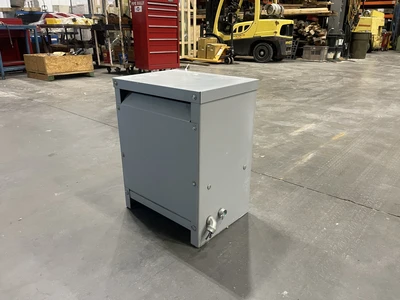

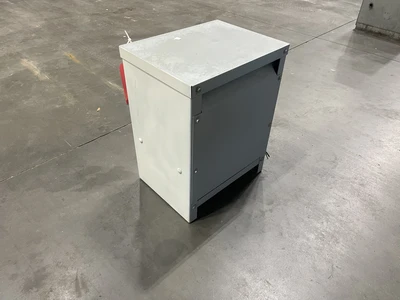

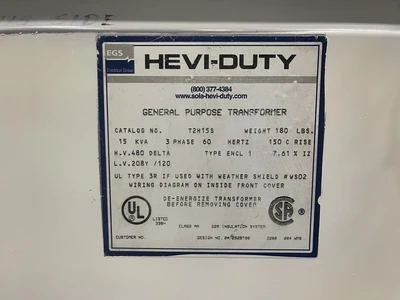

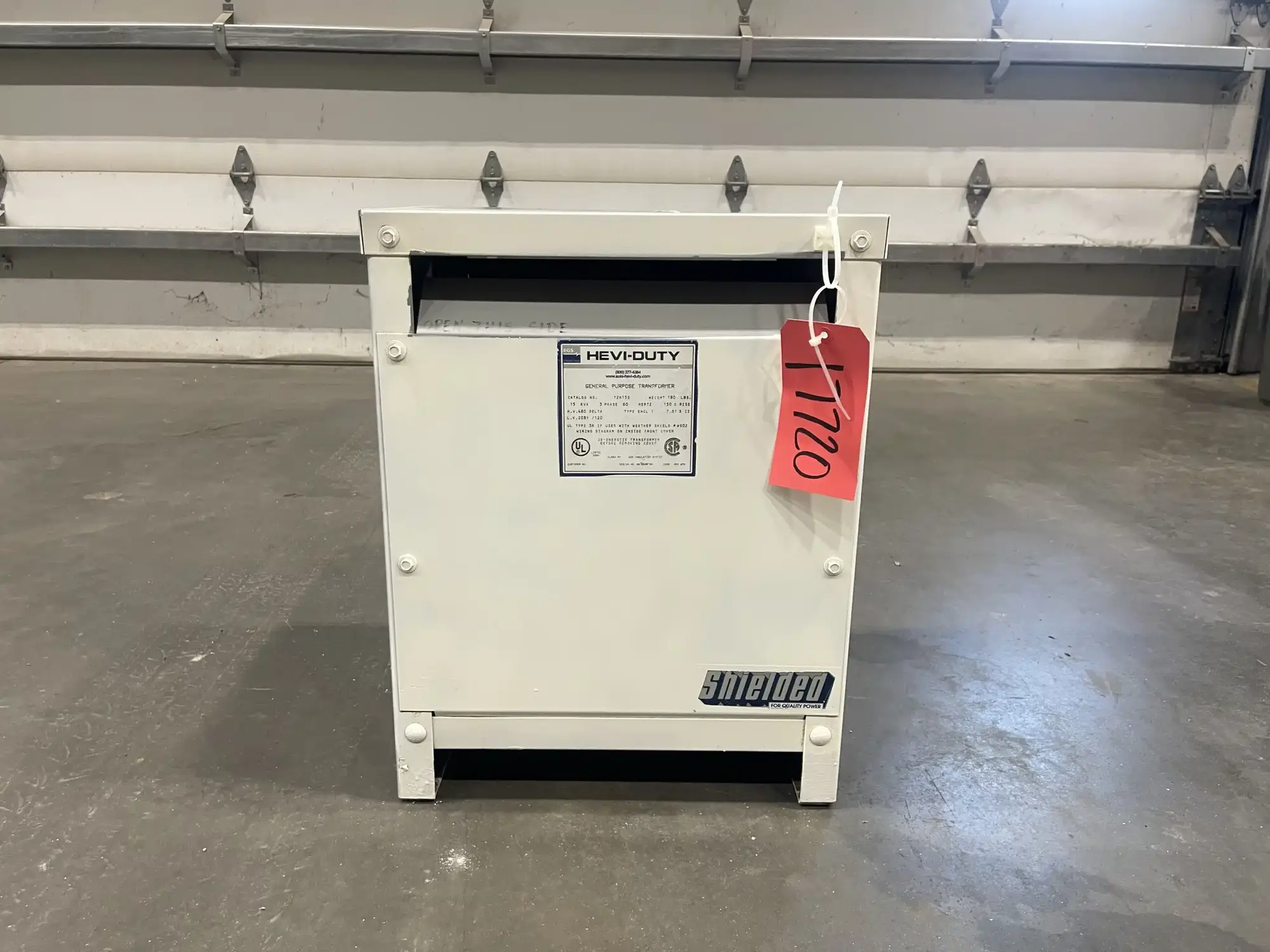

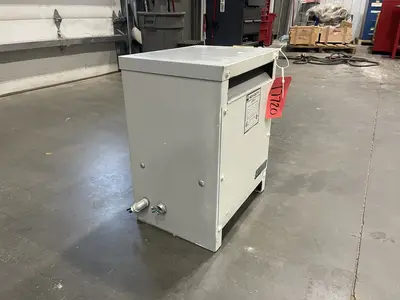

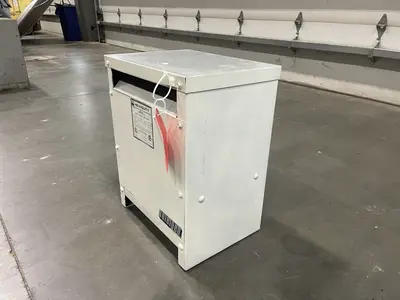

Transformer Specifications – HEVI‑DUTY (EGS Electrical Group)
Type: General Purpose Transformer
Catalog No.: T2H15S
kVA Rating: 15 kVA
Phase: 3‑phase
Frequency: 60 Hz
Temperature Rise: 150°C rise
Weight: 180 lbs
Voltage Ratings
High Voltage (Primary):
480 V Delta
Low Voltage (Secondary):
208Y / 120 V (Wye)
Construction & Ratings
Enclosure Type: Type 1 (indoor)
UL Type 3R when used with Weather Shield #WS02
Impedance: 7.61% IZ
Insulation System: 220°C (Class AA)
Certifications
UL Listed (338H)
CSA Certified
Additional Information
Customer No.: (not filled in)
Design No.: 04‑252B700
WMS: 2200 004 WMS
Website / Support: www.sola‑hevi‑duty.com
Phone: (800) 377‑4384
Warning: “De‑energize transformer before removing cover.”
Wiring Diagram: Located inside front cover
