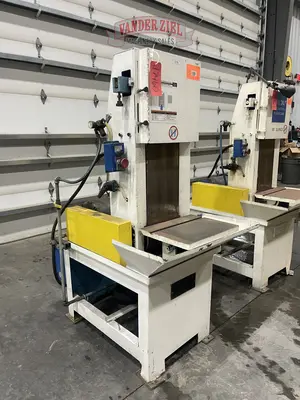

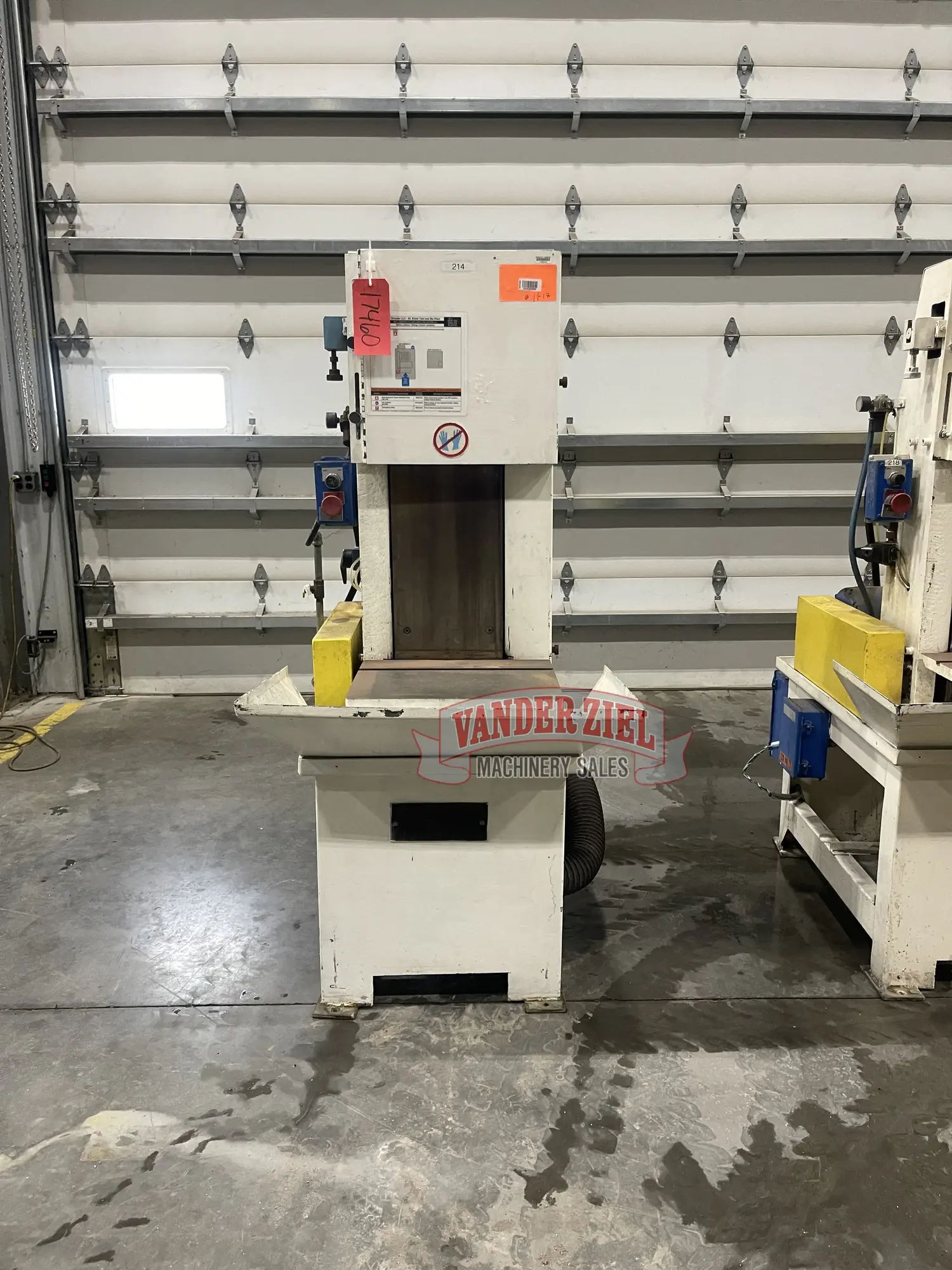

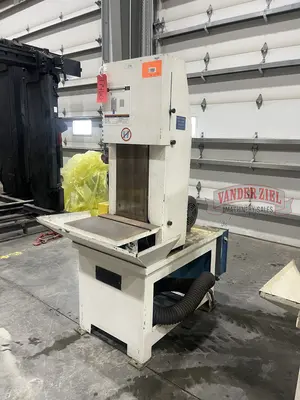

Kalamazoo 10" x 90" Belt Sander

Kalamazoo 10" x 90" Belt Sander
Asset # 17461
Machine Features
Motor specifications: 10 HP 3PH
24V at the on/off switch.
Sanding belt jog switch.
Steel 10-gallon coolant tank and pump with splash bar.
Belt size: 10"x 90"
Belt SFPM: 3500 SFPM
Steel 10" x 29" platen that's reversible and replaceable.
Work Surface: 10"x 29"
Cast iron work table with fixture slot that's removable. The table tilts 45° down and 15° up.
Air Tension on the sanding belt. There must be constant air pressure to track the belt (0-55 PSI required).
V-belt driven
Shipping dimensions: L 48" x W 53" x H 80"
Belt sander shipping weight: 1600 lbs.
