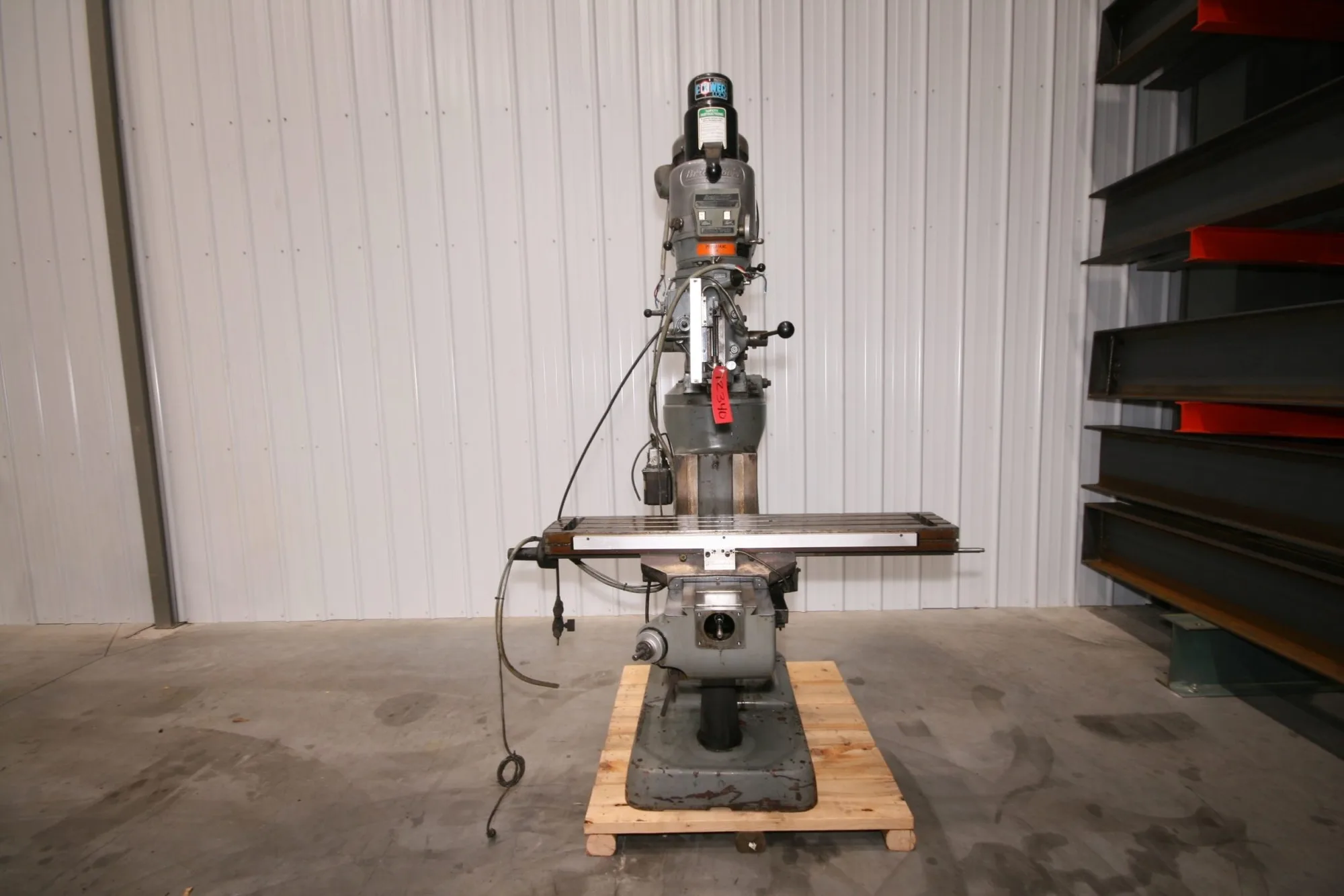

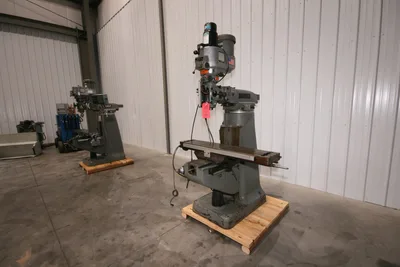

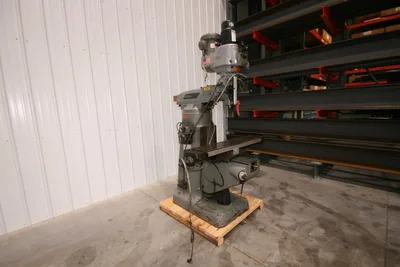

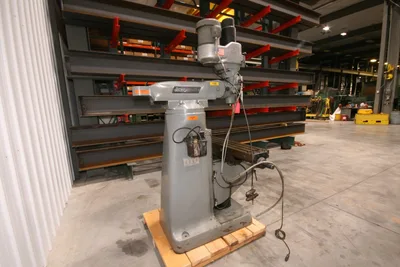

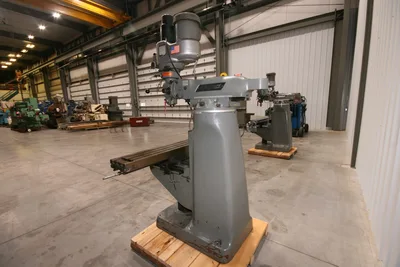

Bridgeport Series I Vertical Knee Mill, 9″ x 48″ Table

Specifications:
Table travel (X-Axis)     36”
Saddle Travel (Y-Axis)     12”
Quill Travel     5”
Knee Travel (Z-Axis)     16”
Ram Travel     12”
Throat Distance (Min.)     18.75”
Throat Distance (Max.)     6.75”
Standard    49 x 9”
T Slot center distance    3 @ 2.5” centers
T-Slot Size    0.625”
Height above Floor (Max.)    47.25”
Weight of Work piece (Max.)    750 lbs.
Power Rating Continuous    2 HP
Tooling    R-8 Collets Capacity
Power Quill Feed 3    3/4” Diameter
Manual Drilling Capacity    3/4” Mild Steel
Boring Range    6” Mild Steel
Spindle Diameter    1.875 in
Quill Diameter    3.375”Speed Range
High (Infinitely Variable)    500-4200 rpm
Low    60 – 500 rpm
Power Quill Feed    0.0015”/rev
Manual Adjust    0.003”/rev
    0.006”/rev
Estimated Floor Space    8.2’ x 5.3’
Estimated Height    7.04’
Estimated Weight    1950 lbs.
Mill is equipped with Anilam Scales on X, Y, and Z but no readout box, and power drawbar.
Preliminary Specifications – Subject to Verification
