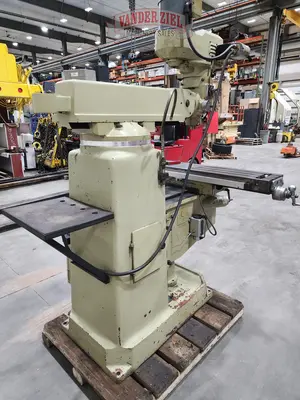

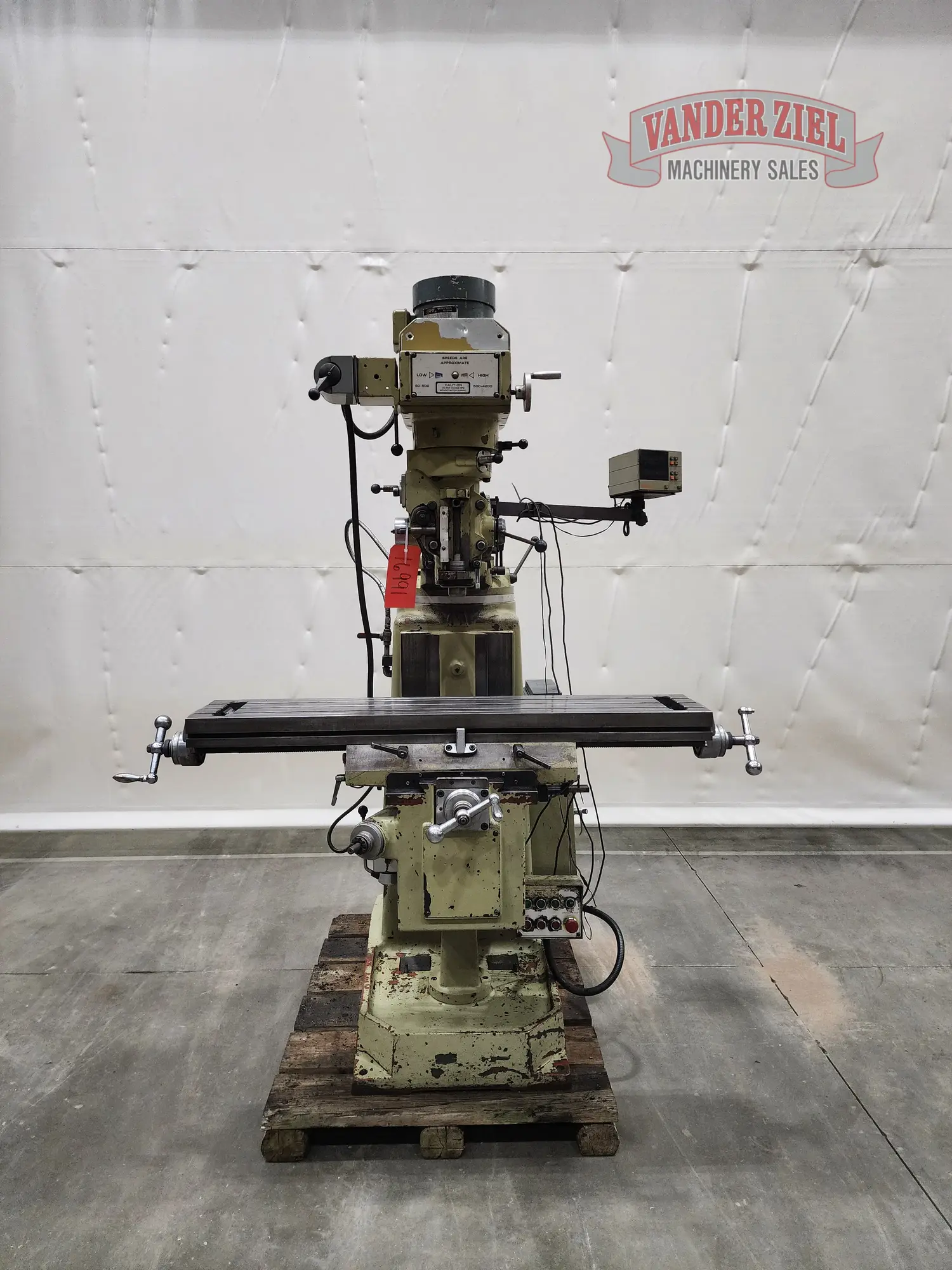

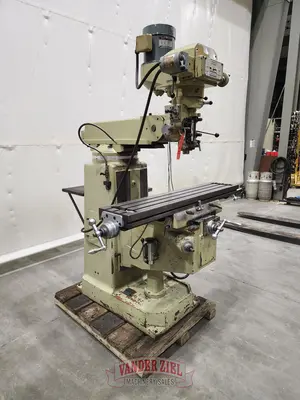

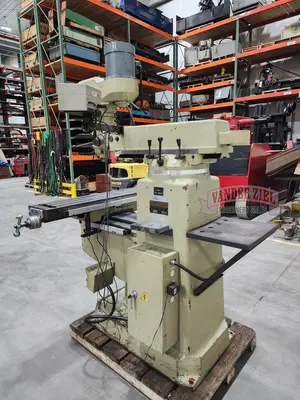

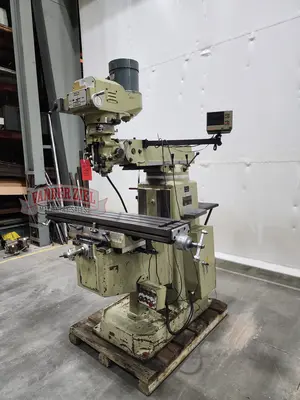

Wells Index Vertical Knee Mill, Model 1050, 10" x 50" Table, 3 HP

Wells Index Vertical Knee Mill, Model 1050, 10" x 50" Table, 3 HP
Asset # 16991

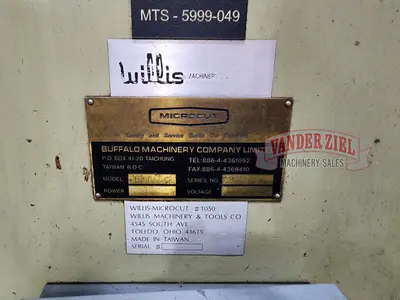

Serial # 05808

Specifications:
Table Size 10 " × 50 "
Travel - Longitudinal 36 "
Travel - Cross 16 "
Travel - Vertical (Knee) 16 "
Ram Travel 24 "
Ram Swivel 360°
Spindle Taper Standard R‑8; optional 30 NMTB
Spindle Speeds 60-4,200 RPM variable
Spindle Power 3 HP continuous duty
Quill Feed Rates 0.00032", 0.0017", 0.0053" per rev
Spindle Nose → Table Min 2", Max 18"
Center Spindle → Column Min 3", Max 27"
Max Work Weight 750 lbs on table
Machine Weight ~2,800 lbs
Preliminary Specifications - Subject to Verification
