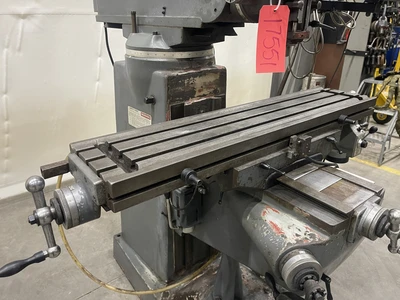

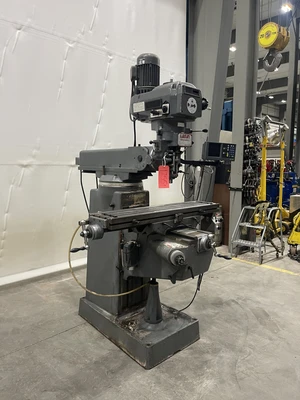

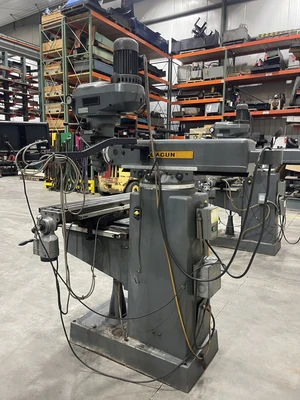

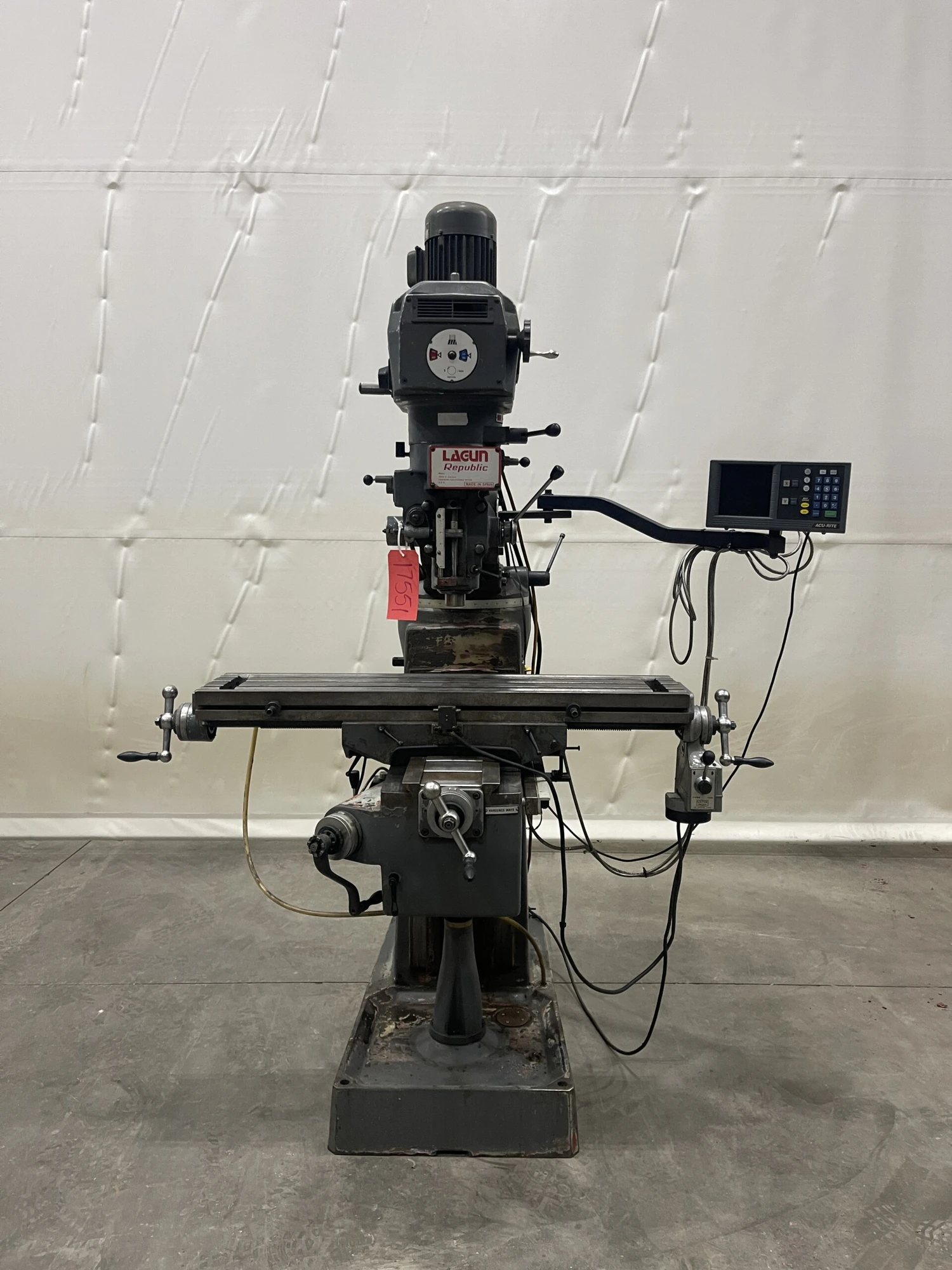

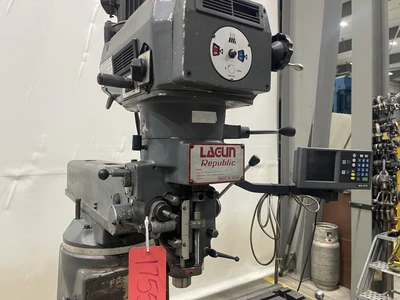

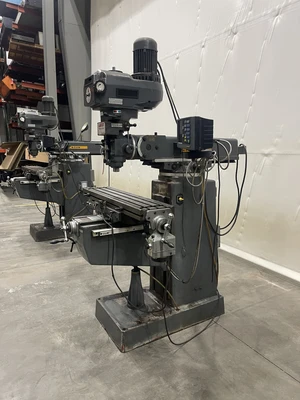

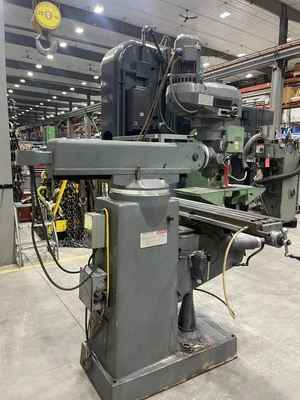

Lagun 10″ x 44″ Table Vertical Knee Mill, Model FTV-1, 3 HP

Specifications:
Table Size 10″ x 44″
Longitudinal Travel 30″
Cross Travel 16″
Vertical Knee Travel 16″
Ram Travel 22 3/16″
Main Motor 3 HP
Spindle Speeds 55- 4250 RPM
Power Feed to Quill per Rev. .003″ -.0015″-.006″
Spindle Taper R8
Quill Diameter 3 3/8″
Quill Travel 5″
Knee Width 11 1/2″
Knee to Column Bearing Length 18″
Saddle & Table Bearing Length 20″
Ram Turret and Bearing Length 19″
Total Ram Length 36″
Workpiece Capacity 36″
Approximate Machine Weight 2,750 lbs.

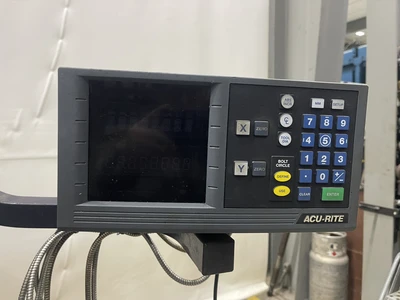

Mill is equipped with Servo power feed on X and Acu-Rite 2 Axis DRO.
Preliminary Specifications – Subject to Verification
