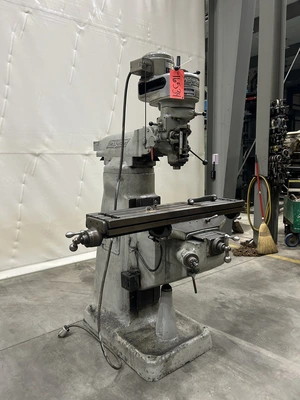

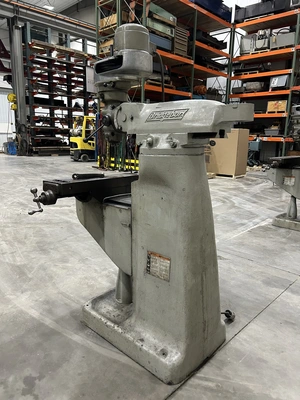

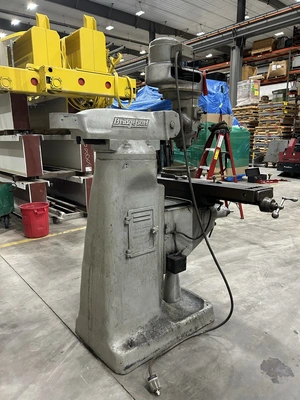

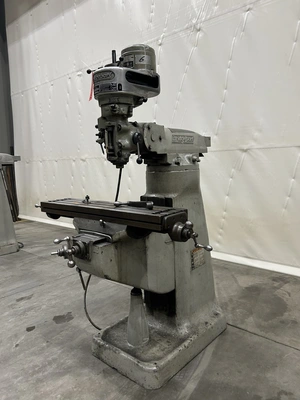

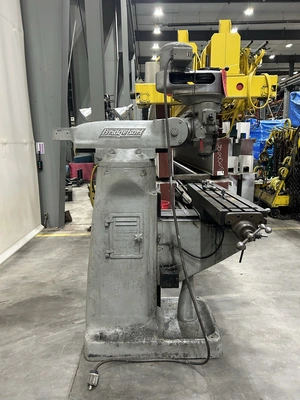

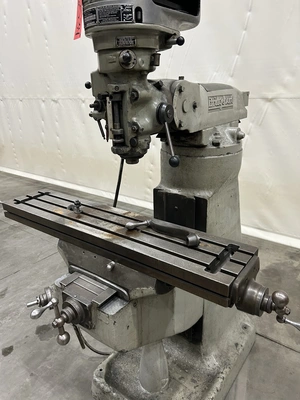

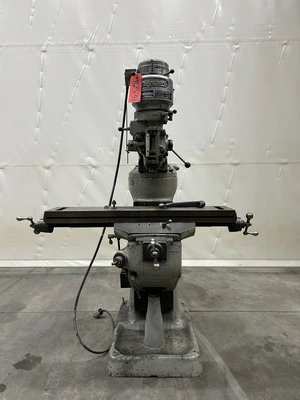

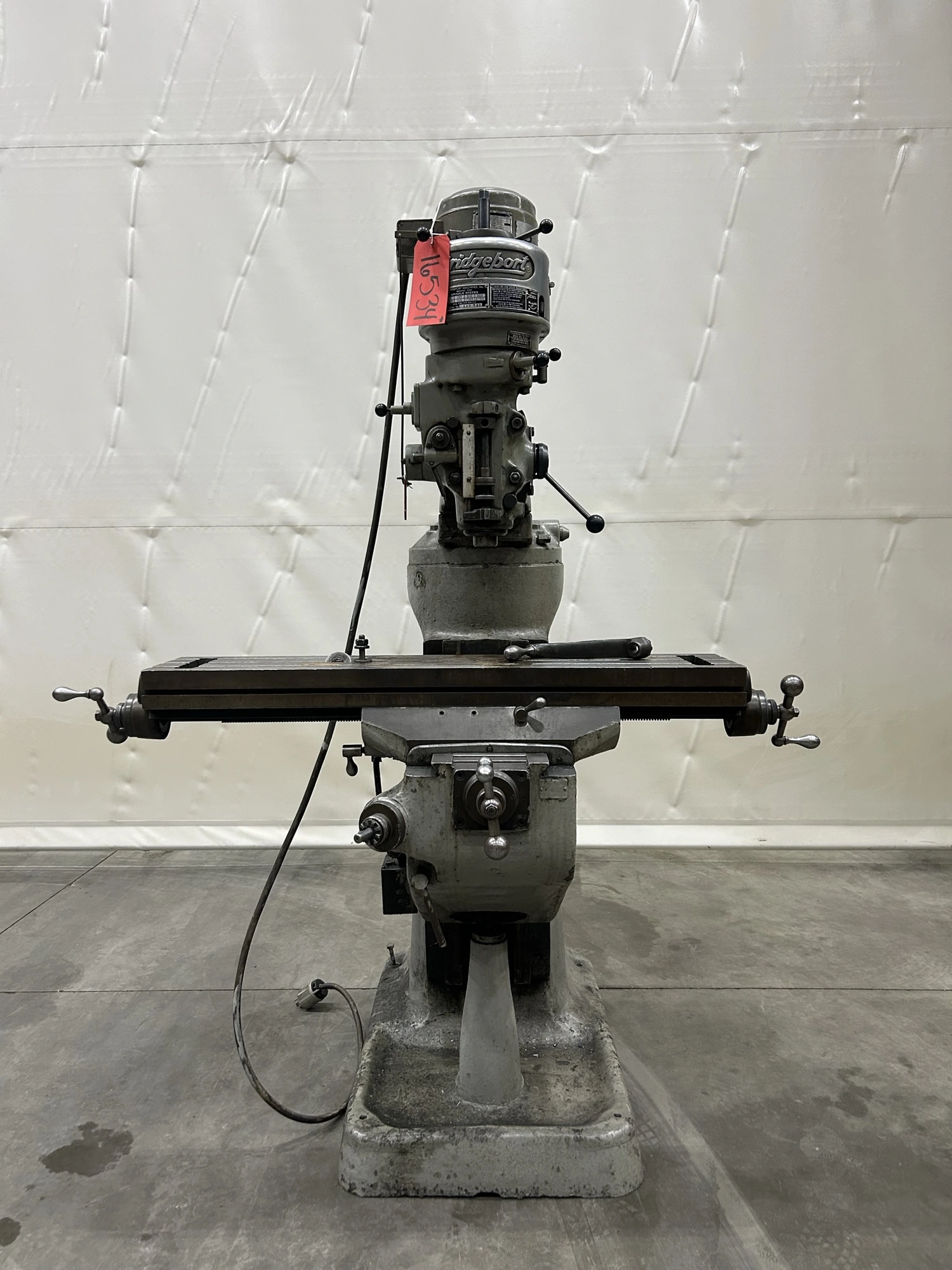

Bridgeport Step Pulley Vertical Knee Mill, 9” x 42” Table, 1 HP

Currently Priced As-Is
Specifications:
Table Size 9” x 42”
Longitudinal Table Travel 30”
Cross Travel 9”
Vertical Travel of Knee 16”
Spindle to Table Distance, Min – Max 0 – 18.5”
Spindle to Column Distance, Min – Max. 0 – 12”
Spindle to Column Distance, Head at 90 6.75 – 18.75”
Spindle Speeds (8) 80-2720 RPM
Spindle Taper R8
Collet Capacity ¾
Quill Travel 5”
Approximate Dimensions 70” x 60”
Approximate Height 78”
Mill is equipped with a vise.
Preliminary Specifications – Subject to Verification
