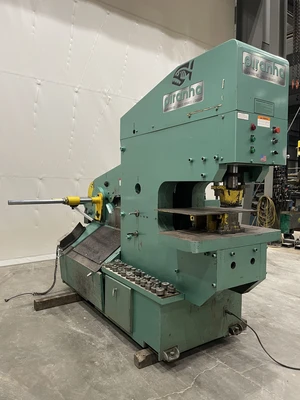

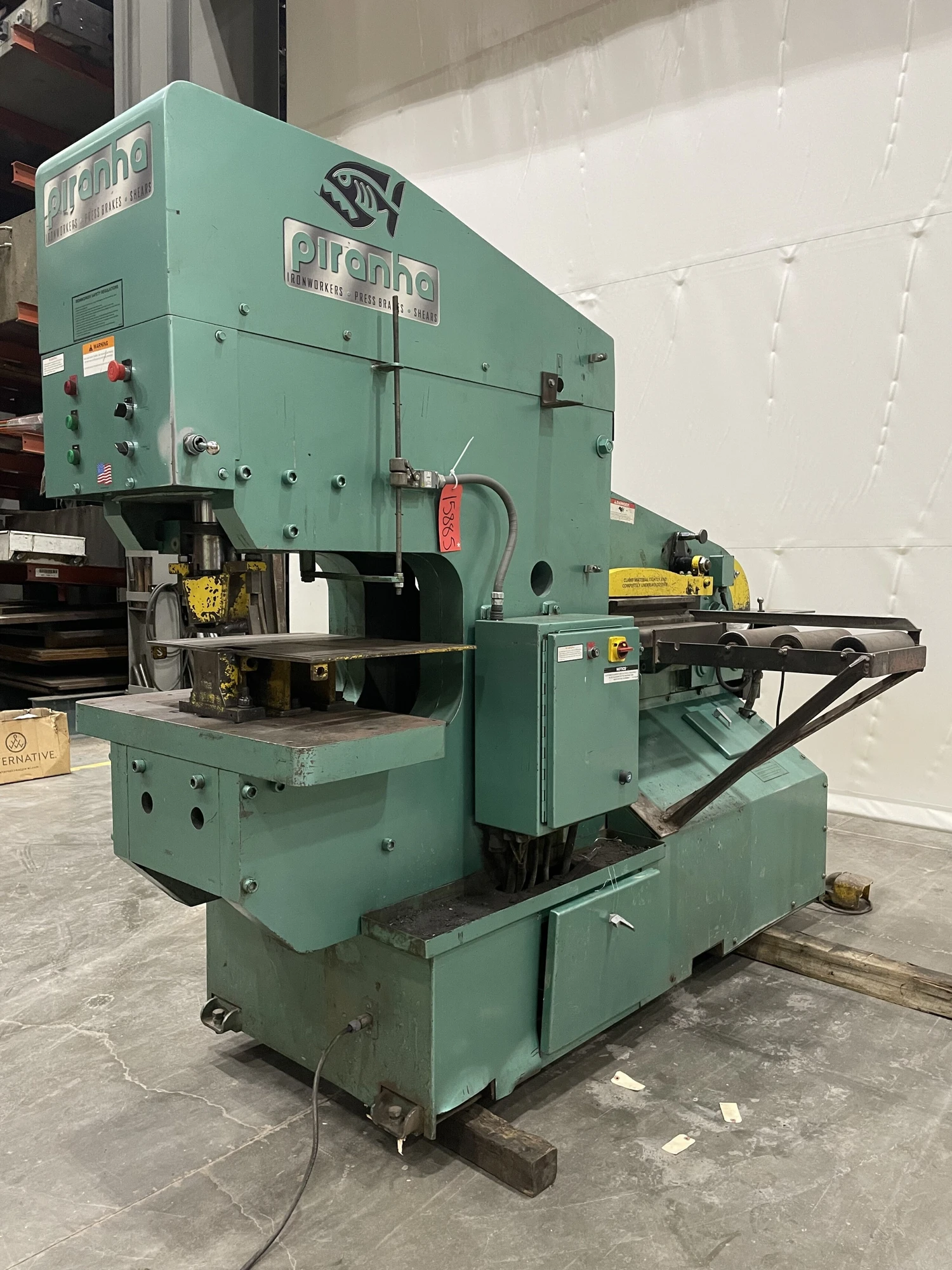

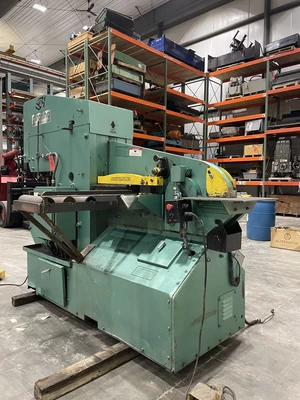

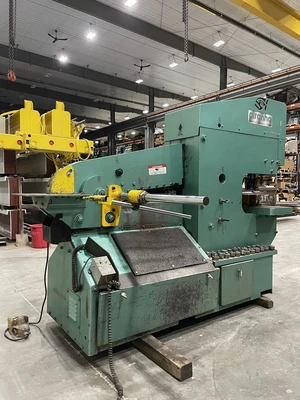

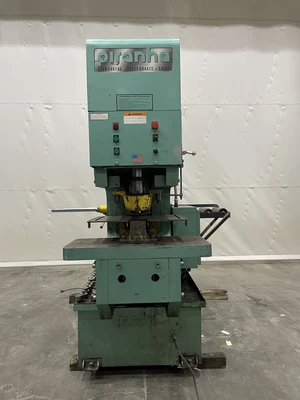

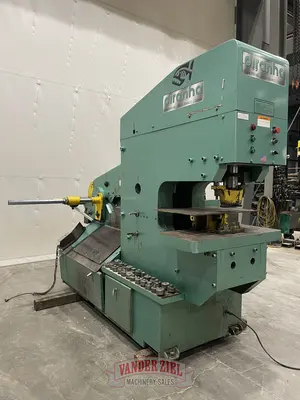

Piranha Model PII-110, 110-Ton Dual Operator Hydraulic Ironworker

Specifications:
Throat Depth 20.5"
Open Height 14"
Closed Height w/o Die Block 7 3/4"
Stroke Length 7"
Platen Table Size 16" x 36"

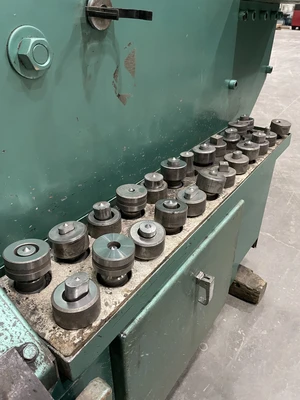

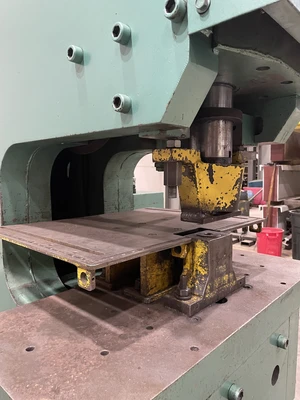

Punch
Max Material 110 Tons
Max. Hole (Special Tooling) 1 7/16", 1", 5" - 1/4"

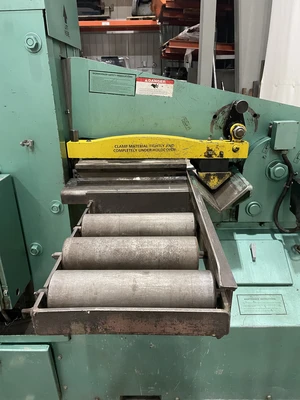

Plate Shear 18" Long
Plate Shear 1"x12", 3./4" x18"
Angle Shear, with Special Blade 5"x5"x 1/2"
Bar Shear, Round 1/2" - 2"
Bar Shear, Square 1/2" - 1 3/8"
Coper Notcher (Tons, Max) 75, 3.5"x5"x3/8"
Bending Attach (Optional Length) 18", 24", 36", 48"
Punch End, Strokes per Minute 25 @ 1"
Work Station Approx. Height 44"
Hydraulics 12.5 GPM
Fluid Capacity 40
Motor 15 HP, 3PH
Dimensions 38" x 112"
Height 85"
Weight 10,000 lbs.
Preliminary Specifications - Subject to Verification
