USED 2016 MARVEL MANUFACTURING MSIW66S

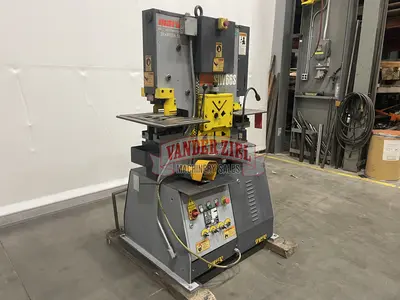

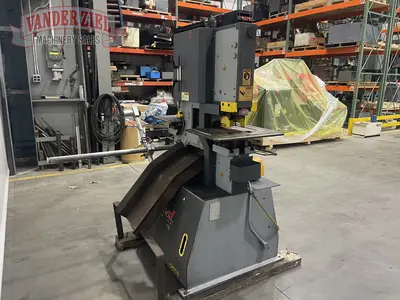

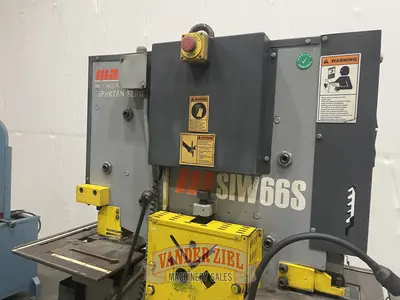

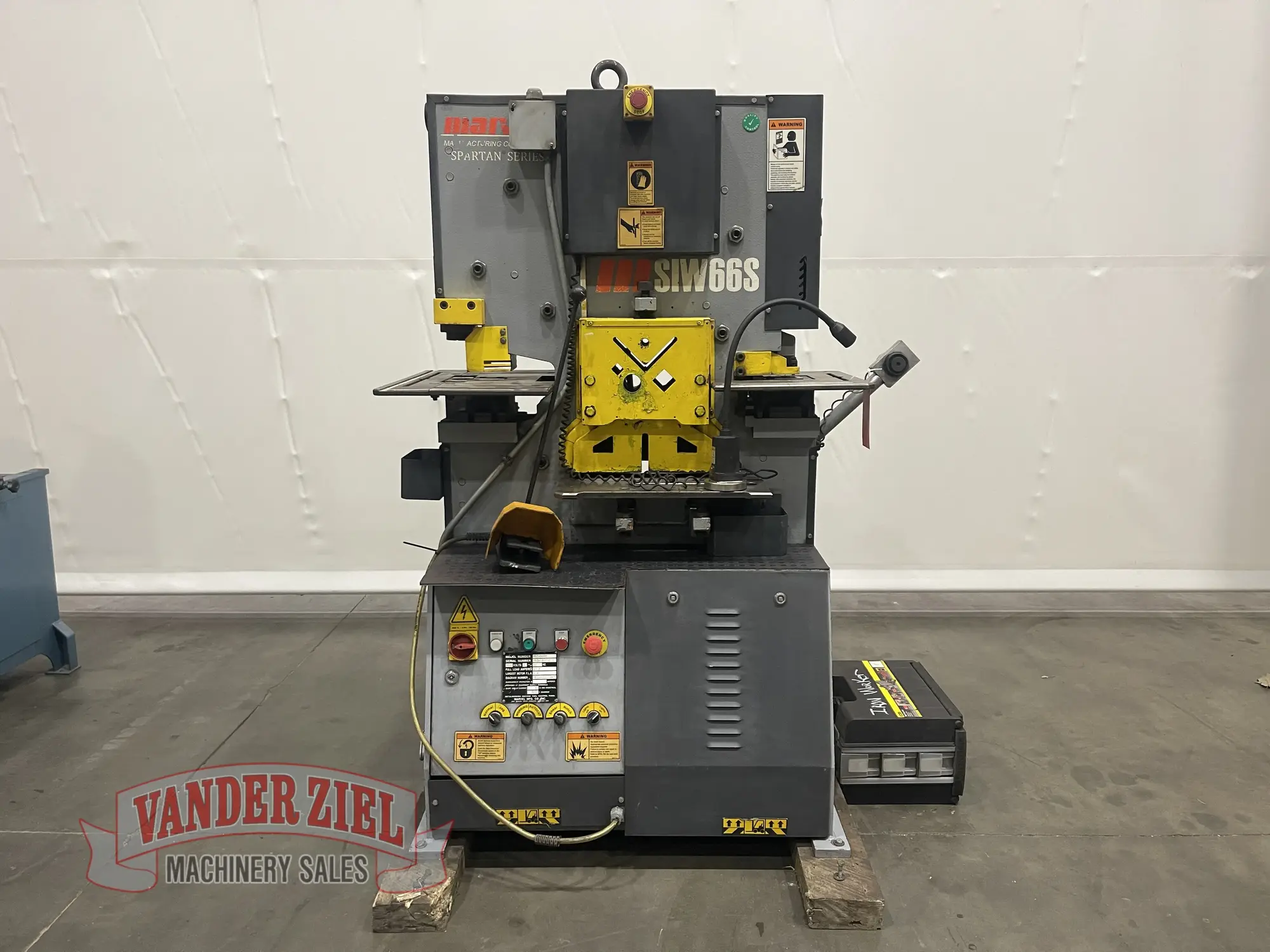

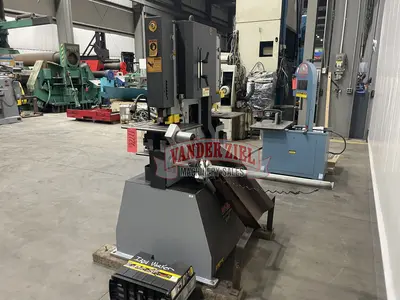

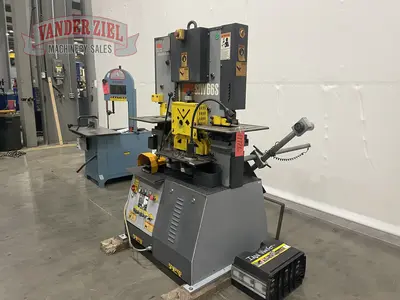

Marvel 66 Ton Heavy Duty Ironworker, Model MSIW66S
Asset # 17726

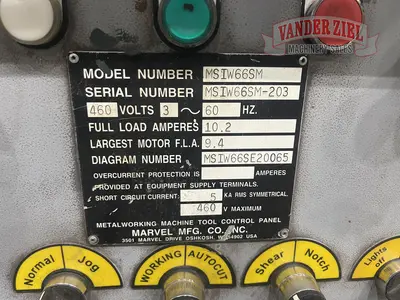

Serial #MSIW66SM-203
Capacities & Specifications Rated on 65,000 PSI Tensile
PUNCHING
Punch Pressure: 66 tons.
Punch Holder and Jog Mode.

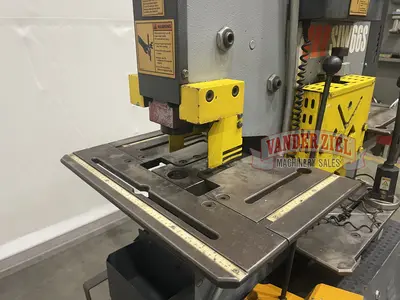

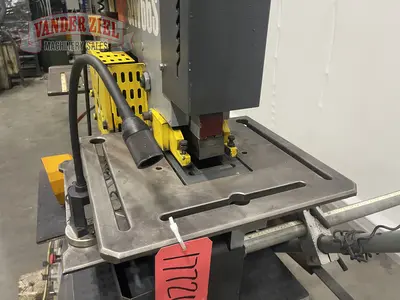

Punch Work Table: Includes back gauge and adjustable stops.
Adjustable See-Through Punch Stripper: For fast and easy setup. With electronic safety interlock.
Die Holder: Adjustable for quick punch and die alignment.

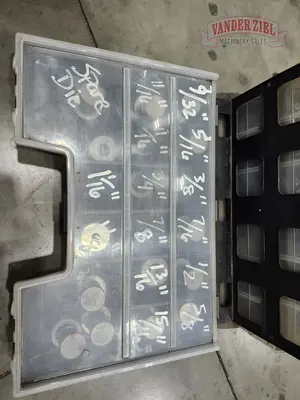

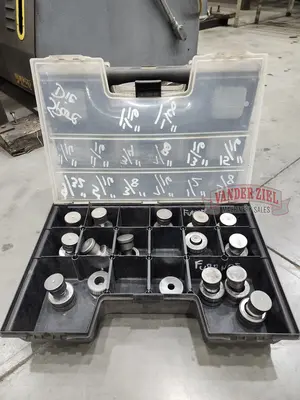

Standard Tooling: 1-1/4" in 5/8" material.
Throat Depth: 9-7/16".
Stroke Length: 1-9/16".
Cycles per Minute in 9/16": 22.
Punching Station Work Height: 41-5/16".
FLAT BAR SHEARING
Flat Bar Shear Capacity: 12" in 9/16".
Lower Blade: Four (4) usable edges.
Support Table: Includes guides for accurate positioning and indicator lines at 30, 45 and 90 degrees left and right.
Upper Shear Blade: Provides for minimum distortion.
Blade Length: 13-3/4".
Flat Bar Shear Work Height: 32-9/16".
ANGLE SHEARING
Maximum Capacity - 90 degrees: 4" x 4" in 7/16".
Shearing with no material loss and minimum deformity.
Shear Blades: Four (4) usable edges.
Angle Shear Work Height: 45-1/2".
BAR SHEARING
Max. Round Bar Capacity: 1-1/2".
Max. Square Bar Capacity: 1-3/8" x 1-3/8".
Four Cavity Round and Square Bar Shear Sizes: Round - 1/8", 1 1/2"; Square - 5/8", 1 3/8".
Channel Shear Max. (optional): 3".
H-Beam Shear Max. (optional): 3".
Bar Shear Work Height: 45-1/2".
NOTCHING
Rectangular Notcher: 2" x 3-1/2" in 5/16"
Cover equipped with electronic safety lock.
Gauge table with stops.
Notcher Work Height: 41-9/16"
Magnetic Base Work Light
Scrap Boxes at Punching and Notching Stations
Adjustable Back Gauge- Electric (3')
Adjustable Stroke Depth at Punch Station
Full-Control Foot Pedals
Two (2) Piece Gauging Table at Punch Station
Keyed Punch Holder for Shaped Tooling
Standard Voltage 230/460 Volt, 3 Phase, 60Hz.
Machine Shipping Weight: 2,900 lbs.
Machine Dimensions: 47" L x 39" W 69" H
