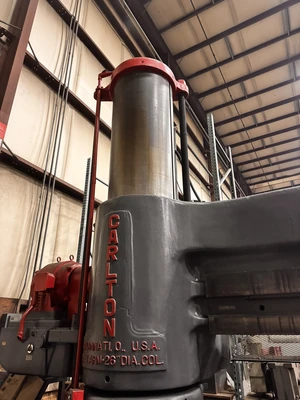

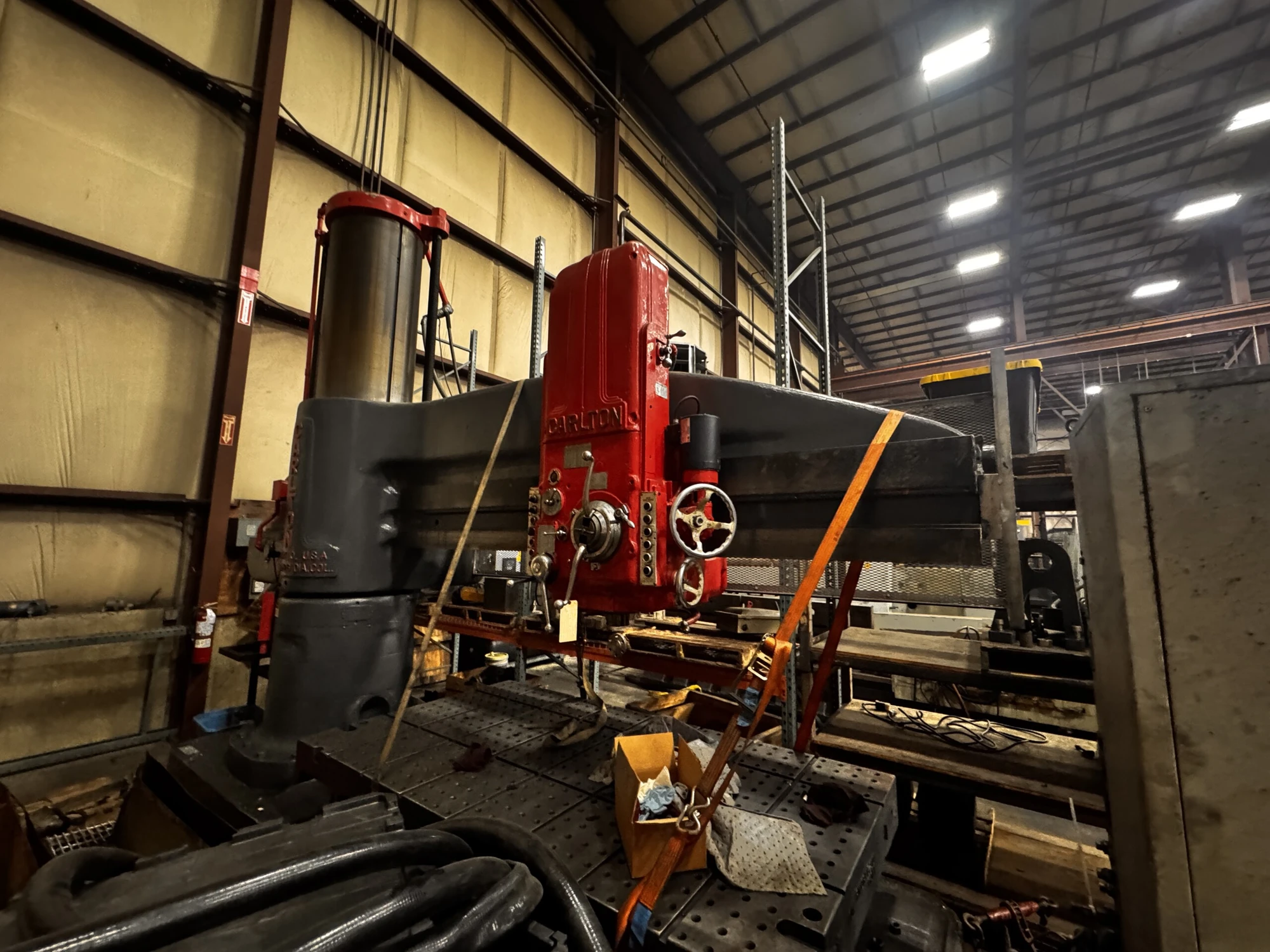

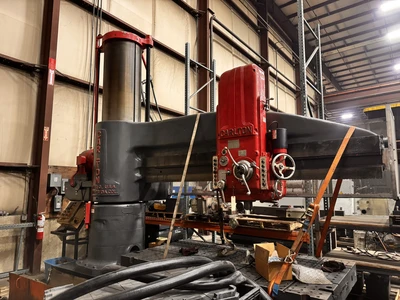

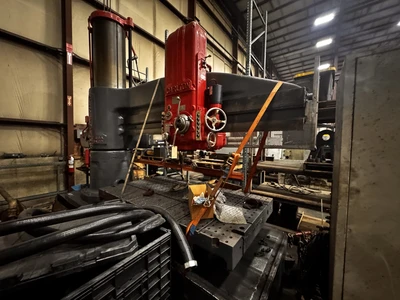

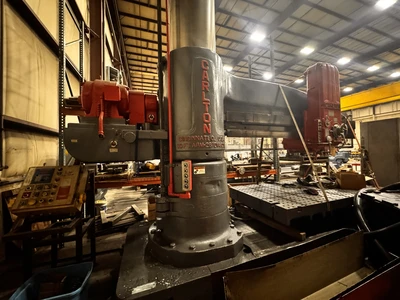

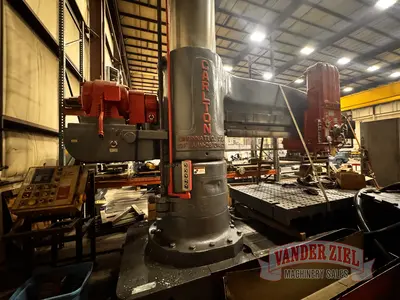

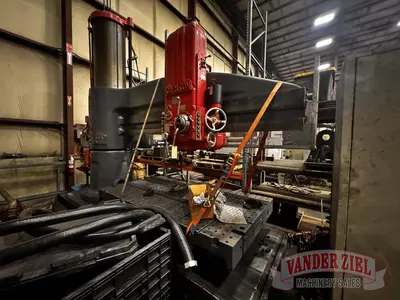

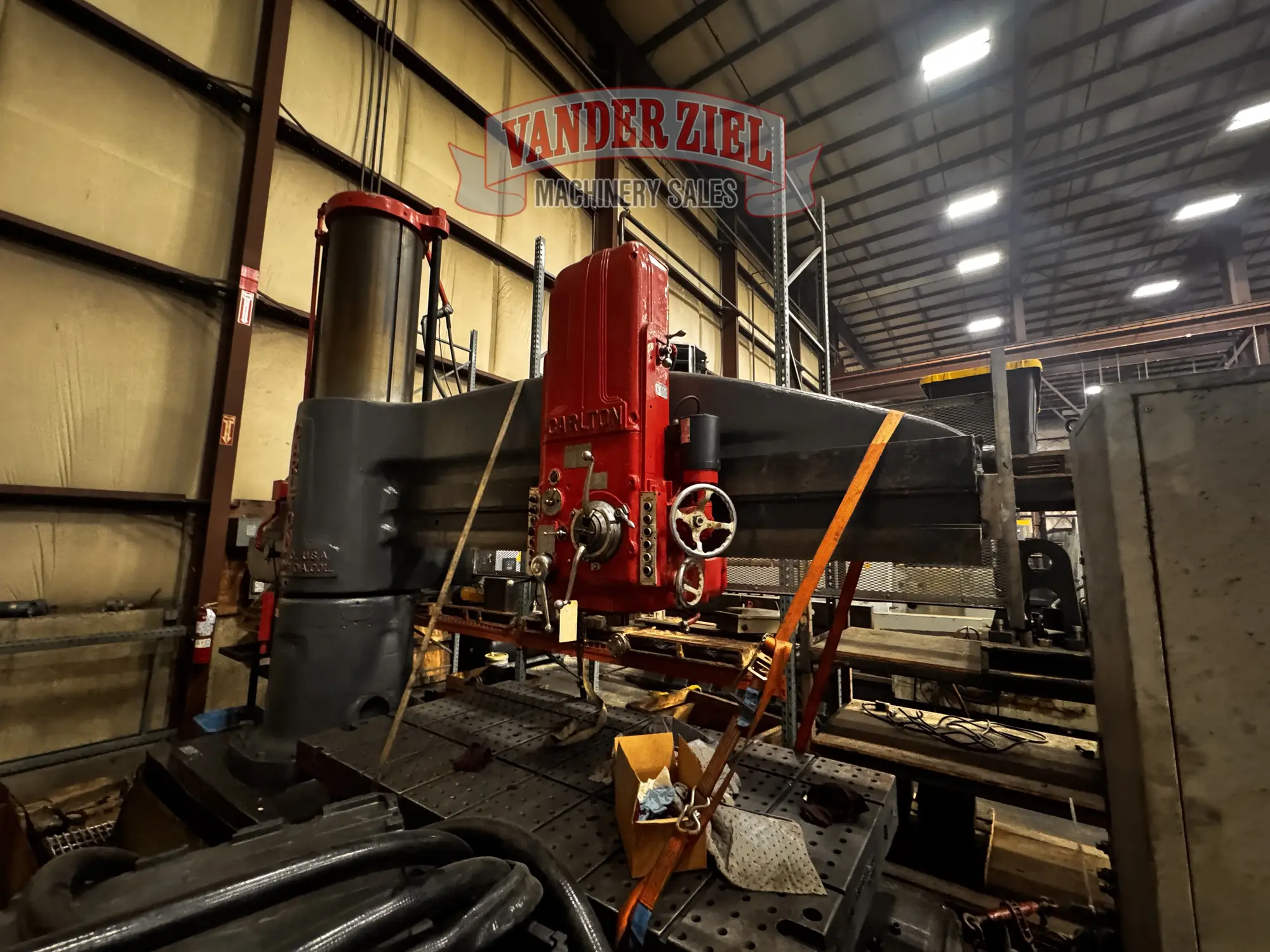

USED CARLTON 5A RADIAL DRILL

Distance from Face of Column to Center of Spindle
10.0-16.5″
Traverse of Head on Arm
8’8″
Spindle Radius
34″-11’6″
Drills to Center of Circle
20′
Spindle to Base Distance
10.5″-8’4″
Swing of Arm
12’9″
Working Surface of Base
4’9″W x 10’6″L
Plain Box Table – Top Working Surface
26″ x 40″
Height of Base
23″
Plain Box Table – Side Working Surface
14″ x 40″
Vertical Travel of Spindle in Head
24″
Plain Box Table – Height
20″
Bearing of Head on Arm
23.25″
Universal Table – Top Working Surface
28″ x 32″
Bearing of Arm on Column
52″
Universal Table – Side Working Surface
18″ x 28″
Maximum Height over Head
14.8″
Universal Table – Height
24″
Height Over Column Cap
14’5″
Net Weight of Bare Machine (less motor)
56,690lbs
Spindle Diameter
4″
Shipping Weight of Bare Machine (less motor)
56,690lbs
Morse Taper in Spindle
#6
Shipping Weight of Plain Box Table
1,025lbs
Traverse of Arm on Column
4’7.5″
Shipping Weight of Universal Table
1,280lbs
