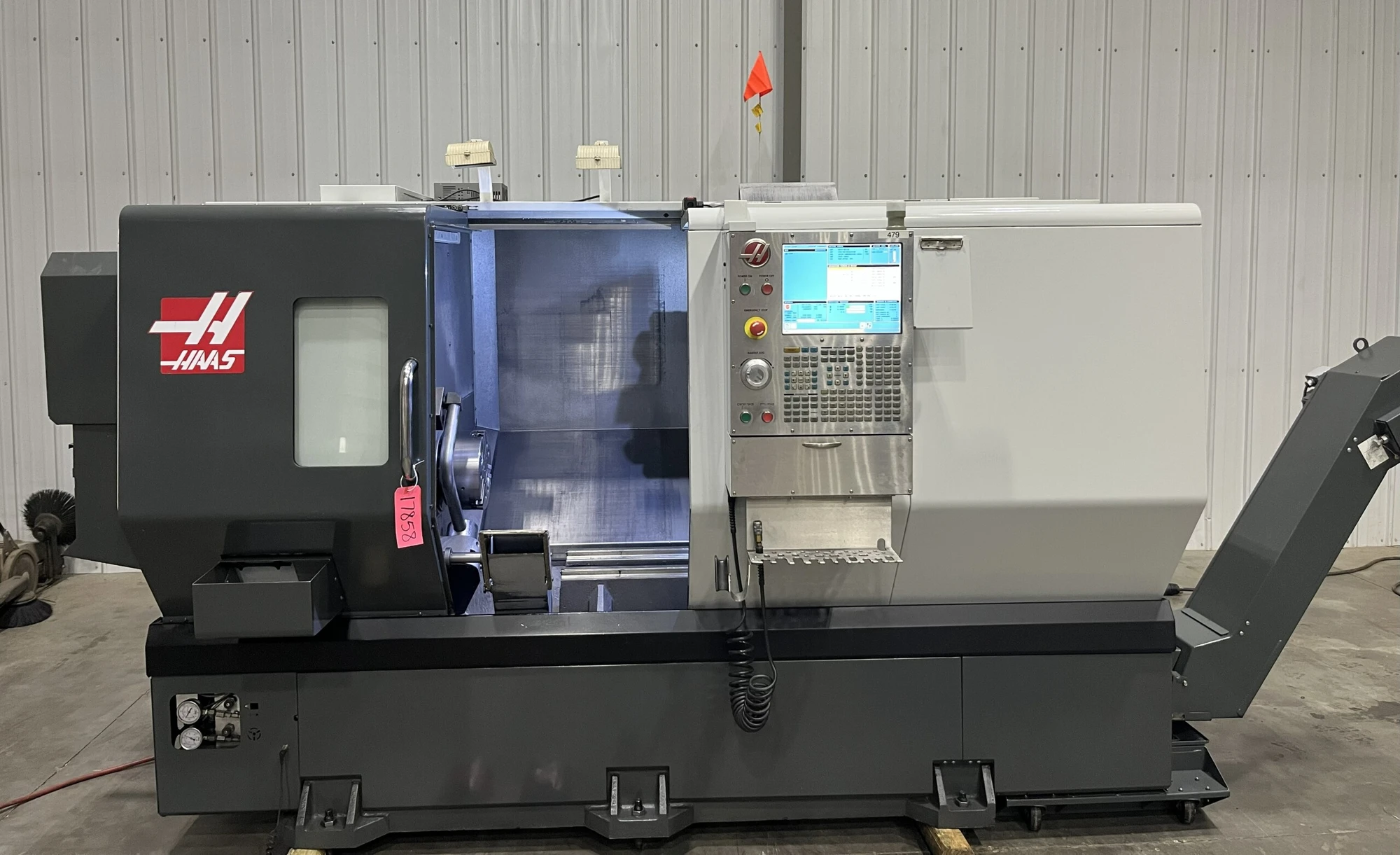

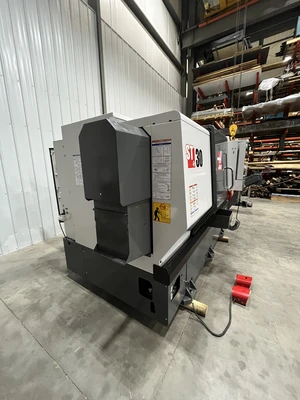

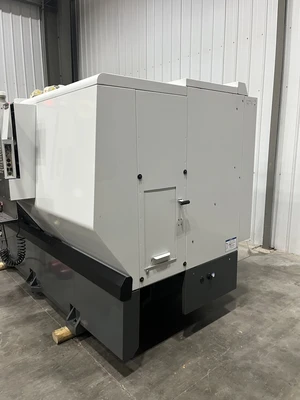

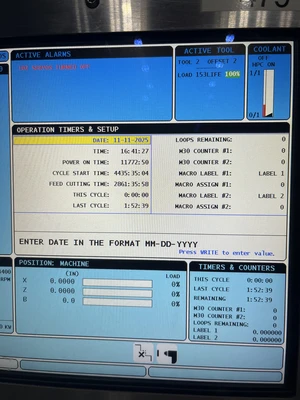

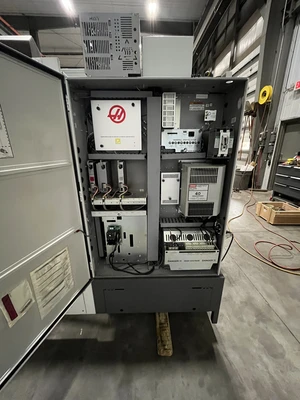

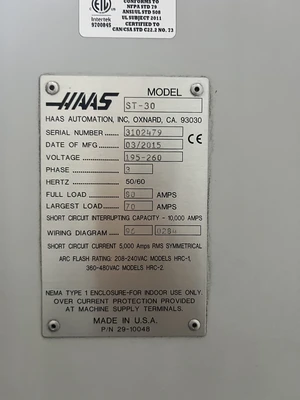

Haas ST-30 CNC Turning Center, 2015

Haas ST-30 CNC Turning Center, 2015

SWING DIAMETER                                                 S.A.E.
Over Front Apron                                                      31.75 ”
Over Cross Slide                                                       20.75 ”
Over Tailstock                                                          23.0 ”
CAPACITIES                                                             S.A.E.
Chuck Size                                                               10.0 ”
Max Cutting Diameter (varies with turret)                    21.0 ”
Max Cutting Length (without workholding)                  26.0 ”
Bar Capacity                                                            3.0 ”
Between Centers                                                      30 “
TRAVELS & FEEDRATES                                          S.A.E.
X Axis                                                                      12.5 ”
Z Axis                                                                       26 ”
Rapids on X                                                             945 in/min
Rapids on Z                                                             945 in/min
Max Thrust X                                                           4100 lb
Max Thrust Z                                                           5100 lb

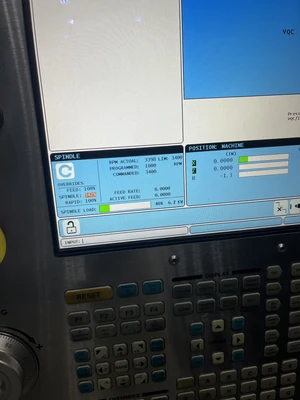

SPINDLE                                                                  S.A.E.
Max Rating                                                              30 hp
Max Speed                                                               3400 rpm
Max Torque                                                             300 ft-lb @ 500 rpm
Spindle Nose                                                           A2-6
Max Torque w/opt Gearbox                                      1000 ft-lb @ 150 rpm
Spindle Bore ø                                                        3.50 “
TURRET                                                                   S.A.E.
Number of Tools                                                      12 Stations
OD vs ID Tools                                                         Any Combination (will vary with turret style)
Boring Bar Rear Clearance (from back of turret )   4.0 “
GENERAL                                                                S.A.E.
Air Required                                                         4 scfm, 100 psi
Coolant Capacity                                                    55 gal
Preliminary Specifications – Subject to Verification
Additional Factory included options:
30HP spindle motor

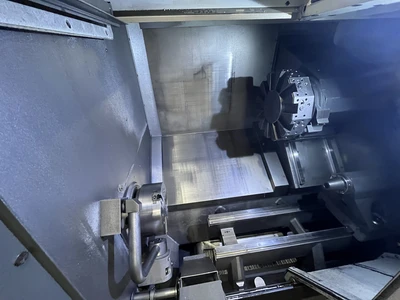

12 station BOT turret

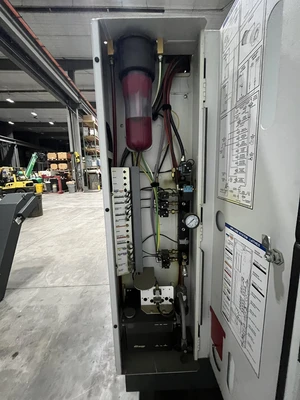

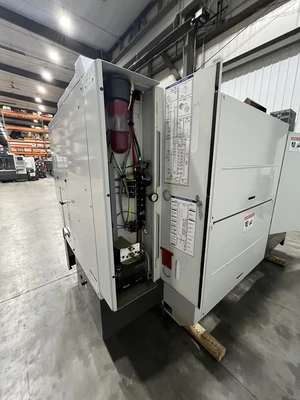

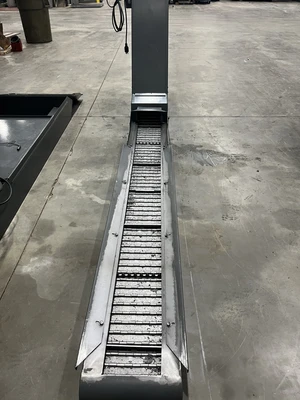

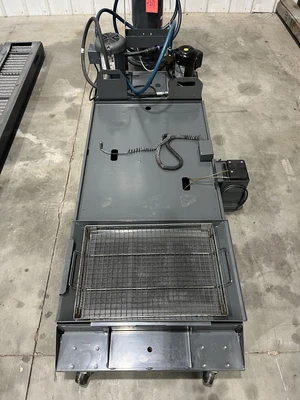

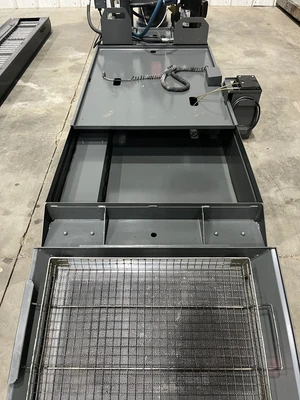

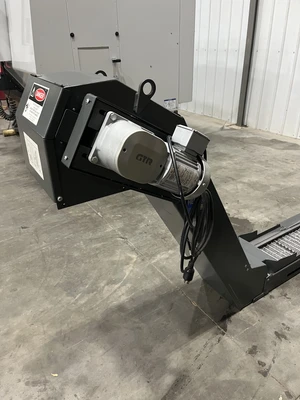

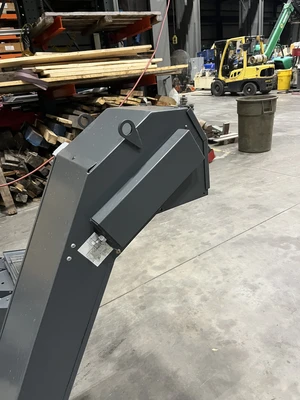

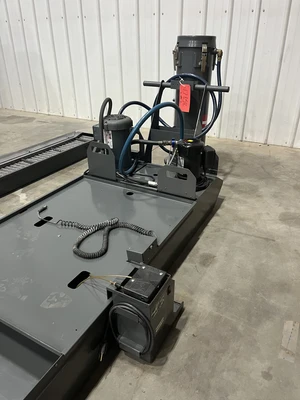

Chip conveyor
Tailstock
Automatic tool Presetter
High intensity lighting
High pressure coolant, 300psi
Parts catcher
Ethernet interface
Auxiliary coolant filter
Coolant tank oil skimmer
