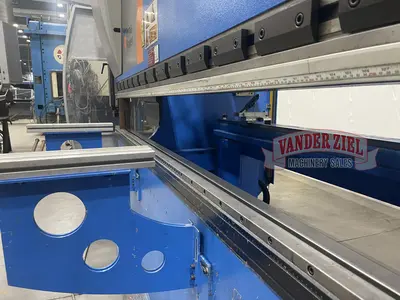

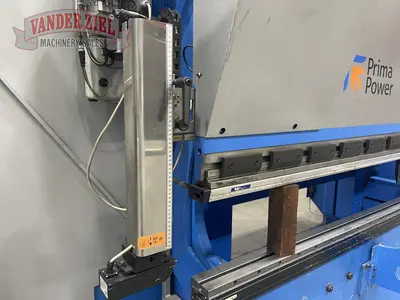

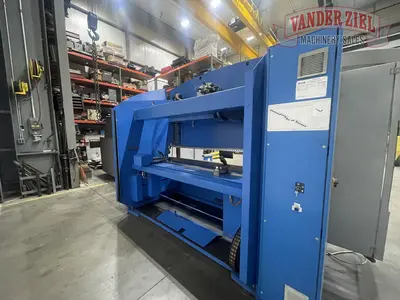

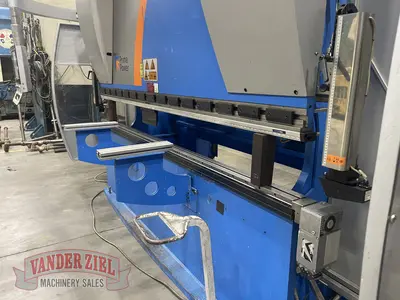

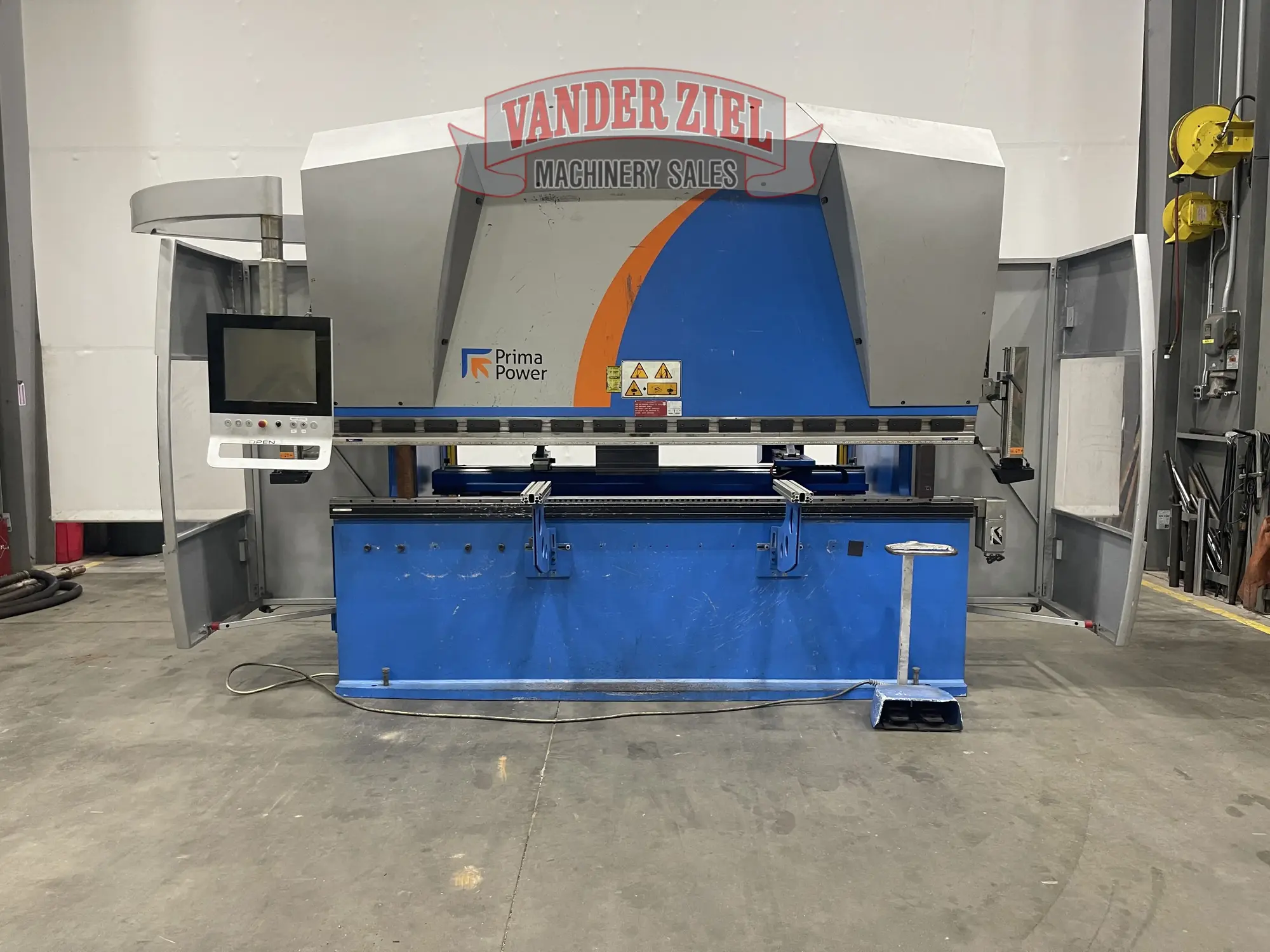

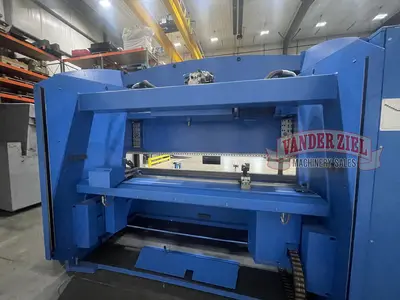

Adira Prima Power 10' x 110 Ton Press Brake - 2011

Adira Prima Power 10' Press Brake
Asset # 17271C
Serial # QUO-0012-V3-0042

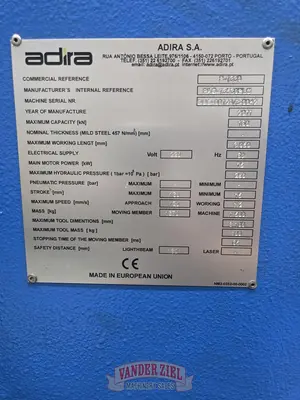

COMMERCIAL REFERENCE                                                                                      P-1330
MANUFACTURER'S INTERNAL REFERENCE                                                          PAO-13530PLS
MACHINE SERIAL NR.                                                                                                QUO-0012-V3-0042
YEAR OF MANUFACTURE                                                                                         2011
MAXIMUM CAPACITY [Ton]                                                                                    110
NOMINAL THICKNESS (MILD STEEL 457 N/mm) [mm]                                     -
MAXIMUM WORKING LENGT [inch]                                                                     120
ELECTRICAL SUPPLY                                                                                                   220 V60 HZ
MAIN MOTOR POWER [kW]                                                                                   15
MAXIMUM HYDRAULIC PRESSURE ( 1bar =10 Pa) [ bar]                                  290
PNEUMATIC PRESSURE [bar] -    MAXIMUM         -              MINIMUM          -
STROKE[inch]                                   MAXIMUM         6.3         MINIMUM          -
MAXIMUM SPEED [in/s]                Approach            4.72       WORKING           0.28
MASS [lbs]                         Moving Member             3,682     MACHINE            16,535
MAXIMUM TOOL DIMENTIONS [in]                                                                      122
MAXIMUM TOOL MASS [lbs]                                                                                  1544
STOPPING TIME OF THE MOVING MEMBER [ms]                                              65
SAFETY DISTANCE [inch]               LIGHTHBEAM     5.12       Laser     -
PRELIMINARY SPECS - SUBJECT TO VERIFICATION
