NEW MARVEL MANUFACTURING PS 4052/10/15/20

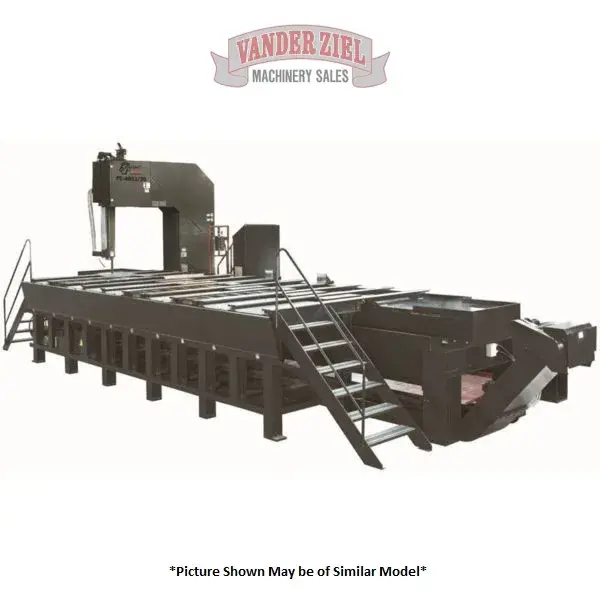

Marvel Spartan 40" x 51.125" Vertical Plate Saw, Model PS 4052/10/15/20 - NEW
SKU # 2322006
SPARTAN MODEL PS-4052/10 VERTICAL MOVING HEAD PLATE SAW WITH 2-5/8 INCH BLADE

Capacity:  40" (1000 mm) Height x 51.125" (1300 mm) Width x 118" (3 meters) Length
Blade:  27' 2.75" (8300 mm) x 2.125" (67 mm) x .063 (1.6 mm)
Support Table Width:  Inner Table        51.125" (1300 mm)
Outer Table              63" (1600 mm)
 Speed Range:  50-250 fpm (15-75 m/min.) infinitely variable, driven by heavy-duty worm gear transmission and variable  speed pulley.
 Feed Rate:  .040-12"/m (1-300 mm/min.)
 Motors:            Blade Drive                   10 H.P.
Feed Drive                    2 H.P.
Hydraulic Pump             3 H.P.
Coolant Pump                1 H.P.
Automatic Chip Removal:  The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations.
Table Height:  59" (1500 mm)
Overall Dimensions:  32' 7" (10,000 mm) Long x 14' 9.125" (4500 mm) Wide, with 20' table.
Machine Height:  14' 8" (4500 mm)
Machine Weight:  Approximately 35,200 lbs. (16,000 kg) (20' model)
STANDARD FEATURES

Space Saving Moveable Saw Head

Precision Linear Ways

Hydraulically Positioned Saw Guide Arm

Hydraulic Blade Tension

AC Servo Feed

Programmable Feed and Blade Speed Settings

Rapid Approach and Return of Saw Head

Motion Detector

Automatic Feed Adjustment

On-Screen Self Diagnostics

Out-of-Square Detector

Powered Chip Brush

Priced with a 118" Table, available with a 177" or 236" Table.
