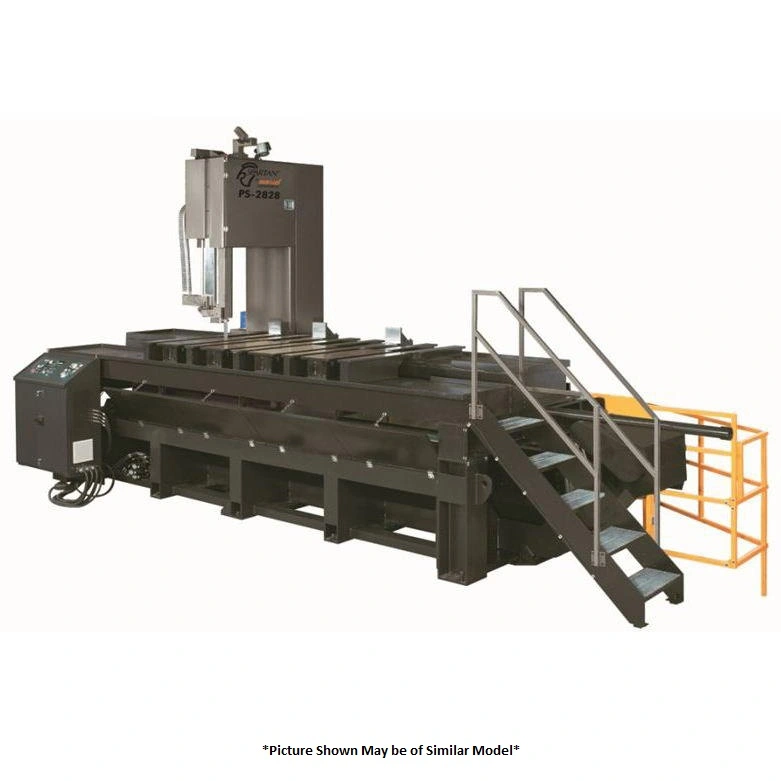

NEW MARVEL MANUFACTURING PS 2828/5/8

Mavel Spartan 27.5″ x 27.5″ Vertical Plate Saw, Model PS 2828/5/8 – NEW

SPARTAN MODEL PS-2828/5 VERTICAL MOVING HEAD PLATE SAW WITH 2 INCH BLADE
Capacity:  27.5” (700 mm) Height x 27.5” (700 mm) Width x 59” (1.5 meters) Length
Blade: 2” (54mm) x .063” (1.3 mm) x 22’ 3.75” (6800 mm)
Blade Guides: Hydraulically clamped carbide blade guides with hydraulic controlled upper blade guide arm.
Saw Head: Movement via hydraulic cylinder on ground square ways.
Support Table Width:  Inner Table        27.5” (700 mm)
Outer Table       27.5” (700 mm)
Speed Range: 50-250 fpm (15-75 m/min.) inverter controlled, infinitely variable, driven by heavy-duty worm gear transmission.
Feed Rate:  .080-20”/m (2-500 mm/min.)
Motors:            Blade Drive                   7.5   H.P. (5.5 KW)
Hydraulic Pump              2      H.P. (1.5 KW)
Coolant Pump                1      H.P. (0.7 KW)
Automatic Chip Removal:  The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations.
Table Height:  63” (1600 mm)
Overall Dimensions:  21’ 0” (6400 mm) Long x 8’ 4” (2550 mm) Wide, with 5’ table.
23’ 0” (7000 mm) Long x 8’ 4” (2550 mm) Wide, with 8’ table
Machine Height:  12’ 1.67” (3700 mm)
Machine Weight:  Approximately 19,800 lbs. (9,000 kg) 5’ model, 25,300 lbs. (11,500 kg.) 8’ model.
STANDARD FEATURES
Space Saving Moveable Saw Head
Saw Head Travels on Ground Square Ways
Built In Positioning Scales on Inner Table
Hydraulically Positioned Guide Arm
Hydraulic Blade Tension
Hydraulic Movement of Saw Head
Rapid Approach and Return of Saw Head
Motion Detector for Blade Breakage or Stalling
Hydraulic Blade Feed with Compensation Valve
Work Light
Hydraulically Clamped Tungsten Carbide Blade Guides
Powered Chip Brush
Independent Control Panel
Inverter Controlled Blade Speeds
Flushing Hose
Priced with a 59″ Table, Available with a 98″ Table
