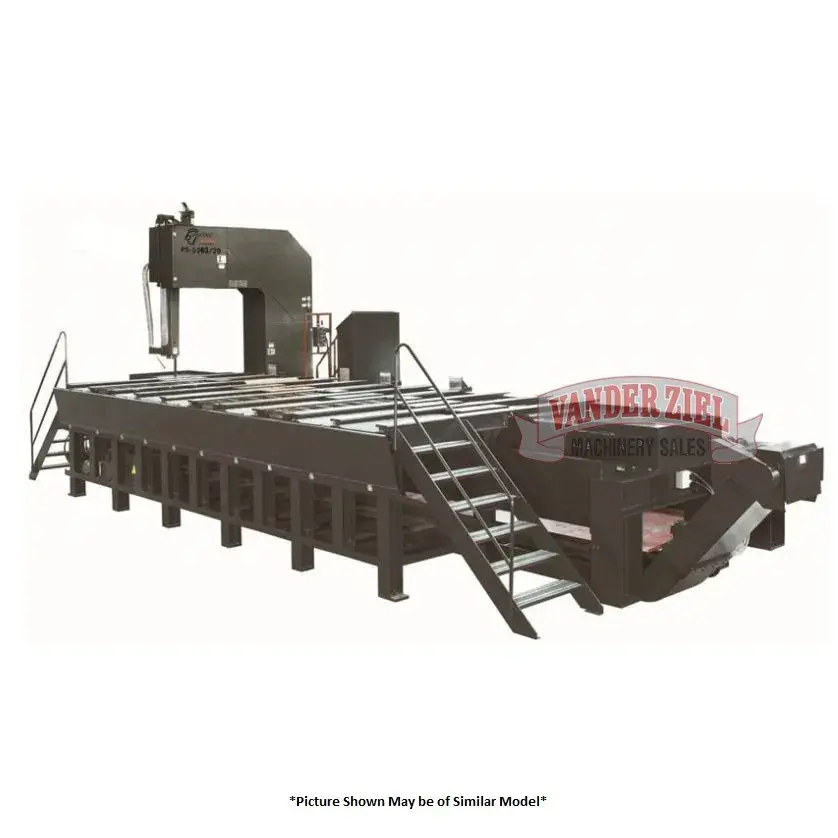

NEW MARVEL MANUFACTURING PS-5263/10/15/20

Marvel Spartan 51.125" x 61" Vertical Plate Saw, Model PS-5263/10/15/20 - NEW
SKU # 2322007
SPARTAN MODEL PS-5263/10 VERTICAL MOVING HEAD PLATE SAW WITH 3 INCH BLADE

Capacity:  51.125" (1300 mm) Height x 61" (1550 mm) Width x 118" (3 meters) Length
Blade:  32' 9.5" (10,000 mm) x 3" (67 mm) x .063 (1.6 mm)
Support Table Width:  Inner Table        61" (1550 mm)
Outer Table       78.75" (2000 mm)
Speed Range:  50-250 fpm (15-75 m/min.) infinitely variable, driven by heavy-duty worm gear transmission and variable  speed pulley.
Feed Rate:  .040-12"/m (1-300 mm/min.)
Motors:            Blade Drive                   15 H.P.
Feed Drive                     2.5 H.P.
Hydraulic Pump                3 H.P.
Coolant Pump                   1 H.P.
Automatic Chip Removal:  The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations.
Table Height:  67" (1700 mm)
Overall Dimensions:  33' 5.5" (10,200 mm) Long x 16' 4.75" (4500 mm) Wide, with 20' table.
Machine Height:  17' 9" (5400 mm)
Machine Weight:  Approximately 45,100 lbs. (20,500 kg) (20' model)
STANDARD FEATURES

Space Saving Moveable Saw Head

Precision Linear Ways

Hydraulically Positioned Saw Guide Arm

Hydraulic Blade Tension

AC Servo Feed

Programmable Feed and Blade Speed Settings

Rapid Approach and Return of Saw Head

Motion Detector

Automatic Feed Adjustment

On-Screen Self Diagnostics

Out-of-Square Detector

Powered Chip Brush

Priced with a 118" Table, also available with a 177" or 236" Table
