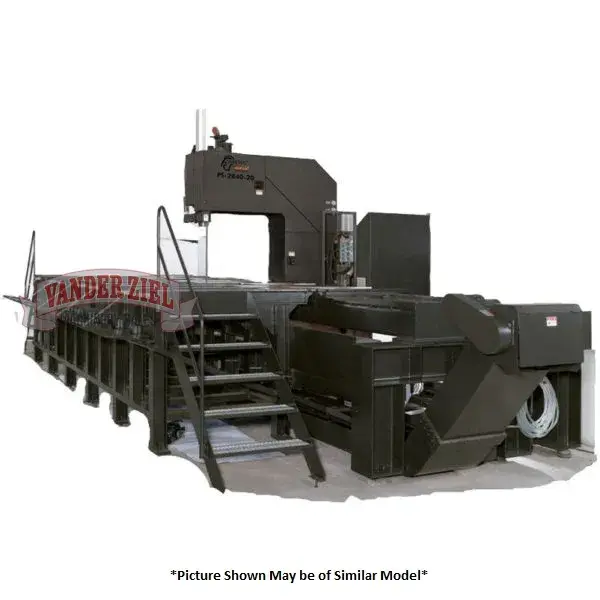

NEW MARVEL MANUFACTURING PS 2840/10/15/20

Marvel Spartan 27.5" x 40" Vertical Plate Saw, Model PS 2840/10/15/20 - NEW
SKU # 2322005
SPARTAN MODEL PS-2840/10 VERTICAL MOVING HEAD PLATE SAW WITH 2 INCH BLADE

Capacity:  27.5" (700 mm) Height x 40" (1000 mm) Width x 118" (3 meters) Length
Blade:  23' 5" (7140 mm) x 2" (54 mm) x .063 (1.6 mm)
Support Table Width:  Inner Table        39.4" (1000 mm) (22 ton maximum capacity)
Outer Table       63" (1600 mm) (37 ton maximum capacity)
Speed Range:  50-250 fpm (15-75 m/min.) infinitely variable, driven by heavy-duty worm gear transmission and variable  speed pulley.
Feed Rate:  .080-20"/m (2-500 mm/min.)
Motors:            Blade Drive         7.5 HP
Feed Drive       1.25 HP
Hydraulic Pump           (2 Sets) 2 HP
Coolant Pump 1 HP
Auto chip Conveyor                                  .5 H.P.
Automatic Chip Removal:  The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations.
Table Height:  55.125" (1400 mm)
Overall Dimensions:  33' 10" (10,300 mm) Long x 15' 5" (4700 mm) Wide, with 6 meter table.
Machine Height:  12' 0.625" (3700 mm)
Machine Weight:  Approximately 41,800 lbs. (19,000 kg) (20' model)
STANDARD FEATURES

Space Saving Moveable Saw Head

Precision Linear Ways

Hydraulically Positioned Saw Guide Arm

Hydraulic Blade Tension

AC Servo Feed

Programmable Feed and Blade Speed Settings

Rapid Approach and Return of Saw Head

Motion Detector

Automatic Feed Adjustment

On-Screen Self Diagnostics

Out-of-Square Detector

Powered Chip Brush

Priced with a 118" Table, Available with a 177" or 236" Table.
