NEW MARVEL MANUFACTURING PS 1620/5/8

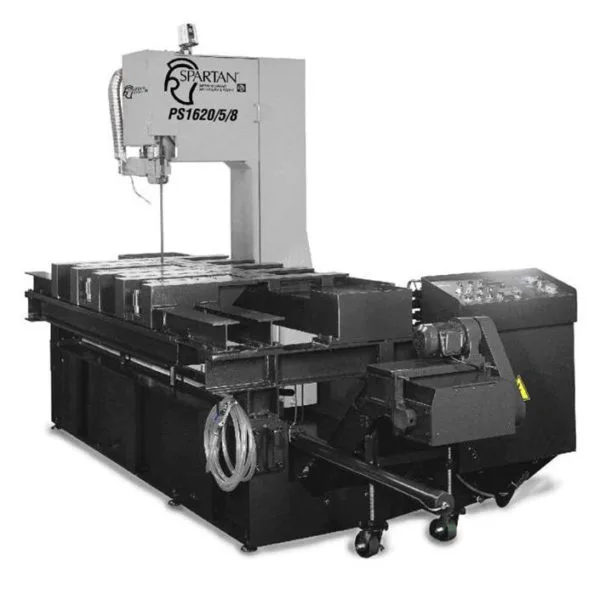

Marvel Spartan 16" x 20" Vertical Plate Saw, Model PS 1620/5/8 - NEW
SKU # 2322000
SPARTAN MODEL PS-1620 VERTICAL MOVING HEAD PLATE SAW WITH 1.5 INCH BLADE WITH 5'/8' CUTTING LENGTH

Capacity:  16" (400 mm) Height x 20" (500 mm) Width x 59" (1.5 meters) Length
Blade:  1.5" (41mm) x .050" (1.3 mm) x 15'3.875 (4670 mm)
Support Table Width:  Inner Table - 20" (500 mm)            Outer Table - 22" (550 mm)
Hydraulic Table:   material movement via optional hydraulically lifted table with roller and ball transfer unit and built in scale on inner table
Speed Range:  65-325 fpm (20-100 m/min.) Inverter controlled infinitely variable blade speeds, with a  heavy-duty worm gear transmission
Feed Rate:  .080-20"/m (2-500 mm/min.) pressure compensated
Motors:            Blade Drive                   7.5    H.P.
Feed Drive                      1      H.P.
Hydraulic Pump             2      H.P.
Coolant Pump                .25    H.P.
Automatic Chip Removal:  The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations.
Table Height:  41.75" (1060 mm)
Overall Dimensions:  18.75" (5700 mm) Long x 6'11" (2100 mm) Wide, with 5 foot table.
Machine Height:  8' 2" (2500 mm)
Machine Weight:  Approximately 13,200 lbs. (6,000 kg, 5') or 17,600 lbs (8,000 kg, 8')
STANDARD FEATURES

Space Saving Moveable Saw Head

Saw Head Travels on Ground Square Ways

Built In 2 Piece Positioning Scales on Inner Table

4 "F" Clamps for holding parts

Hydraulically Positioned Guide Arm

Hydraulic Blade Tension

Hydraulic Movement of Saw Head

Rapid Approach and Return of Saw Head

Motion Detector for Blade Breakage or Stalling

Hydraulic Blade Feed with Compensation Valve

Work Light

Hydraulically Clamped Tungsten Carbide Blade Guides

Powered Chip Brush

Independent Control Panel

Inverter Controlled Blade Speeds

Flushing Hose

Priced with 59" Long Table, 98" Table Available
