DoAll 20" Vertical Contour Saw, Model 2012 - VH - NEW

DoAll 20" Vertical Contour Saw, Model 2012 - VH - NEW
SKU # 1122004
Machine Capacity: 20" x 12" (508x305mm)
Production Level: Medium

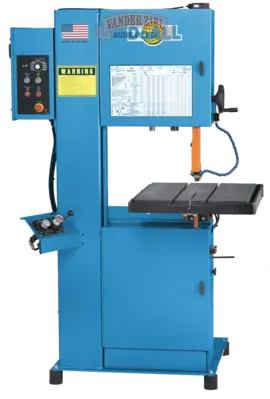

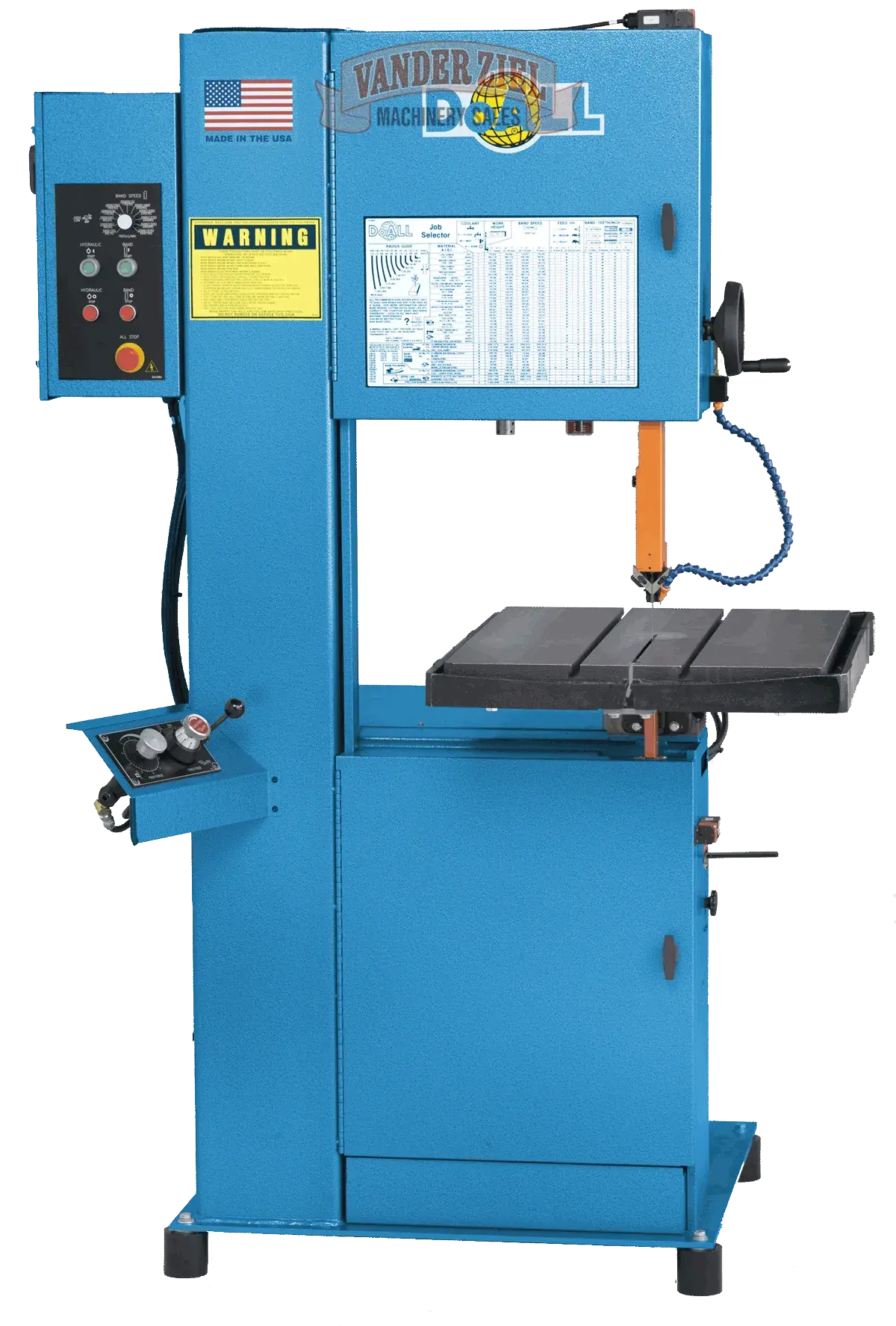

The DoALL 2012-VH vertical contour band saw features a hydraulically powered work table with 12" table stroke. These upright, variable hydraulic controlled, metal cutting band saws are among the most versatile sawing machines on the market today. The 2012-VH is widely used in machine shops, maintenance departments, schools and other areas where cutting a wide variety of materials is required.

Band Speed: 30-5,500 fpm (10-1,680 mpm)

AC Motor Drive: 3-hp (2.23kW)

Machine Weight (net): 1,1650 lbs (748 kg)

Throat, Band to Column: 20" (508mm)

Maximum Work Height: 12" (305mm)

Band Width Capacity: 1/8" - 1" (3.2 - 25mm)

Band Length: 154" (3,910mm)

Table: 26-1/2" x 33-1/2" (675 x 850mm) Tilts 45R, 10L

Table to Floor Height: 40" (1,020mm)

Table Stroke: 12" (305mm)

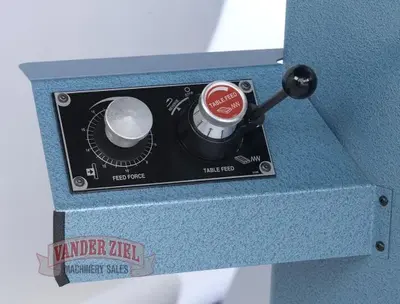

Table Feed: 0-6 fpm (0-1.8 mpm)

Table Feed Force: 0-175 lbs (0-79kg)

Table Capacity: 500 lbs (227kg)

Upper Wheel Adjustment: 3" (76mm)

Wheels: Flanged with steel backed rubber tires

Hydraulic reservoir: 4-1/2 gal. (15.6 liter)

Height, Max: 81" (2,057mm)

Floor Area Req.: 54-1/4" x 58" (1,380 x 1,475mm)

Standard Equipment:

One set of saw guide blocks w/carbide backup for bands 1/8" to 1" (3 to 25mm )

One set of 3/4" (19mm) and 1" (25mm) carbide-faced inserts

One set of metal saw guide inserts for bands 1/4" (6mm), 3/8" (10mm) and 1/2" (13mm)

Mist coolant-plant air

Variable frequency AC drive

Chip pan

Job selector

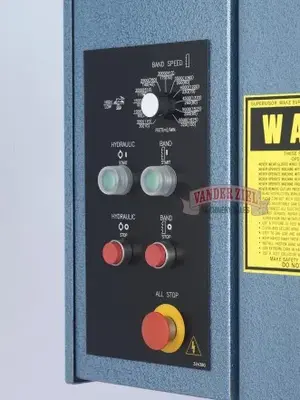

Band speed indicator

Wheel brush assembly

Band tension indicator

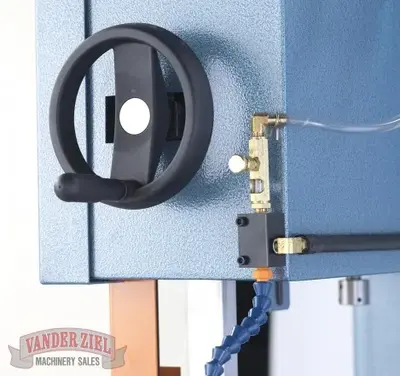

Post elevating hand wheel

Dual-range transmission

Table trunnion wrench

Complimentary coolant package

Wrench for saw guides

Transmission oil

One DoALL bi-metal saw blade

Instruction and parts manuals on CD
