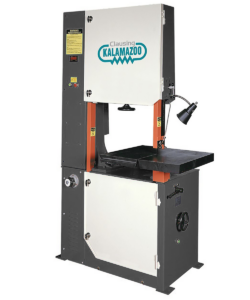

Clausing Kalamazoo 28″ Vertical Saw, Model V2812 – NEW
Standard Features…
230v/460v/60/3 Electricals
Magnetic Starter with 110v Control Circuit and Overload Protection
3 Hp (2.2Kw) TEFC Motor
Dual Range Transmission
1/2″ (13mm) and 3/4″ (19mm) Chevron type Blade Guides with Back-Up Roller
Fixed Table Models 26-3/4″ (680mm) x 29″ (736mm) Heavy-duty Cast Iron Table with two-way tilt (15°L & 45°R)
Hydraulic Table Models 26-3/4″ (680mm) x 29″ (736mm) Heavy-duty Cast Iron Table with two-way tilt (15°L & 45°R) Four (4) T-Slots on Top Table Travel 13″
Bonded Rubber Band Wheels
110v Work Light
Built-in Air Chip Blower
Blade Tension Indicator
Blade Speed Indicator
3/4″ (19mm) Carbon Hardback Blade
Locking Band Wheel Doors
Operation and Parts Manual
Two (2) year limited warranty
Model
V2812F
V2812F
Throat
28″
28″
Work Height
12″ (305mm)
12″ (305mm)
Drive Motor
3 Hp (2.2Kw)
3 Hp (2.2Kw)
Blade Length
197″-199″
197″-199″
(5004-5055mm)
(5004-5055mm)
Blade Width
1/8″-1″
1/8″-1″
(3-25mm)
(3-25mm)
Blade Speed (fpm)
50-5200
50-5200
Dimensions
Length
61″ (1550mm)
61″ (1550mm)
Width
41″ (1040mm)
44″ (1117mm)
Height
91″ (2311mm)
91″ (2311mm)
Net Weight
1,650 lbs.
1,760 lbs.
(748 kg)
(798 kg)
Shipping Weight
1,800 lbs.
1,900 lbs.
(816kg)
(861 kg)
