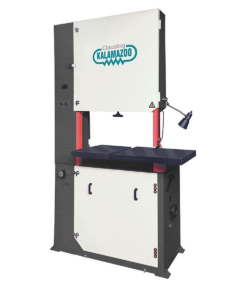

Clausing Kalamazoo 40″ Vertical Saw, Model V4014 – NEW
Standard Features…
230/460/60/3 Electricals
Magnetic Starter with 110V Control Circuit and Overload Protection
5 Hp TEFC Motor, with Brake (full stop from max. speed within 10 seconds)
Dual Range Transmission
1″ (25.4mm) Chevron type Blade Guides with Back-Up Roller
29″ (737mm)W x 27″ (686mm)L Heavy Duty Cast Iron Table with two-way tilt (15°L & 45°R)
29-1/2″ (749mm)W x 27-.1/2″ (699mm)L Heavy Duty Cast Iron Table with two-way tilt (15°L & 45°R) Four (4) T-Slots on Top (Hydraulic table only) Table Travel 13″ (330mm)
Auxiliary Table 19″ (483mm)W x 26-3/4″ (679mm)L
Bonded Rubber Band Wheels
110V Work Light
Built-in Air Chip Blower
Blade Tension Indicator
Blade Speed Indicator
1″ (25.4mm) Carbon Hardback Blade
Locking Band Wheel Doors
Operation and Parts Manual
Two (2) Year Limited Warranty
Model
V4014F
V4014H
Throat
40″ (1016mm)
40″ (1016mm)
Work Height
14″ (356mm)
14″ (356mm)
Table Height
54″ (1372mm)
54″ (1372mm)
Drive Motor
5 Hp (3.75Kw)
5 Hp (3.75Kw)
Blade Length
260″-263″
260″-263″
(6604-6680mm)
(6604-6680mm)
Blade Width
1/8″-11/4″
1/8″-11/4″
(3-25mm)
(3-25mm)
Blade Speed (fpm)
50-5200
50-5200
Dimensions
Length
72″ (1829mm)
72″ (1829mm)
Width
39″ (991mm)
39″ (991mm)
Height
113″ (2870mm)
113″ (2870mm)
Net Weight
2,976 lbs.
3,395 lbs.
(1350 kg)
(1540 kg)
Shipping Weight
3,395 lbs.
3,627 lbs.
(1540kg)
(1645 kg)
