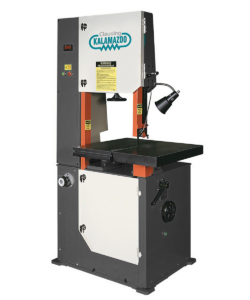

Clausing Kalamazoo 20″ Vertical Saw, Model V2012 – NEW
Standard Features…
230v/460v/60/3 Electricals
Magnetic Starter with 110v Control Circuit and Overload Protection
3 Hp (2.2Kw) TEFC Motor
Dual Range Transmission
1/2″ (13mm) and 3/4″ (19mm) Chevron type Blade Guides with Back-Up Roller
Fixed Table Models 26-3/4″ (680mm) x 29″ (736mm) Heavy-duty Cast Iron Table with two-way tilt (15°L & 45°R)
Hydraulic Table Models 26-3/4″ (680mm) x 29″ (736mm) Heavy-duty Cast Iron Table with two-way tilt (15°L & 45°R) Four (4) T-Slots on Top Table Travel 13″
Bonded Rubber Band Wheels
110v Work Light
Built-in Air Chip Blower
Blade Tension Indicator
Blade Speed Indicator
3/4″ (19mm) Carbon Hardback Blade
Locking Band Wheel Doors
Operation and Parts Manual
Two (2) year limited warranty
Model
V2012F
V2012H
Throat
20″
20″
Work Height
12″ (305mm)
12″ (305mm)
Drive Motor
3 Hp (2.2Kw)
3 Hp (2.2Kw)
Blade Length
159″-162″
159″-162″
(4040-4115mm)
(4040-4115mm)
Blade Width
1/8″-1″
1/8″-1″
(3-25mm)
(3-25mm)
Blade Speed (fpm)
50-5200
50-5200
Dimensions
Length
51″ (1295mm)
51″ (1295mm)
Width
41″ (1040mm)
44″ (1117mm)
Height
81″ (2057mm)
81″ (2057mm)
Net Weight
1,390 lbs.
1,500 lbs.
(630 kg)
(680 kg)
Shipping Weight
1,540 lbs.
1,650 lbs.
(698kg)
(748 kg)
