NEW W.F. WELLS B-25-3C3A-CNC

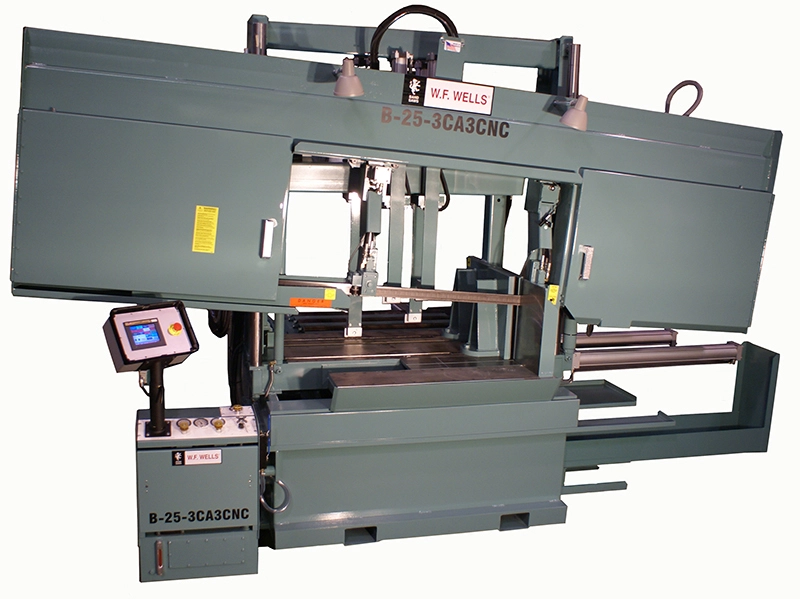

W.F. Wells 25″ x 40″ CNC Fully Automatic Canted Horizontal Saw, Model B-25-3A3A-CNC – NEW

Machine Specifications
Capacity: 22″ High x 40″ Wide (25″ Round, 24″ Square)
Weight Capacity: 15,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 2″ X .063″ X 26′-6″
Blade Guide: Spring Tensioned Carbide Blocks with Idle Roller Backup
Blade Tension: Hydraulic
Bandwheel Size: 26″
Vise: Hydraulic
Blade Drive: 15 HP, AC Vector Drive
Sawing Force: 0-1,000 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 5 HP Motor
Work Height: 34″
Outfeed Table: 12″ X 41″
Vise Jaw Height: 17″
Barfeed Projection: 0 – 36″ CNC Controlled
Projection Accuracy: +/- .002″
Shuttle Indexes: Unlimited
Remnant End: 14″
Electrics: Wired to NFPA 79 Machine Tool Standards
Hydraulic Positioned Guide Arm, Powered Blade Brush, Blade Break/Stall Switch
CNC Programmable Controlled with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
Shipping Weight: 11,400
Shipping Dimensions: 170”L x 102”W x 105”H
