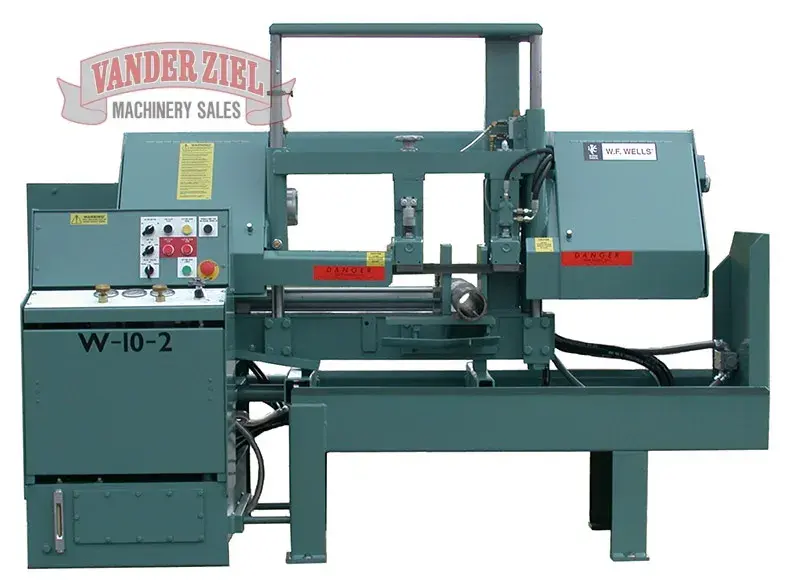

W.F. Wells 10" x 17" Semi-Automatic Horizontal Saw, Modoel W-10-2 - NEW

W.F. Wells 10" x 17" Semi-Automatic Horizontal Saw, Modoel W-10-2 - NEW
SKU#4020007
Machine

Specifications

Capacity: Rectangular @ 90° 10" High x 17" Wide, Round @ 90° 10" Dia.
Rectangular @ 45° 10" High X 7 1/2" Wide Round @ 45° 7 1/2" Dia.
Weight Capacity: 5,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1" X .035" X 11′-11"
Blade Guide: Carbide Block
Blade Tension: Hydraulic, Console Controlled
Bandwheel Size: 14 1/2"
Vise: Hydraulic, Full Stroke
Blade Drive: 5 HP, AC Vector Drive
Sawing Force: Hydraulic 0-750 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 26"
Shipping Weight: 1,975 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 97" Length x 49" Width x 65" Height
