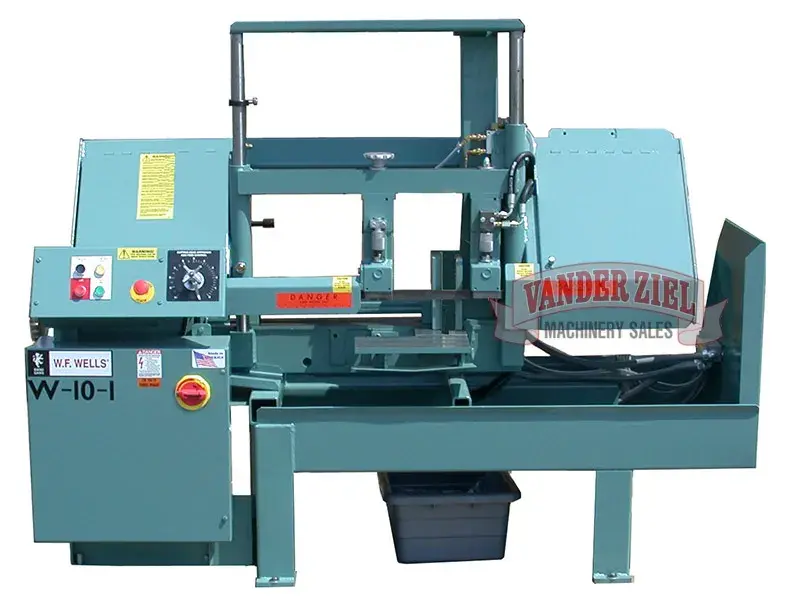

W.F. Wells 10" x 17" Semi-Automatic Horizontal Saw, Modoel W-10-1 - NEW

W.F. Wells 10" x 17" Semi-Automatic Horizontal Saw, Model W-10-1 - NEW
SKU#4020003
Machine

Specifications

Capacity: Rectangular at 90° 10" High x 17" Wide, Round at 90° 10" Dia.
Rectangular at 45° 10" High X 7 1/2" Wide, Round at 45° 7 1/2" Dia.
Weight Capacity: 5,000 lbs
Blade Speed: 60-425 SFPM
Blade Size: 1" X .035" X 11′-11"
Sawing Feed: Variable, Hydraulic
Blade Guide: Carbide Block
Blade Tension: Manual with Indicator
Bandwheel Size: 14 1/2"
Vise: Manual
Blade Drive: 5 HP, 3ph, AC Vector Drive
Sawing Force: 30-120 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 3/4 Gallon
Hydraulic Drive: 1/3 HP Motor
Work Height: 26"
Shipping Weight: 1,400 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 97" Length x 49" Width x 65" Height
