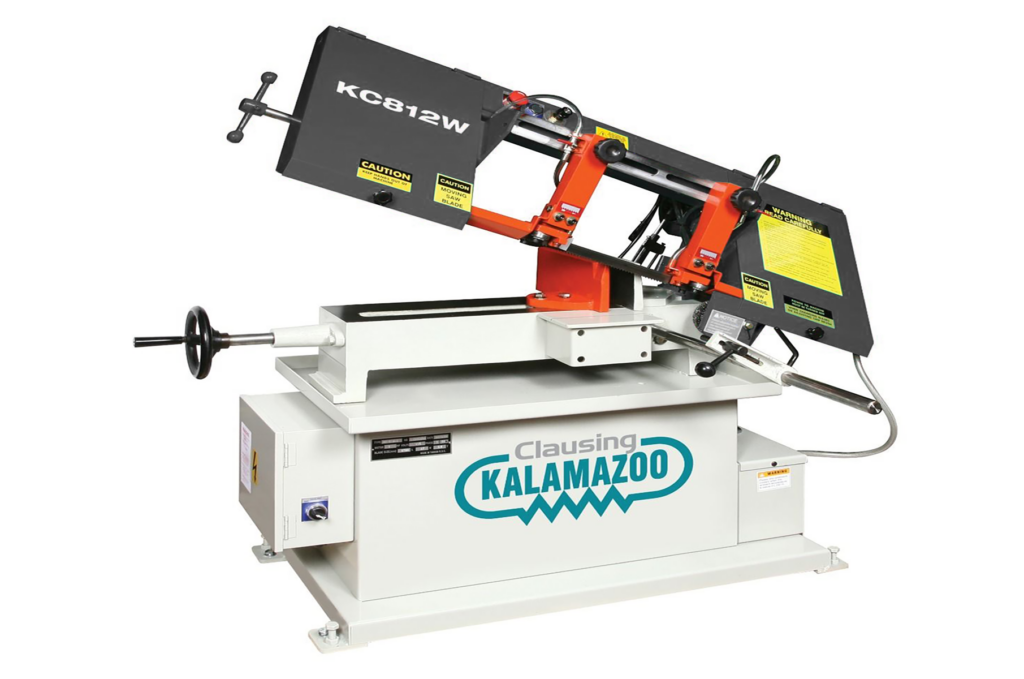

Clausing Kalamazoo 7″ x 14″ Wet Horizontal Saw, Model KC812W – NEW
Standard Features…
1 Hp (.75kw) drive motor with magnetic starter and overload protection
4 speed step pulley with worm gear speed reducer, worm shaft is hardened and ground
Totally enclosed transmission
Heavy-duty hydraulic cylinder with precision ground hinge support
Pan shaped base with built-in coolant & hydraulic system
Cast iron bed
Carbide blade guides with roller bearings
Two additional bearings to support blade from the top
Integral coolant system
Blade brush
Valve controlled hydraulic cylinder controls feed and can be adjusted for different types and sizes of material
Adjustable stock stop
Simplified control switches mounted on saw head
Cast iron quick acting 0°- 45° vise with manual leadscrew clamping system
Anti-slip hand wheel
Easy blade change with front access at waist level
1″ wide bi-metal saw blade
Tool box, leveling pads and an additional wire brush
Operation & parts manual
Two (2) year limited warranty
Type
Horizontal wet cut
Drive Motor
1 Hp (.75kw) 110v or 220v 1 Ph
Band Wheel Diameter
11.5″ (292mm) Flanged, Cast Iron
Blade Size
1″ x .035″ x 8′-11″ (27 x .9 x 2720mm)
Bed Height
24.8″ (639mm)
Blade Speeds (4)
59, 96, 155, 260 fpm (18, 29, 47, 79 m/min)
90° Cutting Capacity
Round
8″ (190mm)
Square
7″ (180mm)
Rectangular (H x W)
7″ x 14″ (180 x 355mm)
45° Cutting Capacity
Round
7.5″ (200mm)
Square
6″ (152mm)
Rectangular (H x W)
6″ x 9″ (152 x 228mm)
Width
59″ (1500mm)
Depth
24.6″ (625mm)
Height (head-up)
63″ (1600mm)
Height (head-down)
45″ (1150mm)
Net Weight
484 lbs (220kg)
Shipping Weight
580 lbs (263kg)
Shipping Dim. (LxWxH)
58″ x 30″ x 48″ (1475 x 762 x 1220mm)
