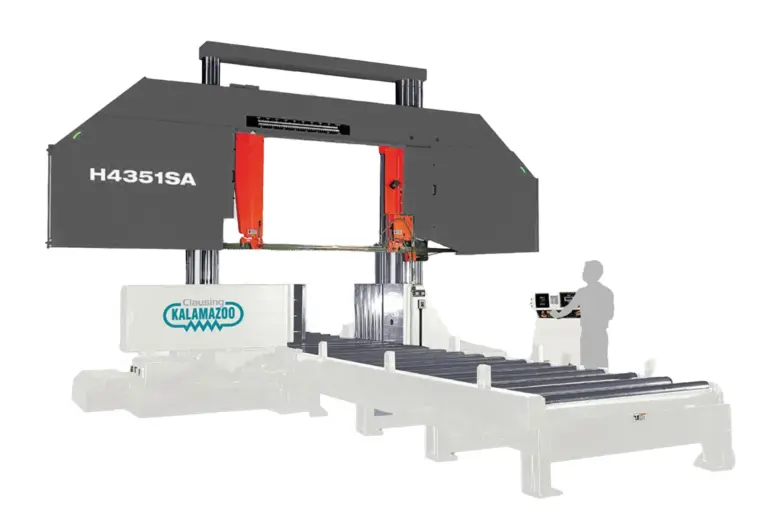

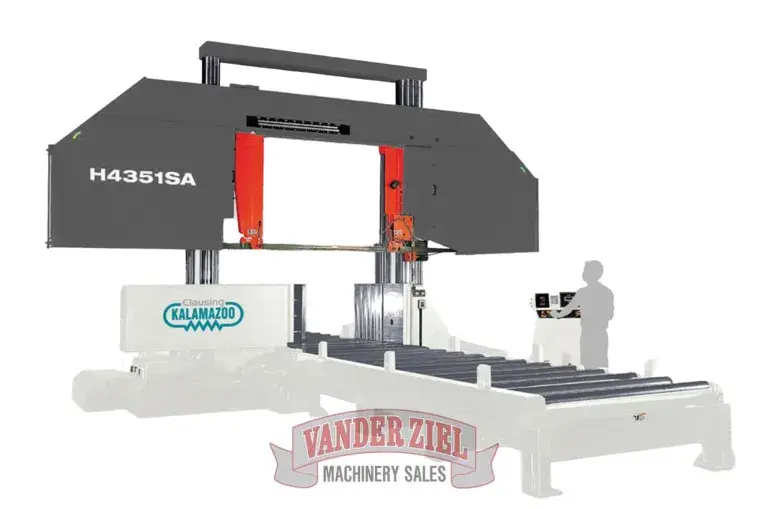

Clausing Kalamazoo 43.3″ 51.2″ Semi-Automatic Horizontal Saw, Model H4351SA – NEW
Standard Features…
The extra heavy-duty saw frame is supported by two large bore hydraulic cylinders, providing unsurpassed rigidity, and the smoothest cutting possible
Dual Column design with precision ground columns ensures smooth saw frame movement and consistent cutting force throughout the cutting cycle
Specially designed planetary gear reducer for optimum mechanical efficiency
Inverter controlled infinitely variable blade speed with blade speed indicator
Independent wire brush system
Hydraulically powered guide arm is positioned from the control panel
Hydraulic Blade Tension System, with easy to read pressure gauge
Carbide blade guides are activated hydraulically
Additional blade guiding bearings for extra support
Heavy cast iron moveable Guide Arm is hydraulically powered from the control panel
Last Cut function
User-friendly control panel
Precision Feed Pressure control valve with micro-precision adjustment
Saw Blade Height Selector
Hydraulic driven work bed with rollers for moving large material safely
Three sets of vises design. The front and middle vises hold the stock during cutting while the guide vise can be separately controlled to guide the material during feeding cycle
Stock position cylinder pushes stock away from fixed vise for easy material handling
Shadow light for material measurement
Blade breakage and/or slippage detector
Bi-metal saw blade
Tool box, leveling pads, and an additional wire brush
Operation & parts manual
Two (2) year limited warranty
Motor
15 Hp (11.2 kw), 230/460v 3ph*
Hydraulic Pump Motor
3 Hp (2.2 kw)
Hydraulic Oil Capacity
35 gallons (160 liters)
Blade Speeds (Variable speed)
49-264 fpm (15-80 m/min)
Blade Size (W x T x L)
3.1″ x .063″ x 433″ (80 x 1.6 x 11000mm)
Blade Tension
Hydraulic
Coolant
Recirculating
Coolant Capacity
44 gallons (200 liters)
90° Cutting Capacity
Round
43.3″ (1100mm)
Square
43.3″ (1100mm)
Rectangular
43.3″ x 51.2″ (1100 x 1300mm)
Length
86.6″ (2200mm)
Width
193″ (4900mm)
Height
137.8″ (3500mm)
Bed Height
24.4″ (620mm)
Net Weight
30,140 lbs (13700 kg)
Shipping Weight
33,455 lbs (15175 kg)
