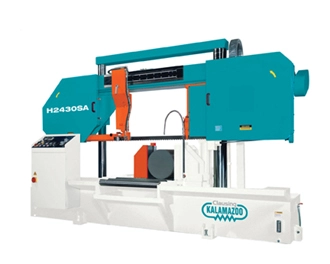

Clausing Kalamazoo 24.4″ x 30″ Semi-Automatic Horizontal Saw, Model H2430SA- NEW
Standard Features…
Oversized precision ground, large dual columns
Cross link connecting two columns for enhanced structural strength
Specially designed gearbox for high lateral pressure
Heavy duty inverter blade drive system
LED speed indicator
Cam lock carbide blade guides with bearing guides
Two additional guides to support the blade from the top
Automatic hydraulic blade tensioning device
Integral coolant system
Synchronized power driven blade brush
PLC control
Ergonomically located independent control station
Precision feed pressure & feed rate dual valve system
Work height selector & air gap eliminator
“Last cut” or “keep on” selector
Split vise jaws
Full stroke ductile cast iron split vise
Hydraulically powered in-feed lift roller for forward and backward feeding
Ductile cast iron vises with replaceable hardened wear plates
Proximity switch for sensing blade slippage or breakage
Blade “clip” device for easy blade change
Discharge roller workbed with built-in coolant return
Additional flushing hose
Bi-metal saw blade
Tool box, leveling pads, and an additional wire brush
Operation & parts manual
Two (2) year limited warranty
Motor
10 Hp (7.3 kw), 230/460v 3ph*
Hydraulic Pump Motor
2 Hp (1.5 kw)
Hydraulic Oil Capacity
12.5 gallons (50 liters)
Blade Speeds (Variable speed)
66-328 fpm (20-100 m/min)
Blade Size (W x T x L)
2.1″ x .063″ x 283″ (54 x 1.6 x 7200mm)
Blade Tension
Hydraulic
Coolant
Recirculating
Coolant Capacity
25 gallons (100 liters)
90° Cutting Capacity
Round
24.4″ (620mm)
Square
24.4″ (620mm)
Rectangular
24.4″ x 30″ (620 x 760mm)
Length
47.2″ (1200mm)
Width
140″ (3560mm)
Height
93″ (2360mm)
Bed Height
23.6″ (700mm)
Net Weight
7,700 lbs (3500 kg)
Shipping Weight
8,580 lbs (3900 kg)
