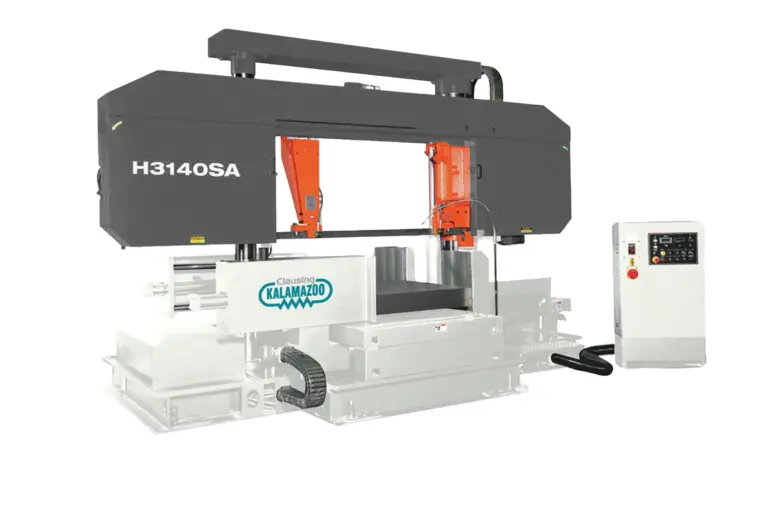

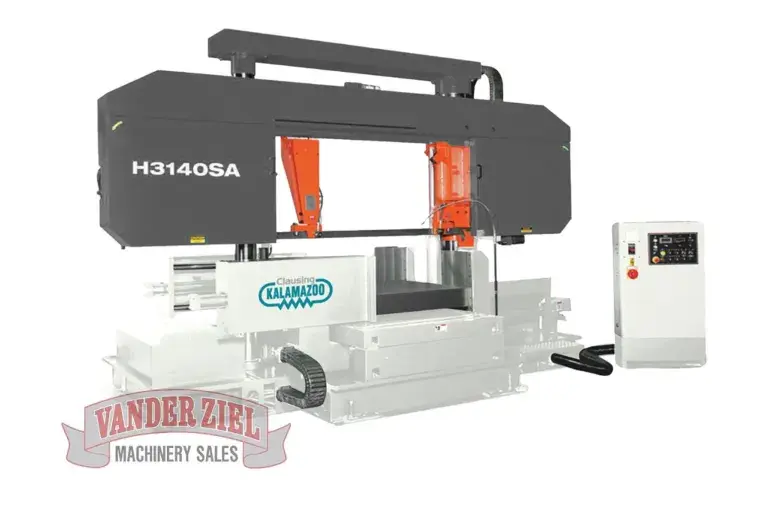

Clausing Kalamazoo 34.5″ x 39.4″ Semi-Automatic Horizontal Saw, Model H3140SA – NEW
Standard Features…
The extra heavy-duty saw frame is supported by two large bore hydraulic cylinders, providing unsurpassed rigidity, and the smoothest cutting possible
Dual Column design with precision ground columns ensures smooth saw frame movement and consistent cutting force throughout the cutting cycle
Large diameter cast iron bandwheels
Inverter drive with infinitely variable blade speeds with blade speed indicator
Hydraulic controlled tungsten carbide blade guide
Groove shaped designed blade guides
Hydraulic controlled blade tension device
Hydraulic driven guide arm
Proximity switch for sensing blade slippage or breakage
Independent wire brush drive system
Last cut function automatically stops the machine and shuts down the hydraulic system at the end of the last cut
Two full stroke cylinder Vices
Discharge table with built-in coolant return
Heavy-duty machine structure design for heavy cutting jobs
Precise flow control valve to finely adjust the cutting speed
Additional flushing hose
Bi-metal saw blade
Tool box, leveling pads, and an additional wire brush
Operation & parts manual
Two (2) year limited warranty
Motor
15 Hp (11.2 kw), 230/460v 3ph*
Hydraulic Pump Motor
3 Hp (2.2 kw)
Hydraulic Oil Capacity
26 gallons (100 liters)
Blade Speeds (Variable speed)
49-264 fpm (15-80 m/min)
Blade Size (W x T x L)
2.6″ x .063″ x 346.5″ (67 x 1.6 x 8800mm)
Blade Tension
Hydraulic
Coolant
Recirculating
Coolant Capacity
32 gallons (120 liters)
90° Cutting Capacity
Round
31.5″ (800mm)
Square
31.5″ (800mm)
Rectangular
31.5″ x 39.4″ (800 x 1000mm)
Length
90″ (2286mm)
Width
169″ (4293mm)
Height
105″ (2667mm)
Bed Height
25.2″ (640mm)
Net Weight
22,000 lbs (10000 kg)
Shipping Weight
23,320 lbs (10578 kg)
