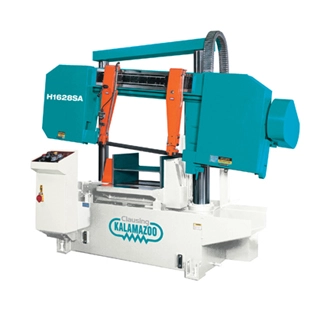

Clausing Kalamazoo 13.8″ x 27.5″ Semi-Automatic Horizontal Saw Model H1628SA – NEW
Standard Features…
Twin column design insures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
Infinitely variable blade speed
Digital blade speed indicator
Carbide blade guides with roller bearings
Two additional guides to support the blade from the top
Automatic hydraulic blade tensioning
Power driven blade brushes
Integral coolant system
Automatic shutoff at end of material or after preset number of cuts
Precision feed pressure & feed rate
Cast iron vises with replaceable hardened wear plates
Discharge table with built-in coolant return
Blade slippage or breakage detection
Additional flushing hose
Bi-metal saw blade
Built in work light
Tool box, leveling pads, and an additional wire brush
Operation & parts manual
Two (2) year limited warranty
Motor
7.5 Hp (5.5 kw), 230/460v 3ph*
Hydraulic Pump Motor
1 Hp (.75 kw)
Hydraulic Oil Capacity
13 gallons (50 liters)
Blade Speeds (Variable speed)
66-328 fpm (20-100 m/min)
Blade Size (W x T x L)
1.6″ x .05″ x 215″ (41 x 1.3 x 5450mm)
Blade Tension
Hydraulic
Coolant
Recirculating
Coolant Capacity
10.4 gallons (40 liters)
90° Cutting Capacity
Round
16.5″ (420mm)
Square
16.5″ (420mm)
Rectangular
13.8″ x 27.5″ (350 x 700mm)
Length
47″ (1200mm)
Width
108″ (2750mm)
Height
84.2″ (2150mm)
Bed Height
27.5″ (700mm)
Net Weight
4,250 lbs (1930 kg)
Shipping Weight
5,940 lbs (2700 kg)
