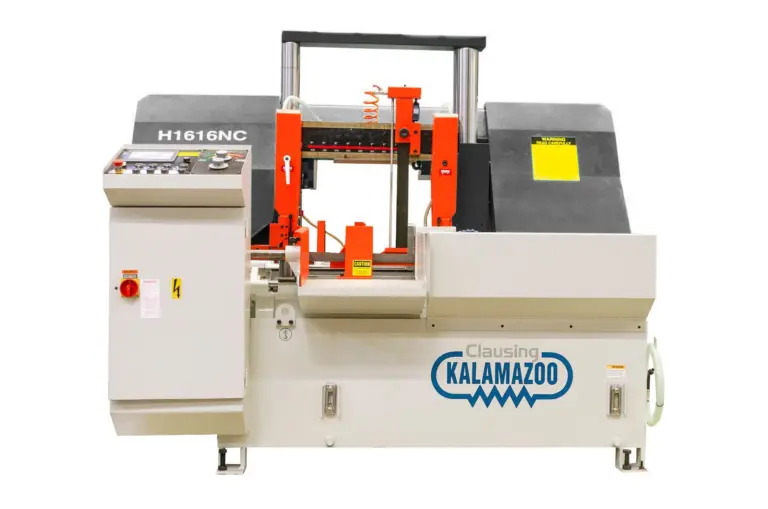

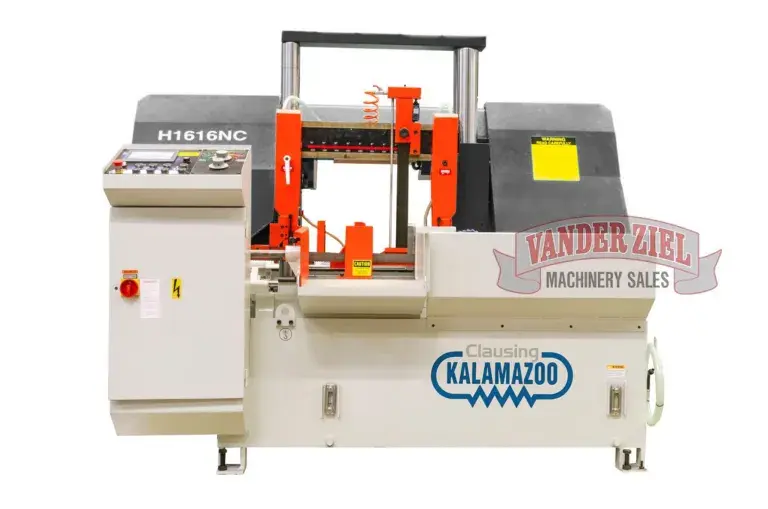

Clausing Kalamazoo 16.5″ x 16.5″ Automatic NC Twin Column Horizontal Saw, Model H1616NC – NEW
Standard Features…
Oversized hydraulic cylinder
Twin column design ensures rigid support during cutting cycle
Hydraulic shuttle vice assembly
Inverter controlled infinitely variable speed
Carbide blade guides with roller bearings
Two additional guides to support the blade from the top
Automatic hydraulic blade tensioning
Power driven blade brushes
Integral coolant system
Smart NC-100 technology programmable up to 100 different jobs
Easy recal and execution of stored parts
Automatic shutoff after preset number of cuts or when out of stock
5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
Automatic kerf loss compensation & computer controlled multiple indexing
Precision feed pressure & feed rate
Bundle/single cutting mode switch
Automatic height setting feature
Hydraulic front and rear vises
Cast iron vises with replaceable hardened wear plates
Discharge table with built-in coolant return
Blade slippage or breakage detection
Adjustable cut-off stock fence
Additional flushing hose
Bi-metal saw blade
Built in work light
Tool box, leveling pads, and an additional wire brush
Operation & parts manual
Two (2) year limited warranty
Motor
7.5 Hp (5.6 kw), 230/460v 3ph*
Hydraulic Pump Motor
2 Hp (1.5 kw)
Hydraulic Oil Capacity
10.5 gallons (40 liters)
Blade Speeds (Variable speed)
66-328 fpm (20-100 m/min)
Blade Size (W x T x L)
1.6″ x .05″ x 184″ (41 x 1.3 x 4770mm)
Blade Tension
Hydraulic
Coolant
Recirculating
Coolant Capacity
22.5 gallons (85 liters)
90° Cutting Capacity
Round
16.5″ (420mm)
Square
16.5″ (420mm)
Rectangular
16.5″ x 16.5″ (420 x 420mm)
**Bundle Cutting Width
7.48″ to 14.17″ (190 to 360mm)
**Bundle Cutting Height
3.94″ to 7.08″ (100 to 180mm)
Feed Length/Index
19.8″ (503mm)
Max. Feed
255.9″ (6500mm)
Length
98″ (2490mm)
Width
93″ (2360mm)
Height
74.4″ (1890mm)
Bed Height
27.5″ (700mm)
Net Weight
6,614 lbs (3000 kg)
Shipping Weight
7,275 lbs (3300 kg)
