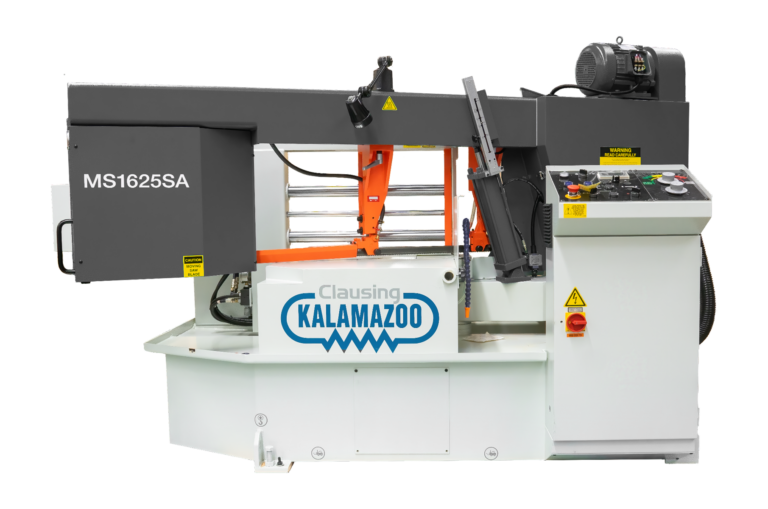

Clausing Kalamazoo 15″ x 26.6″ Semi-Automatic Miter Horizontal Saw, Model MS1625SA – NEW
Standard Features…
Swivel sawhead mitering from 90° to 60°
Rigid and heavy-duty pivot and trunion
Sturdy cast work table
24.5″ solid discharge table with coolant return
Variable speeds from 66 thru 330 fpm
Carbide blade guides with roller bearings
Two additional bearings to support blade from the top
Cast iron guide arm supported by heavy-duty cast iron dovetail
Automatic hydraulic blade tensioning
Integral coolant system
Synchronized blade brush
Precision feed pressure & feed rate dual valve system
Conveniently designed control station
Electrical components located inside the control box with main lockout disconnect
Work height selector
Industrial rated hydraulic components
36″ infeed roller table
Full stroke machine vises
Breakage detector
Built-in adjustable material stop
Adjustable work light
Additional flushing hose
Bi-metal saw blade
Tool box, leveling pads, and an additional wire brush
Operation & parts manual
Two (2) year limited warranty
Motor
5 Hp (3.75 kw), 230/460v 3ph*
Hydraulic Pump Motor
1 Hp (.75 kw)
Hydraulic Oil Capacity
11.7 gallons (45 liters)
Blade Speeds (Variable speed)
66-328 fpm (20-100 m/min)
Blade Size (W x T x L)
1.3″ x .042″ x 209″ (34 x 1.1 x 5300mm)
Blade Tension
Hydraulic
Coolant
Recirculating
Coolant Capacity
15.6 gallons (60 liters)
90° Cutting Capacity
Round
16.5″ (420mm)
Rectangular
15″ x 26.6″ (380 x 650mm)
45° Cutting Capacity
Round
16″ (400mm)
Rectangular
16″ x 16″ (400 x 400mm)
60° Cutting Capacity
Round
10″ (250mm)
Rectangular
16″ x 10″ (400 x 250mm)
Length
90.6″ (2300mm)
Width
114″ (2900mm)
Height
98.4″ (2500mm)
Bed Height
29.5″ (750mm)
Net Weight
2,640 lbs (1200 kg)
Shipping Weight
3,300 lbs (1500 kg)
