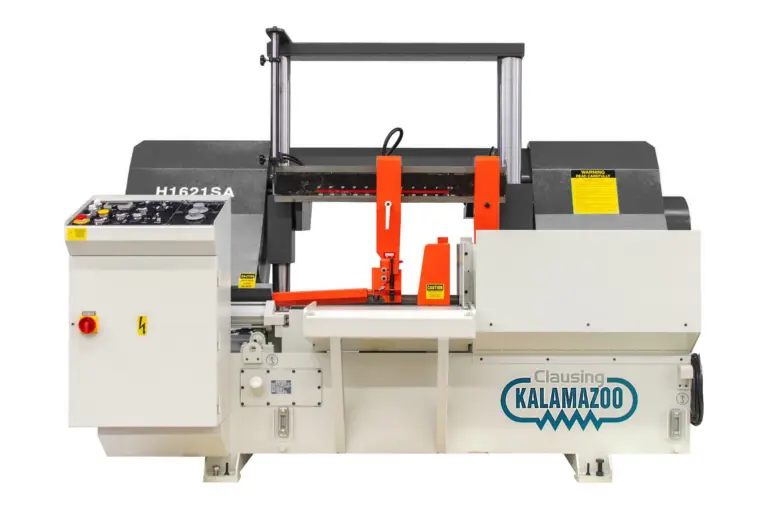

Clausing Kalamazoo 16.5″ x 21.6″ Semi-Automatic Horizontal Saw, Model H1621SA – NEW
Standard Features…
Twin column design insures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
Infinitely variable blade speed
Digital blade speed indicator
Carbide blade guides with roller bearings
Two additional guides to support the blade from the top
Automatic hydraulic blade tensioning
Power driven blade brushes
Integral coolant system
LCD digital blade speed monitor
Precision feed pressure & feed rate
Cast iron vises with replaceable hardened wear plates
Discharge table with built-in coolant return
Blade slippage or breakage detection
Additional flushing hose
Bi-metal saw blade
Built in work light
Tool box, leveling pads, and an additional wire brush
Operation & parts manual
Two (2) year limited warranty
Motor
7.5 Hp (5.5 kw), 230/460v 3ph*
Hydraulic Pump Motor
2 Hp (1.5 kw)
Hydraulic Oil Capacity
8.75 gallons (35 liters)
Blade Speeds (Variable speed)
66-328 fpm (20-100 m/min)
Blade Size (W x T x L)
1.6″ x .050″ x 208.7″ (41 x 1.3 x 5300mm)
Blade Tension
Hydraulic
Coolant
Recirculating
Coolant Capacity
23.75 gallons (95 liters)
90° Cutting Capacity
Round
16.5″ (420mm)
Square
16.5″ (420mm)
Rectangular
16.5″ x 21.6″ (420 x 550mm)
Length
43.3″ (1100mm)
Width
100.4 ” (2500mm)
Height
74.8 ” (1900mm)
Bed Height
27.5″ (700mm)
Net Weight
3,960 lbs (1800 kg)
Shipping Weight
5,060 lbs (2300 kg)
