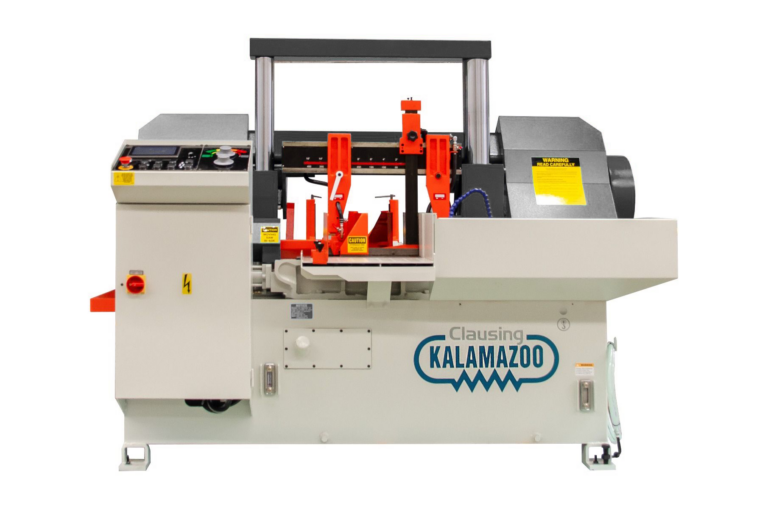

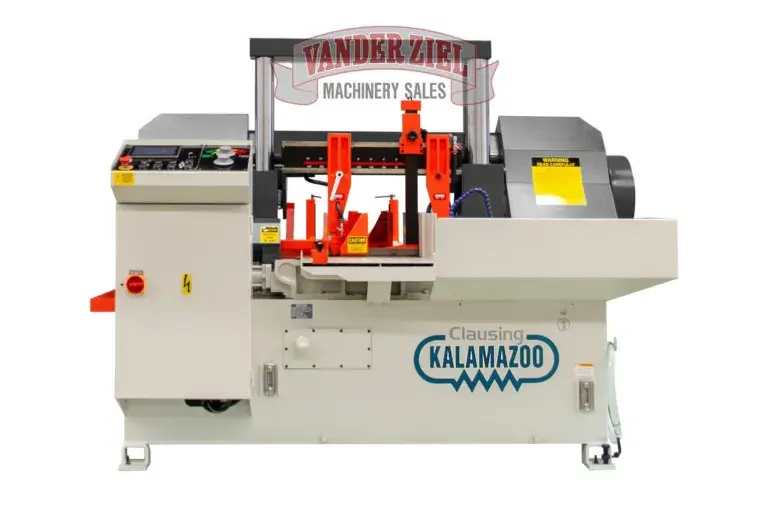

Clausing Kalamazoo 15″ x 12.6″ Automatic NC Twin Column Horizontal Saw, Model H1315NC – NEW
Standard Features…
Oversized hydraulic cylinder
Twin column design ensures rigid support during cutting cycle
Hydraulic shuttle vice assembly
Inverter controlled infinitely variable speed
Carbide blade guides with roller bearings
Two additional guides to support the blade from the top
Automatic hydraulic blade tensioning
Power driven blade brushes
Integral coolant system
Smart NC-100 technology programmable up to 100 different jobs
Easy recal and execution of stored parts
Automatic shutoff after preset number of cuts or when out of stock
5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
Automatic kerf loss compensation & computer controlled multiple indexing
Precision feed pressure & feed rate
Bundle/single cutting mode switch
Automatic height setting feature
Hydraulic front and rear vises
Cast iron vises with replaceable hardened wear plates
Discharge table with built-in coolant return
Blade slippage or breakage detection
Adjustable cut-off stock fence
Additional flushing hose
Bi-metal saw blade
Built in work light
Tool box, leveling pads, and an additional wire brush
Operation & parts manual
Two (2) year limited warranty
Motor
5 Hp (3.75 kw), 230/460v 3ph*
Hydraulic Pump Motor
1 Hp (.75 kw)
Hydraulic Oil Capacity
6.6 gallons (25 liters)
Blade Speeds (Variable speed)
66-330 fpm (20-100 m/min)
Blade Size (W x T x L)
1.3″ x .042 “x 184” (34 x 1.1 x 4240mm)
Blade Tension
Hydraulic
Coolant
Recirculating
Coolant Capacity
11.9 gallons (45 liters)
90° Cutting Capacity
Round
12.6″ (320mm)
Square
12.6″ (320mm)
Rectangular
15″ x 12.6″ (380 x 320mm)
**Bundle Cutting Width
7.48″ to 11.81″ (190 to 300mm)
**Bundle Cutting Height
2.75″ to 5.51″ (70 to 140mm)
Feed Length/Index
15.86″ (403mm)
Max. Feed
255.9″ (6500mm)
Length
79.13″ (2010mm)
Width
78.75″ (2000mm)
Height
70.3″ (1785mm)
Bed Height
31.1″ (790mm)
Net Weight
4,409 lbs (2000 kg)
Shipping Weight
4,850 lbs (2200 kg)
