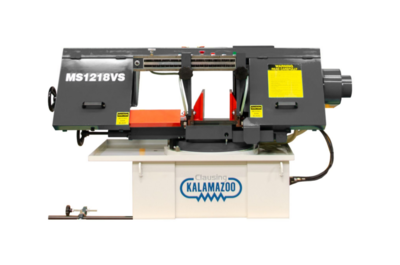

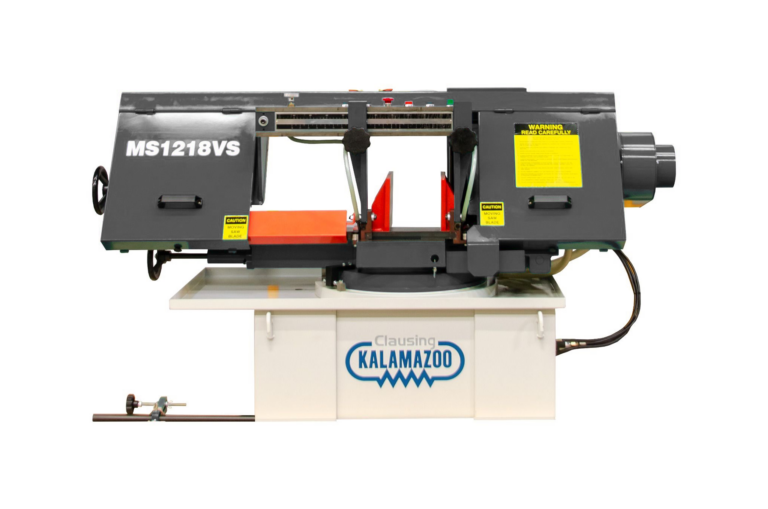

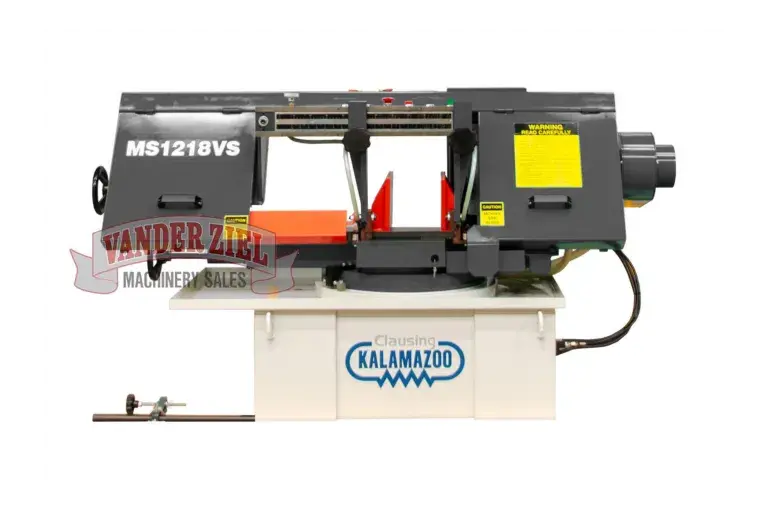

Clausing Kalamazoo 18.5″ x 10.6″ Semi-Automatic Swivel Horizontal Saw, Model MS1318SA – NEW
13″ (330mm) Semi-Automatic Miter Bandsaw
Standard Features…
Advanced hydraulic system provides dependable power for powered clamping and raising the saw head at end of cut
Full stroke machine vise for tight clamping of any material from operator’s panel
Operator’s panel pivots allowing operator to control saw from the rear of the machine
Swivel sawhead allows the operator to accurately pivot head for angle cuts from 0°, for a 90° cut, to 60°
Carbide blade guides provide excellent stability for the saw blade
Variable blade speed
Power chip brush removes chips from the blade extending blade life
Integrated coolant system
Cast iron moveable guide arms provide rigidity and stability for an accurate cut
Flushing hose
Adjustable work stop
Tool box with tools
Manual & parts list
Two (2) year limited warranty
Drive Motor
3 Hp (2.2kw)
Hydraulic Motor
.25 Hp (.19kw)
Hydraulic Oil Capacity
2 gallons (7.5 liters)
Coolant Motor
.125 Hp (.1kw)
Coolant Capacity
7.8 gallons (7.5 liters)
Blade Speeds (Inf. Variable)
102-377 fpm (31-115 m/min)
Blade Size
1″ x .035″ x 13′-7″
(25 x .9 x 4150mm)
Swivel Angle Range
0° to 60°
Cutting Capacity
Round @ 90°
13″ (330mm)
Round @ 45°
11.5″ (292mm)
Round @ 60°
8.7″ (220mm)
Square @ 90°
10.6″ (270mm)
Square @ 45°
10.5″ (268mm)
Square @ 60°
8.7″ (221mm)
Rectangular @ 90°
18.5″ x 10.6″ (470 x 269mm)
Rectangular @ 45°
10.5″ x 10.5″ (268 x 268mm)
Rectangular @ 60°
8.7″ x 8.7″ (220 x 220mm)
Bed Height
33″ (838mm)
Dimensions:
Length
75″ (1905mm)
Width
34″ (863mm)
Height
55.5″ (1410mm)
Net Weight
1,400 lbs (635kg)
Shipping Weight
1,850 lbs (839kg)
