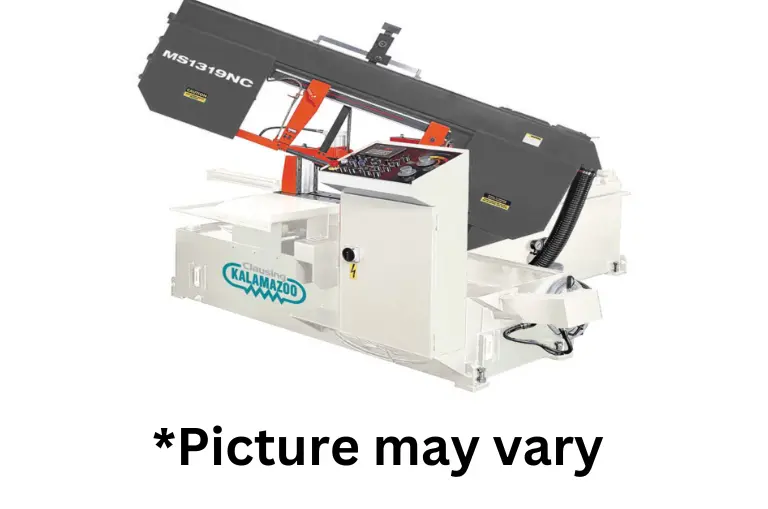

NEW CLAUSING MS1319NC

Clausing Kalamazoo 10.43″ x 10.43″ Automatic NC Swivel Horizontal Saw, Model MS1319NC – NEW

Standard Features…
The swivel saw head allows cutting at any angle between 90° (straight cut) and 45° (miter cut)
Precision pivot system facilitates easy and accurate adjustment for angle cuts
Inverter controlled infinitely variable speed
Carbide blade guides with roller bearings
Two additional guides to support the blade from the top
Automatic hydraulic blade tensioning
Power driven blade brushes
Integral coolant system
Smart NC-100 technology programmable up to 100 different jobs
Easy recal and execution of stored parts
Automatic shutoff after preset number of cuts or when out of stock
5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
Automatic kerf loss compensation & computer controlled multiple indexing
Precision feed pressure & feed rate
Automatic height setting feature
Hydraulic front and rear vises
Cast iron vises with replaceable hardened wear plates
Computer controlled multiple indexing
Discharge table with built-in coolant return
Blade slippage or breakage detection
Additional flushing hose
Bi-metal saw blade
Built in work light
Tool box, leveling pads, and an additional wire brush
Operation & parts manual
Two (2) year limited warranty
Motor
5 Hp (3.75 kw), 230/460v 3ph*
Hydraulic Pump Motor
1 Hp (.75 kw)
Hydraulic Oil Capacity
10.4 gallons (40 liters)
Blade Speeds (Variable speed)
66-330 fpm (20-100 m/min)
Blade Size (W x T x L)
1.3″ x .042″ x 184″ (34 x 1.1 x 4670mm)
Blade Tension
Hydraulic
Coolant
Recirculating
Coolant Capacity
14.3 gallons (55 liters)
90° Cutting Capacity
  Round
13″ (330mm)
  Rectangular
11″ x 19.68″ (280 x 500mm)
43° Cutting Capacity
  Round
11.5″ (290mm)
  Rectangular
10.43″ x 10.43″ (265 x 265mm)
Feed Length/Index
23.9″ (607mm)
Max. Feed
255.9″ (6500mm)
Length
114″ (2900mm)
Width
102″ (2600mm)
Height
86.6″ (2200mm)
Bed Height
28.3″ (720mm)
Net Weight
3,300 lbs (1500 kg)
Shipping Weight
3,745 lbs (1700 kg)
