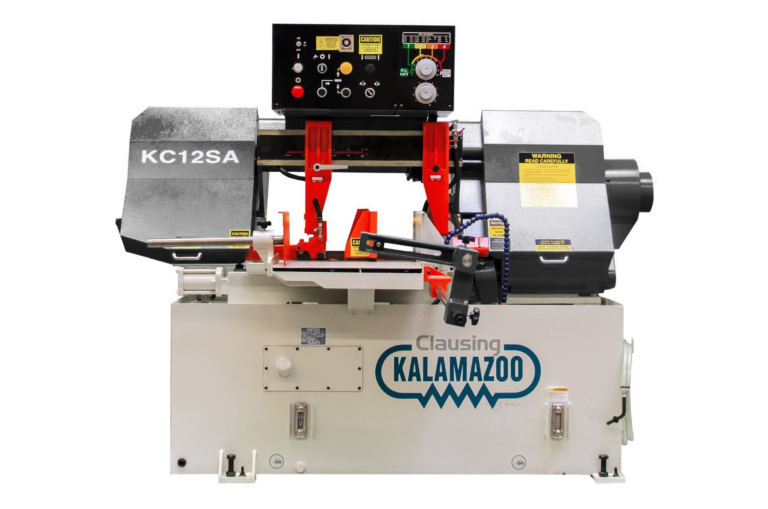

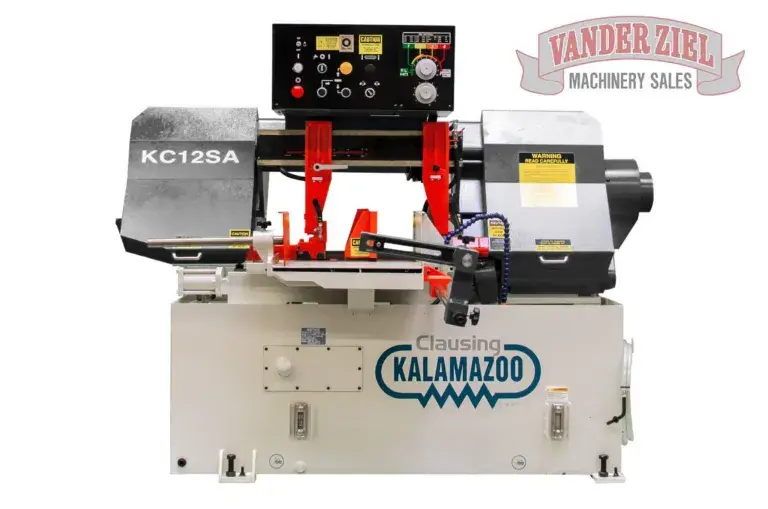

Clausing Kalamazoo 12.75″ x 12.6″ Semi-Automatic Horizontal Saw, Model KC12SA – NEW
Standard Features…
5 Hp 230/460v 3 ph drive motor
Semi-automatic operation
Infinitely variable blade speeds
LED blade speed readout
Vise clamps work piece both sides of blade
Powered hydraulic down feed
Automatic height setting feature
Auto shutoff at end of cuts
Blade breakage/stoppage switch
110v control circuit
Overload protection
Recirculating coolant system
(1) general purpose bi-metal blade
(1) gallon coolant
Flushing hose for cleanup
Operator’s manual
Two (2) year limited warranty
Motor
5 Hp (3.75 kw), 230/460v 3ph*
Hydraulic Pump Motor
1 Hp (.75 kw)
Hydraulic Oil Capacity
6.5 gallons (25 liters)
Band Wheel Dia.
16″ (406mm)
Blade Speeds (Variable speed)
95-395 fpm (30-120 m/min)
Blade Size
1.25″x.042″x12′-6″ (32x1x3810mm)
Coolant
Recirculating
Coolant Capacity
10 gallons (39 liters)
90° Cutting Capacity
Round
12.75″ (325 mm)
Rectangular
12.75″ x 12.6″ (325 x 320mm)
7.9″ x 14.2″ (200 x 360mm)
**Bundle Cutting Width
6.5″ to 10″ (165 to 254mm)
**Bundle Cutting Height
2″ to 8″ (51 to 203mm)
Length
32″ (812 mm)
Width
75″ (1905 mm)
Height (head-down)
57″ (1449 mm)
Height (head-up)
67″ (1702 mm)
Bed Height
26″ (660 mm)
Net Weight
1,540 lbs (698 kg)
Shipping Weight
1,760 lbs (798 kg)
*Other voltages optional.
