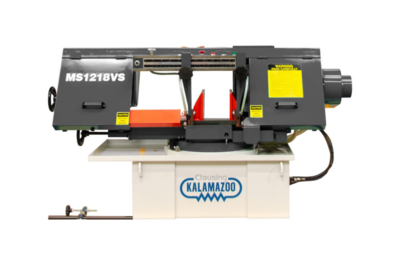

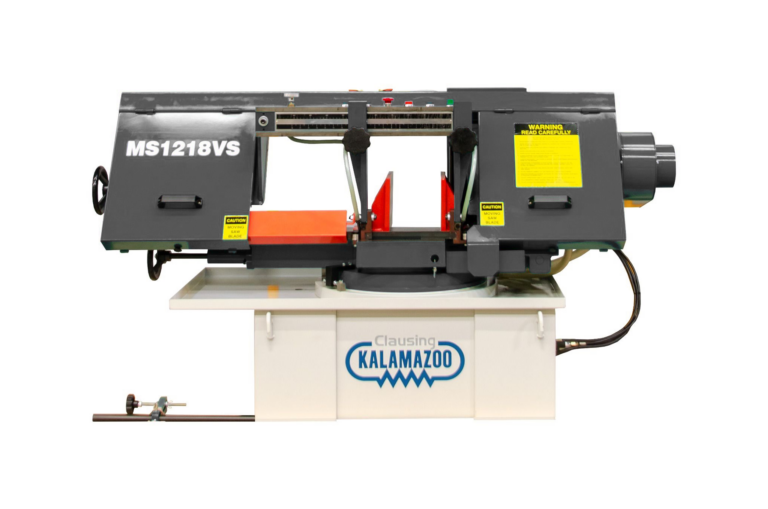

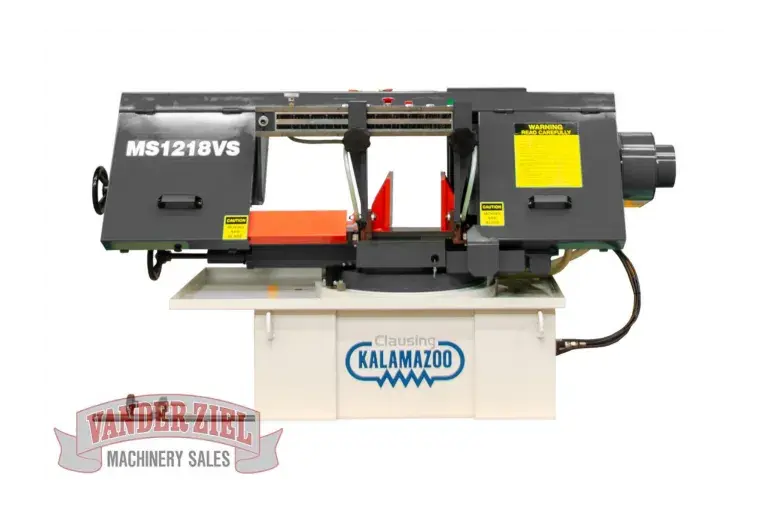

Clausing Kalamazoo 10″ x 16″ Wet Semi-Automatic Horizontal Saw, Model MS1218VS
Standard Features…
0°-45° Miter cutting, make angle cuts without swinging material to be cut
2 Hp (1.5kw) main drive with magnetic starter and overload protection
Variable speed drive
230/460v 60 cycle 3 phase electricals
Recirculating coolant system with application through both guides
Solid carbide blade guides with rollers
Quick position vise
Automatic shut-off at end of cut
Totally enclosed transmission
Blade cleaning brush
Cast iron bed
1″ (254mm) wide blade
Stock stop
Easily adjusted head feed with power lift
Two (2) year limited warranty
Drive Motor
2 Hp (1.5kw) 230/460v 3 phase
Hydraulic Motor
0.25 Hp (.19kw)
Coolant Pump
0.125 Hp (.1kw)
Band Wheel Dia.
15.4″ (391mm)
Blade Size
1″ x .035″ x 11′-4.5″
(25 x .9 x 3467mm)
Bed Height
21.75″ (552mm)
Vise Opening
18″ (457mm)
Blade Speeds
80-360 fpm (24-110 m/min)
variable speed
90° Cutting Capacity
Round
12″ (305mm)
Square
10″ x 10″ (254 x 254mm)
Rectangular
10″ x 16″ (254 x 406mm)
45° Cutting Capacity
Round
8″ (203mm)
Square
8″ x 8″ (203 x 203mm)
Rectangular
8″ x 12″ (203 x 305mm)
Width
75″ (1905mm)
Depth/with stock stop
34″/49.5″ (864/1257)mm)
Height (head-up)
64″ (1626mm)
Height (head-down)
41″ (1041mm)
Net Weight
880 lbs (400kg)
Shipping Weight
1,100 lbs (500kg)
