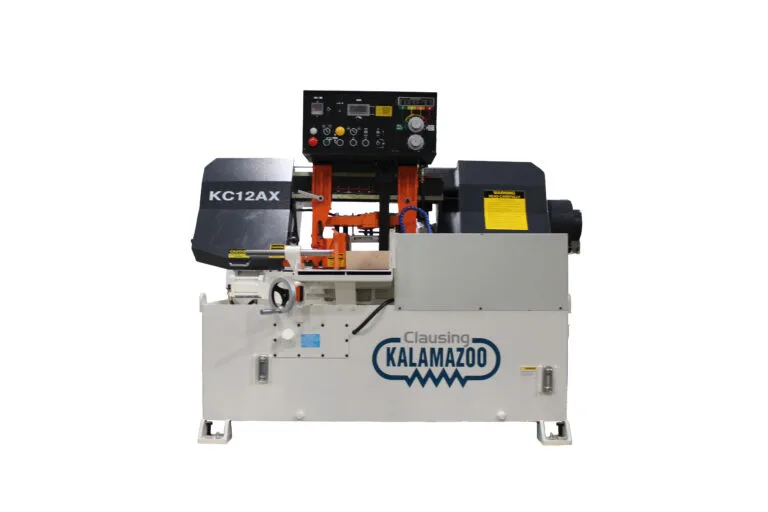

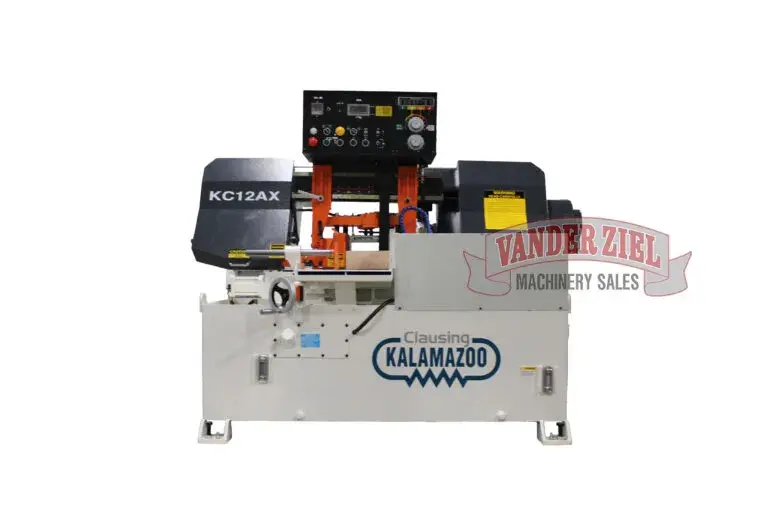

Clausing Kalamazoo 12.75″ x 12.6″ Semi-Automatic Horizontal Saw, Model KC12AX – NEW
Standard Features…
Full or semi-automatic operation
Infinitely variable blade speeds
LED blade speed readout
Vise clamps work piece both sides of blade
Hydraulic down feed
Automatic height setting feature
Auto shutoff at end of material or after preset number of cuts
Front-mounted digital length gauge
Blade breakage/stoppage switch
110v control circuit
Overload protection
Recirculating coolant system
Shuttle vise
(1) General purpose bi-metal blade
Flushing hose for cleanup
Operator’s manual
Two (2) year limited warranty
Motor
5 Hp (3.75 kw), 230/460v 3ph*
Hydraulic Pump Motor
1 Hp (.75 kw)
Hydraulic Oil Capacity
6.5 gallons (25 liters)
Band Wheel Dia.
16″ (406mm)
Blade Speeds (Variable speed)
95-395 fpm (30-120 m/min)
Blade Size
1.25″x.042″x12′-6″ (32x1x3810mm)
Coolant
Recirculating
Coolant Capacity
10 gallons (39 liters)
90° Cutting Capacity
Round
12.75″ (300 mm)
Rectangular
12.75″ x 12.6″ (300 x 320mm)
7.9″ x 14.2″ (200 x 360mm)
**Bundle Cutting Width
6.5″ to 10″ (165 to 254mm)
**Bundle Cutting Height
2″ to 8″ (51 to 203mm)
Feed Length/Index
15.75″ (400mm)
Max.Feed (9 times)
141.75″ (3600 mm)
Length
76.5″ (1943 mm)
Width
76.5″ (1943 mm)
Height (head-down)
57″ (1449 mm)
Height (head-up)
73″ (1854 mm)
Bed Height
26″ (660 mm)
Net Weight
3,090 lbs (1388 kg)
Shipping Weight
3,400 lbs (1542 kg)
*Other voltages optional.
