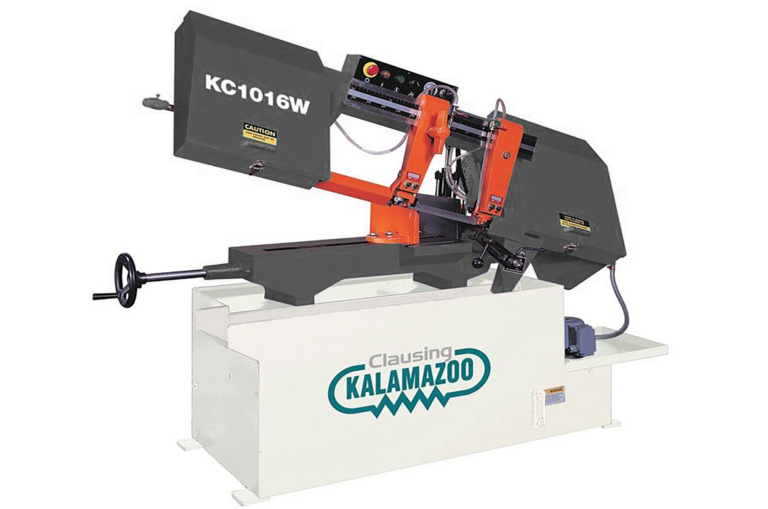

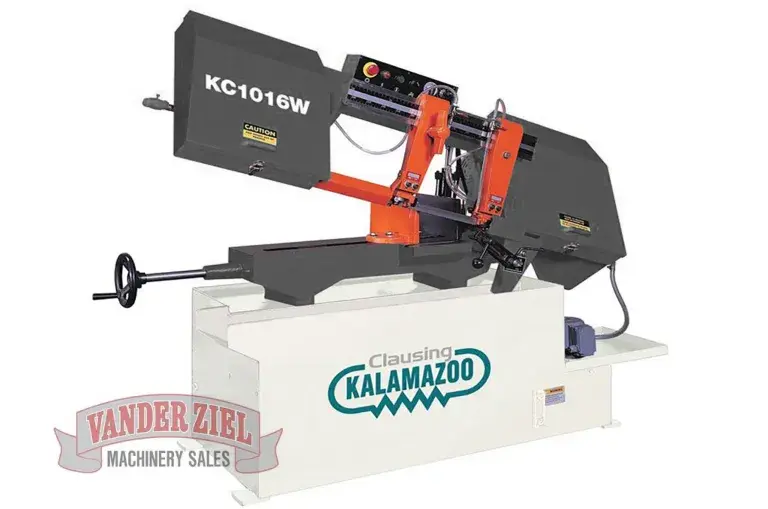

Clausing Kalamazoo 9″ x 14.5″ Wet Horizontal Saw, Model KC1016W – NEW
Standard Features…
2 Hp (1.5kw) drive motor 230v & 460v 3 Ph models and 1.5 Hp (1kw) drive motor on 110v & 220v 1 Ph models
4 speed step pulley with worm gear speed reducer, worm shaft is hardened and ground (model KC1016W)
Infinity Variable Speed drive (model KC1016VS)
Totally enclosed transmission
Heavy-duty hydraulic cylinder with precision ground hinge support
Pan shaped base with built-in coolant & hydraulic system
Cast iron bed
Carbide blade guides with roller bearings
Two additional bearings to support blade from the top
Recirculating coolant system with application through both guides
Blade brush
Valve controlled hydraulic cylinder controls feed and cutting rate and can be adjusted for different types and sizes of material
Adjustable stock stop
Simplified control switches mounted on saw head
Cast iron quick acting 0°- 45° vise with manual leadscrew clamping system
Anti-slip hand wheel
Easy blade change with front access at waist level
1″ wide bi-metal saw blade
Tool box, leveling pads and an additional wire brush
Operation & parts manual
Two (2) year limited warranty
Type
Horizontal wet cut
Motor KC1016W
1.5 Hp (1kw) 110v or 220v 1 Ph
4 Speed Drive
2 Hp (1.5kw) 230v or 460v 3 Ph
Motor KC1016VS
Variable Speed Drive
2 Hp (1.5kw) 230v or 460v 3 Ph
Band Wheel Diameter
15″ (381mm) Flanged, Cast Iron
Blade Size
1″ x .035″ x 11′ (27 x .9 x 3350mm)
Bed Height
25″ (650mm)
Blade Speeds Step
(4) 75, 121, 190, 305 fpm (23, 37, 58, 93 m/min)
Blade Speeds VS
50-295 fpm (15-90 m/min)
90° Cutting Capacity
Round
10″ (250mm)
Rectangular (H x W)
9″ x 14.5″ (230 x 368mm)
45° Cutting Capacity
Round
9″ (230mm)
Rectangular (H x W)
9″ x 9″ (230 x 230mm)
Width
64″ (1625mm)
Depth
42″ (1067mm)
Height (head-up)
69″ (1752mm)
Height (head-down)
41″ (1041mm)
Net Weight
800 lbs (363kg)
Shipping Weight
950 lbs (432kg)
Shipping Dim. (LxWxH)
67″ x 31″ x 48″ (1700 x 787 x 1220mm)
