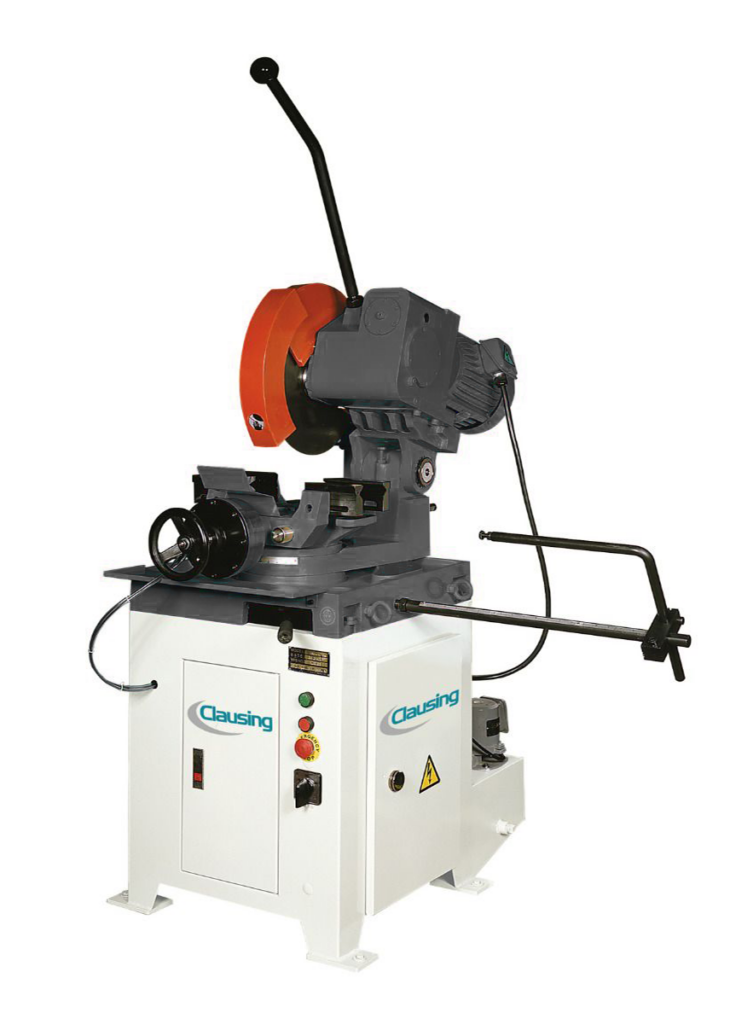

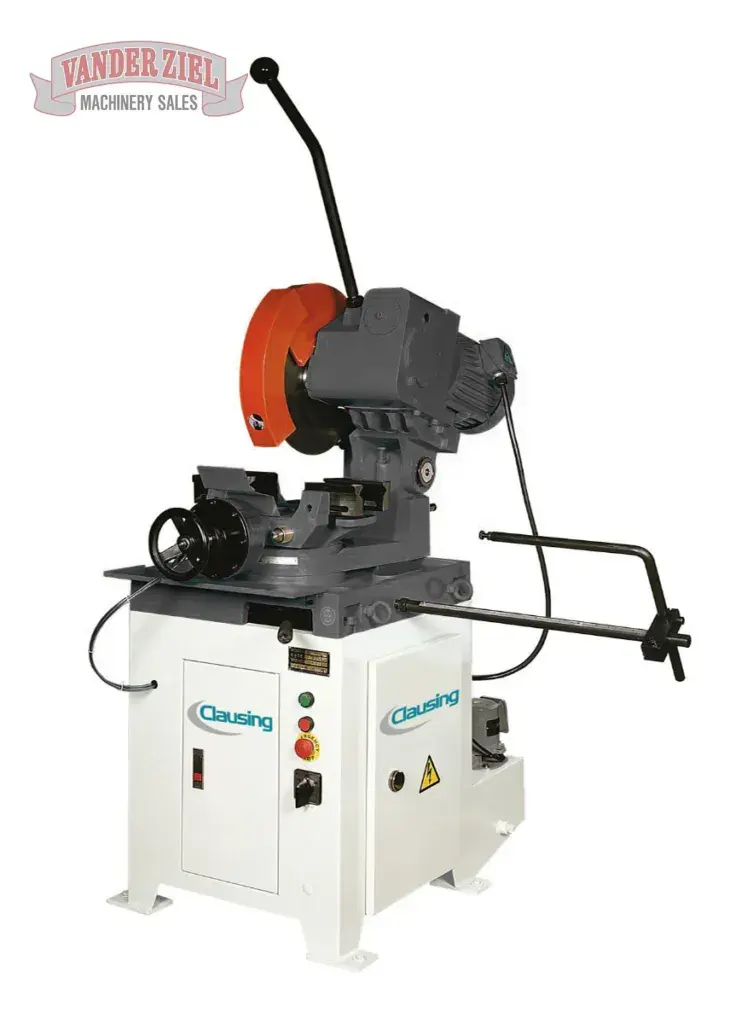

Clauisng Kalamazoo 14″ Manual Ferrous Cold Saw, Model FHC350D – NEW
Standard Features…
230v/460v/60/3 Electricals
Triger Operated On Off in Handle Grip
Totally Enclosed Fan-Cooled Motor
Enclosed Worm Gear Drive for Trouble-free Operation
Two Speeds for Versatility
Cast Iron Construction
Self-Centering Vise with Angle Scale
Head Rotates 45 Degrees Left and Right of Center
Flood Coolant System
Heavy Duty Sheet Metal Base
Adjustable Stock Stop
Tool Kit
Circular Saw Blade
Operation and Maintenance Manual
Two (2) Year Limited Warranty
Specifications
Model
FHC350D
Drive Motor
2/3 Hp (1.4/2.2kw)
Angles (left & right)
45°
Electricals
230v. or 460v. – 3ph
Control
110v.
Coolant
Standard
Spindle Speeds
26/52 rpm
Max. Blade Size
10-14″ (250-350mm)
Max. Vise Opening
6″ (152mm)
Recommended Cutting Capacity
Round tube @ 90°
4.33″ (110mm)
Round tube @ 45°
2.95″ (75mm)
Square tube @ 90°
4.33″ (110mm)
Square tube @ 45°
3.54″ (90mm)
Rectangular tube @ 90°
4.33″ x 3.54″ (110 x 90mm)
Rectangular tube @ 45°
4.33″ x 2″ (110 x 50mm)
Round solid @ 90°
2.36″ (60mm)
Round solid @ 45°
2″ (50mm)
Square solid @ 90°
2″ (50mm)
Square solid @ 45°
1.77″ (45mm)
Dimensions
Machine Dimensions LxWxH
55″ x 41″ x 75″ (1400 x 1050 x 1900mm)
Shipping Dimensions LxWxH
30″ x 42″ x 60″ (750 x 1060 x 1510mm)
Net Weight
660 lbs. (300kg)
Shipping Weight
792 lbs. (360kg)
