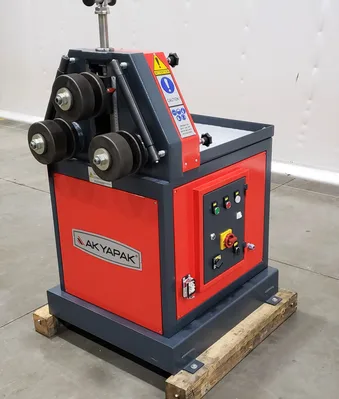

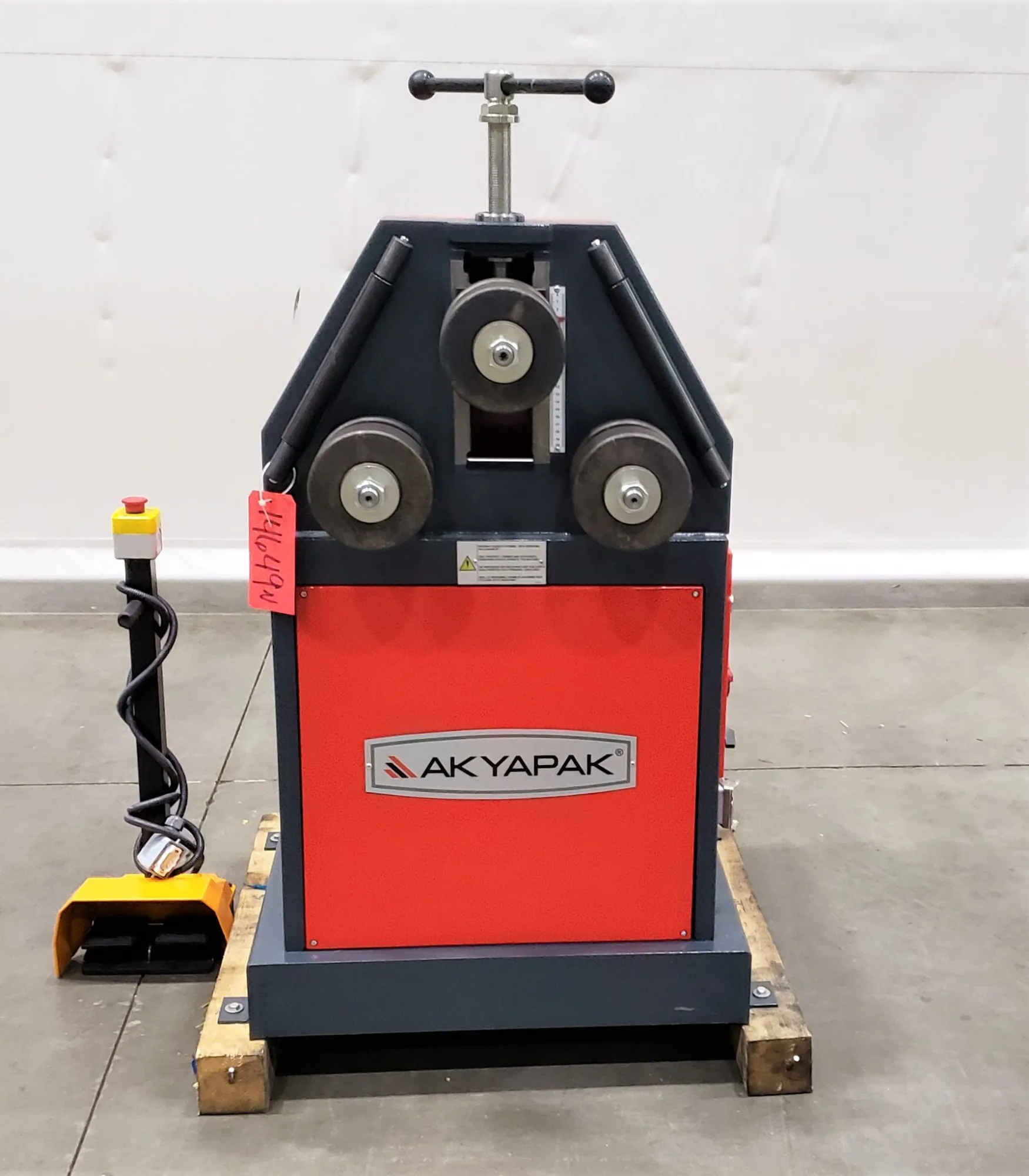

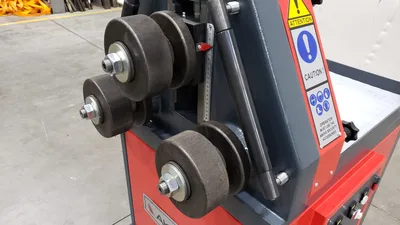

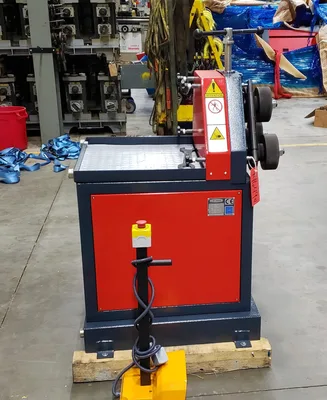

Akyapak APK 35 Angle Roll, Hardened Rolls, Guide Rolls – NEW

Serial #351750
Equipped With
APK 35 Angle Bending Roll
Machine body is steel (ST-52) construction
On APK35 rolls are driven by a hydraulic motor+planetry gearbox and gears
Shafts made of special steel, hardened and grounded
APK35 guide rolls are adjustable manually in one direction
One set standard rolls
Manual lubrication
Lower rolls hydraulic moveable up and down
Digital display for lower rolls

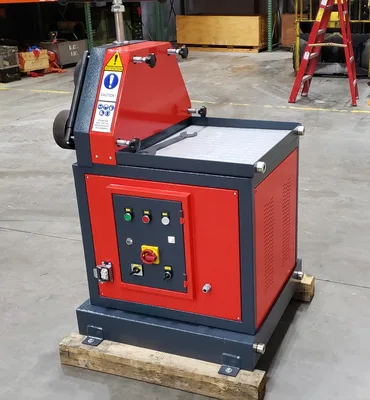

Separate and moveable control panel
Horizontal & vertical working
Suitable for CE
TECHNICAL DETAILS
Roll Diameter Ø                             inch          5.90”
Shaft Ø                                           inch          1.97”
Rolling Speed                                 ft/min       14’ per/min.
Motor Power                                  hp             1.5 kw
Length                                            Ft              2.7’
Height                                             Ft              4.9’
Width                                              Ft              4.4’
Weight                                            Ibs             705
Bend Type
Sizeinch
Diametermin Ø
Dies
Angle Leg Out
1-31/32 x 0.19685”
33.5”
BC
Angle Leg In
1-31/32 x 0.19685”
48”
BC
T Section Let Out
31/32”
25.9”
A
T Section Leg In
31/32”
35.4”
A
Flat, Hard Way
2.33” x 0.393”1 31/32” x .472”
31.5”
A
Flat, Easy Way
4-3/4” x 0.59”
29.5”
A
Square
1-3/8”.787”
48”15-3/4”
B
Round
1.38”
31.5”
A
Tube
2-3/4” x 0.0787”
48”
B
Pipe
1.3” x 0.104
9”
B
Rectangle Tube
1 31/32” x 1.57” x .118”
B
Square Tube
2.36” x .118”
B
Channel Easy WayLegs Out
UNP60
31.7”
B
Channel Easy WayLegs In
UNP60
27.6”
B
Explanation:
A: Standard Rolls
B: Special Rolls
C: Pulling Device
D: For bending without deformation
E: Angle Device
F: Stretching Device
