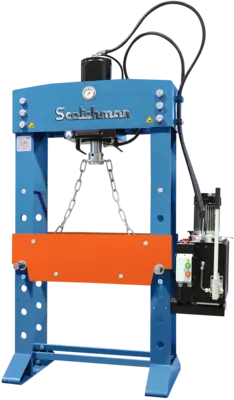

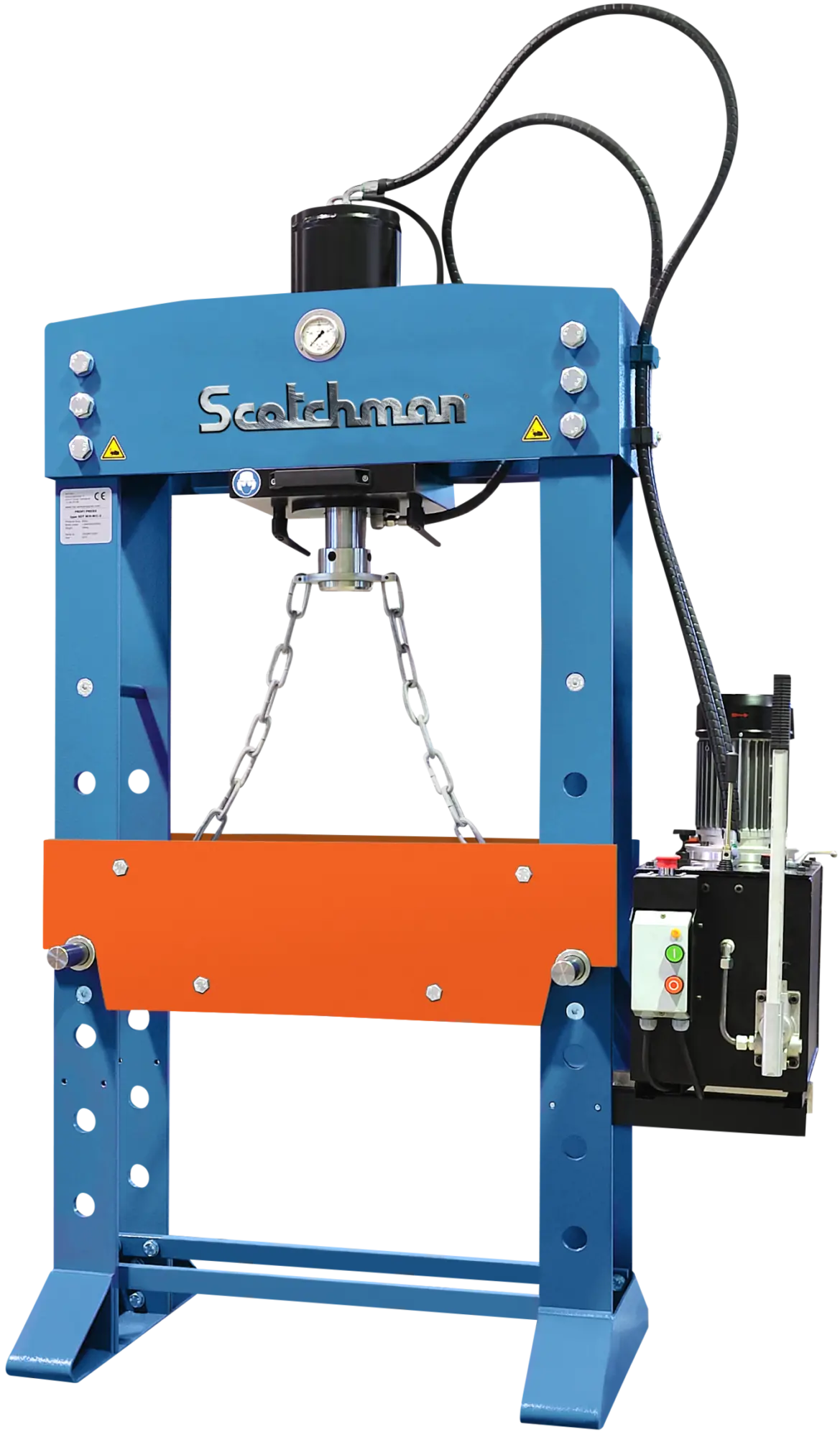

NEW SCOTCHMAN PROPRESS 66

Specifications:
Capacity 60 Tons
Motor 2 HP
RPM 3000
Ram Speed – Approach 20 ipm
Ram Speed – Press 4 ipm
Ram Speed – Return 25 ipm
Open Height, Minimum 7-3/4”
Open Height, Maximum 37 ¼”
Stroke 15”
Lateral Ram Slide Yes
Width Between Uprights 29 ½”
Width Between Table Channels 10 ¼”
Footprint 51 ¾” x 31 ¾”
Overall Height 81 ½”
Weight 1,266 lbs.
Preliminary Specifications – Subject to Verification
