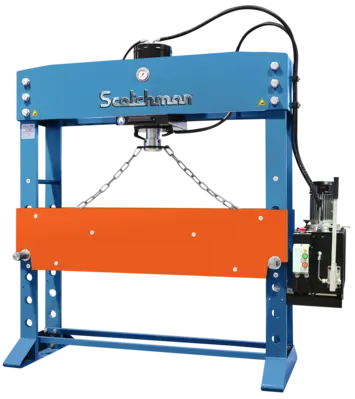

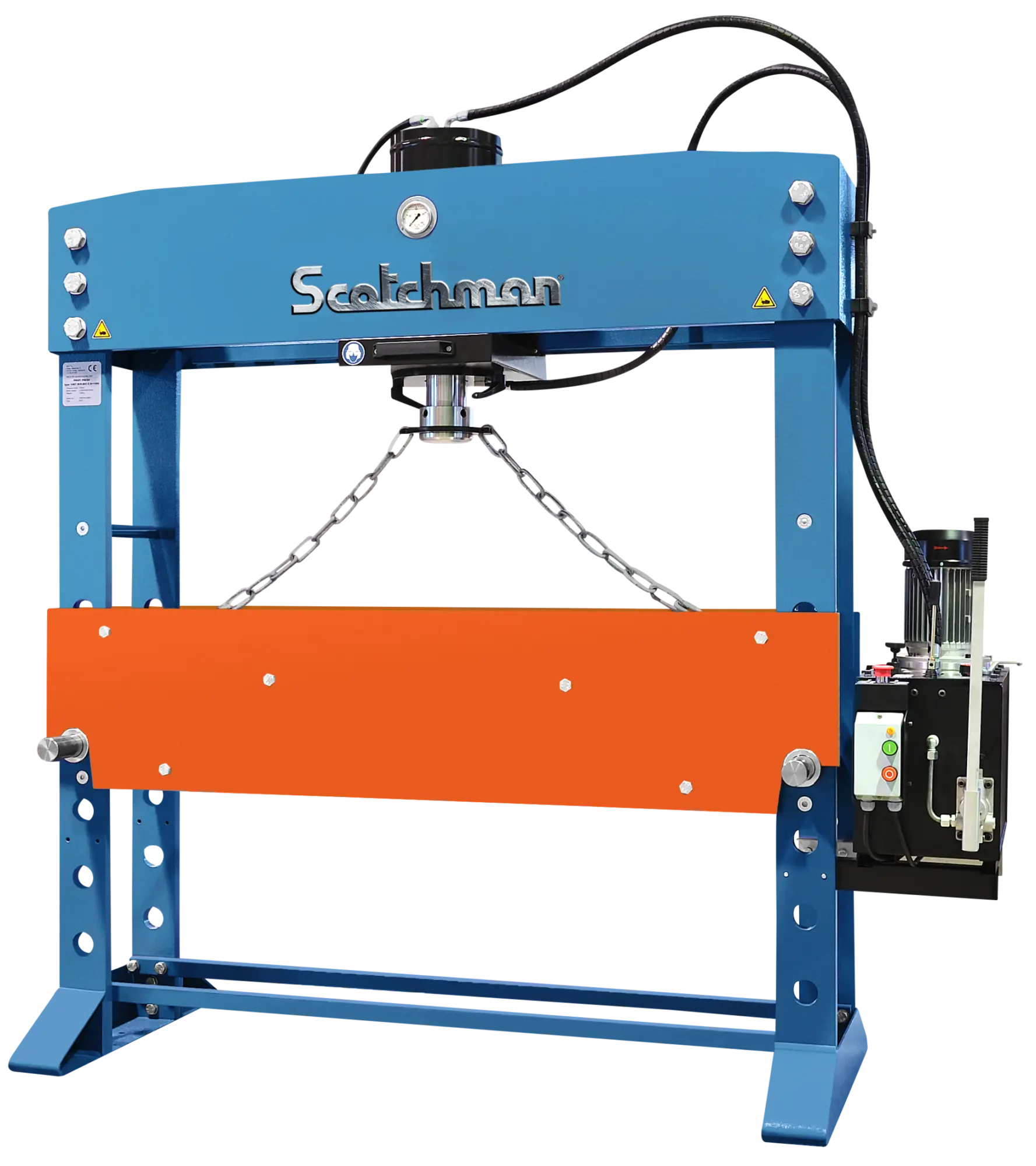

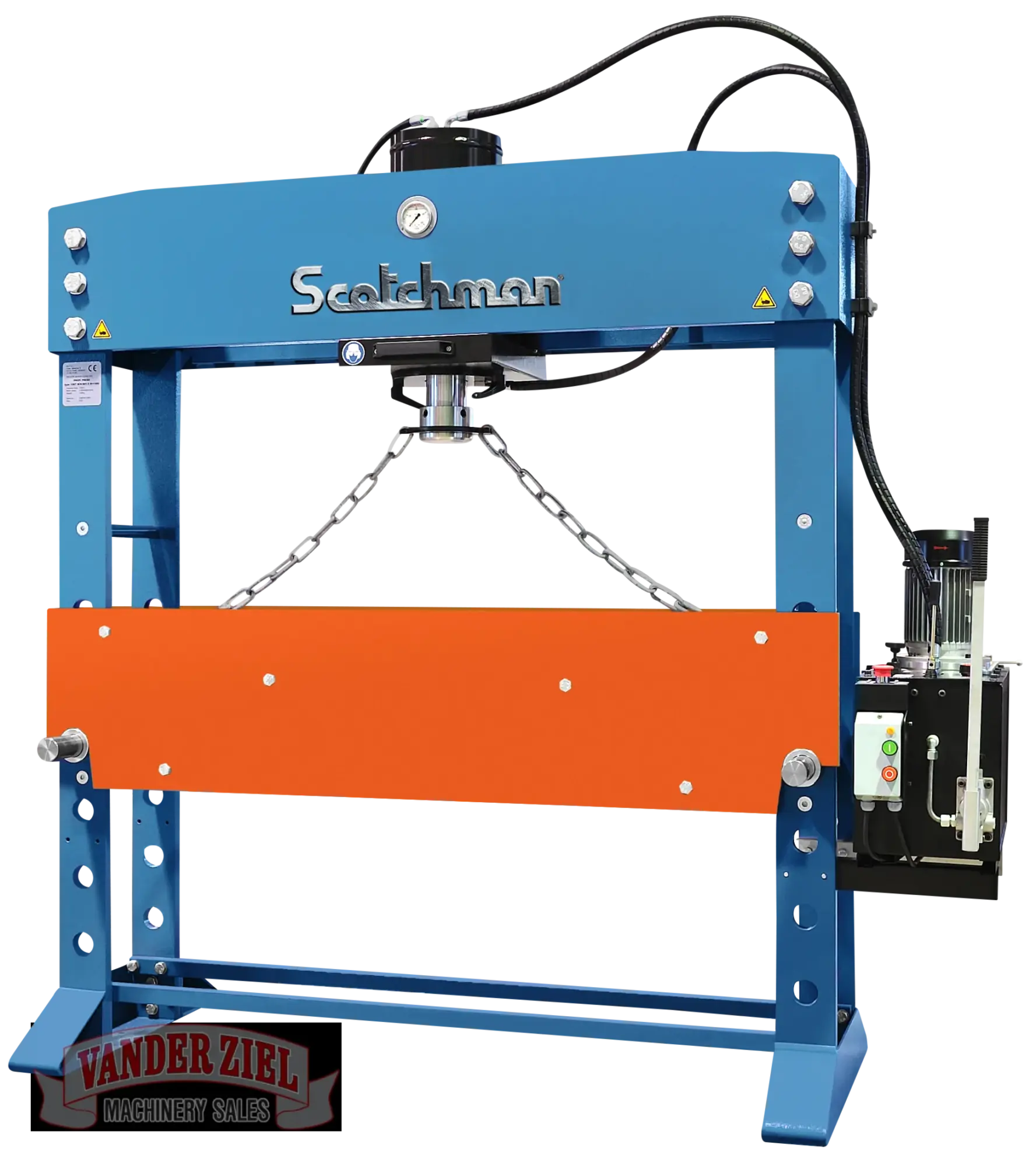

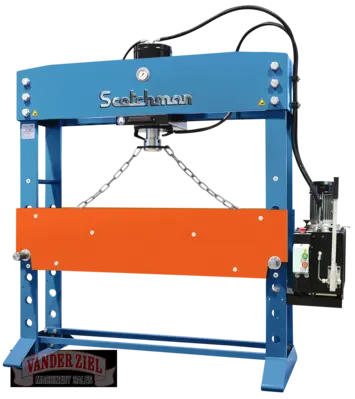

NEW SCOTCHMAN PROPRESS 176

Specifications:
Capacity 160 Tons
Motor 4 HP
RPM 3000
Ram Speed – Approach 17 ipm
Ram Speed – Press 5 ipm
Ram Speed – Return 22 ipm
Open Height, Minimum 7”
Open Height, Maximum 36 1/2”
Stroke 15 3/4”
Lateral Ram Slide Yes
Width Between Uprights 43 1/4”
Width Between Table Channels 15”
Footprint 68” x 37”
Overall Height 87”
Weight 2,873 lbs.
Preliminary Specifications – Subject to Verification
