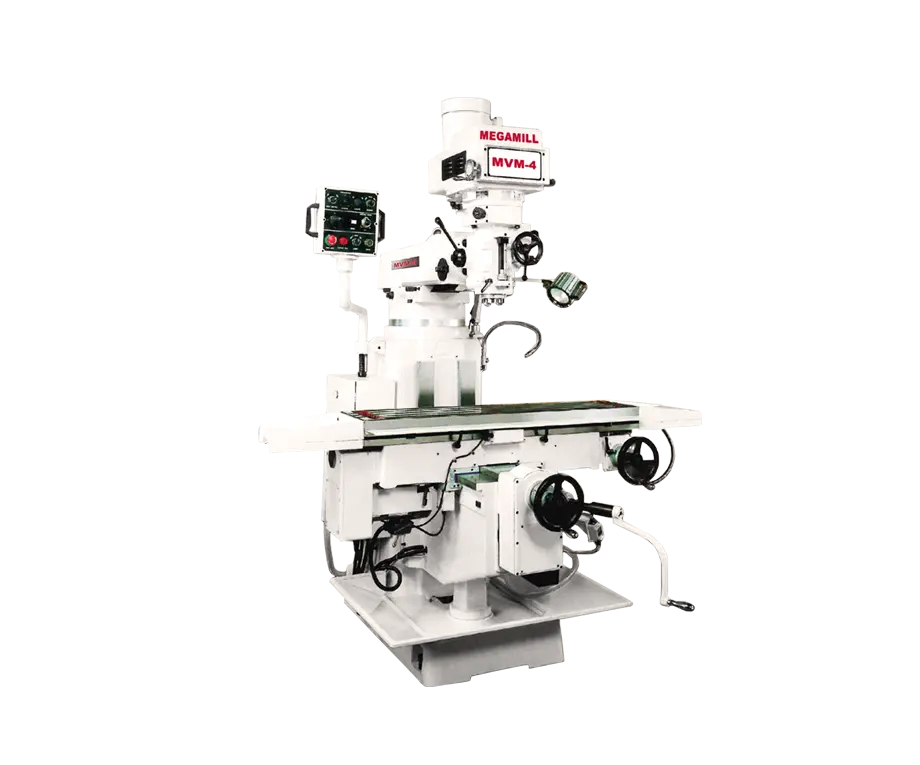

Lagun Mega Vertical Knee Mill, 11″ x 58″ Table, 5 HP – NEW

Lagun Mega Vertical Knee Mill, 11″ x 58″ Table, 5 HP – NEW

Specifications

Table
Table Size
58″ x 11″
T-Slots
3 on 2.51″ centers
T-Slot Size
0.629″
Maximum Weight Allowed on Table
1,200 lb
Travels
Table Travel X-axis
(manual & auto feed)
39.37″
Cross Travel Y-axis
(manual & auto feed)
15.35″
Knee Travel
15.75″
Ram Travel
20.08″
Ram Swivels
360°
Head
Main Motor
5 Hp
Head Swivel (left to right)
+/- 45°
Distance, Spindle to Coumn
5.5″ to 25.6”
Distance, Spindle to Table
3.3″ to 19″
Quill
Power Feed per Revolution
0.0015″     |     0.003″     |     0.006″
Spindle Taper
# 40 NST
Quill Diameter
4.13″
Quill Travel (manual) Z
5.00″
Machine Constructive Dimensions
Column Turret Diameter (Graduated)
14.96″
Knee Width
15.34″
Knee to Column Bearing Length
34.84″
Saddle & Table Bearing Length
40″
Ram & Turret Bearing Length
18.90″
Ram Length
40.63″
Physical
Weight
3,938 lb
Height
93.7″
Width
77.55″
Floor Space (width)
70.47″
Floor Space (depth)
83.46″
Full Power Knee
Variable Feeds, X & Y
147″ per minute
Rapid Traverse, X & Y
196″ per minute
Rapid Traverse, Z
16.93″ per minute
Feed & Rapid Drive, X & Y
1 Hp
Feed & Rapid Drive, Z
Gear 1 Hp
