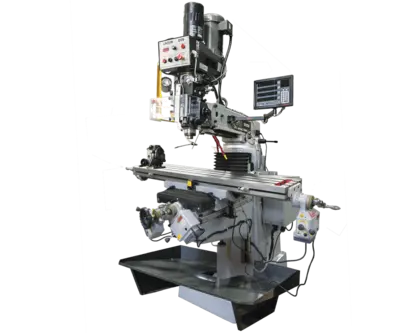

Lagun FTV-2F Vertical Knee Mill, 10″ x 55″ Table, 5 HP – NEW

Lagun FTV-2F Vertical Knee Mill, 10″ x 55″ Table, 5 HP – NEW

Table
Table Size
55.25″ x 10″
T-Slots
3 on 2.51″ centers
T-Slot Size
0.629″
Maximum Weight Allowed on Table
750 lb
(evenly distributed)
Travels
Table Travel (Manual)
37.99″
Table Travel (Power Feed)
34.64″
Cross Travel
15.98″
Knee Travel
15.98″
Ram Travel
22.44″
Head
Main Motor
5 Hp
Mechanical Infinite Mechanical
Variable Speed with (high-low)
Manual Settings
55 RPM to 4,250 RPM
Low (55 RPM to 490 RPM)
High (490 RPM to 4,250 RPM)
(Electronic Variable Speed – 0 RPM to 4,200 RPM)
Head Swivel
+/- 90°
Head Tilt
+/- 45°
Distance, Spindle to Coumn
5.00″ to 26.96”
Distance, Spindle to Table
up to 17.99”
Quill
Power Feed per Revolution
0.00157″     |     0.00314″     |     0.00511″
Spindle Taper
R-8 (Opt. #40 NST; #30 NST; or Universal Q.S. 200 or 300)
Quill Diameter
3.38″
Quill Travel
5.00″
Machine Constructive Dimensions
Column Turret Diameter (Graduated)
15.00″
Knee Width
11.49″
Knee to Column Bearing Length
17.99″
Saddle & Table Bearing Length
22.99″
Ram & Turret Bearing Length
19.01″
Ram Length
35.98″
Physical
Net Weight
2,854 lb
Height
103.93″
Width
66.92″
Depth
62.99″
Power, Dual Voltage Motors
230 V / 440 V
